Lunt White Light Solar Wedge
Safe White Light Views Of The Photosphere

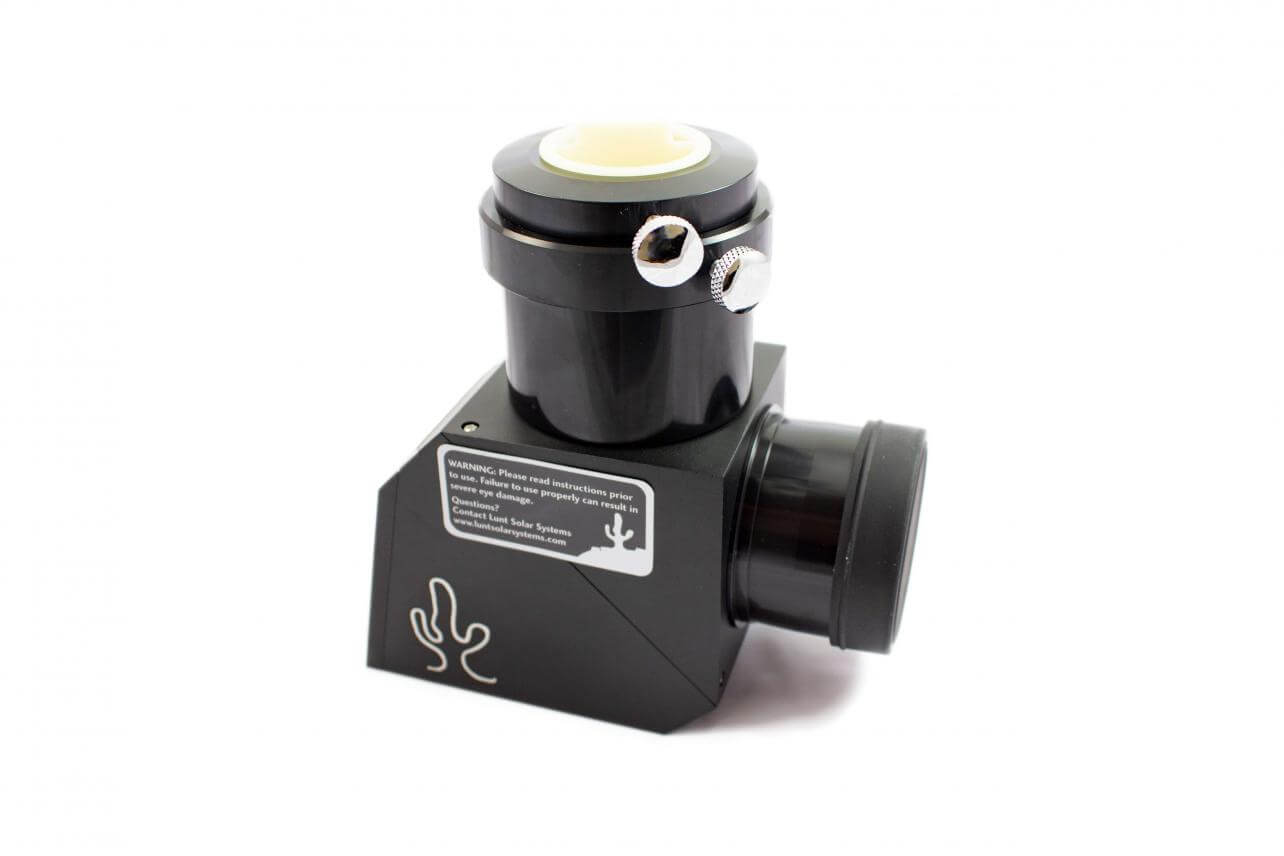

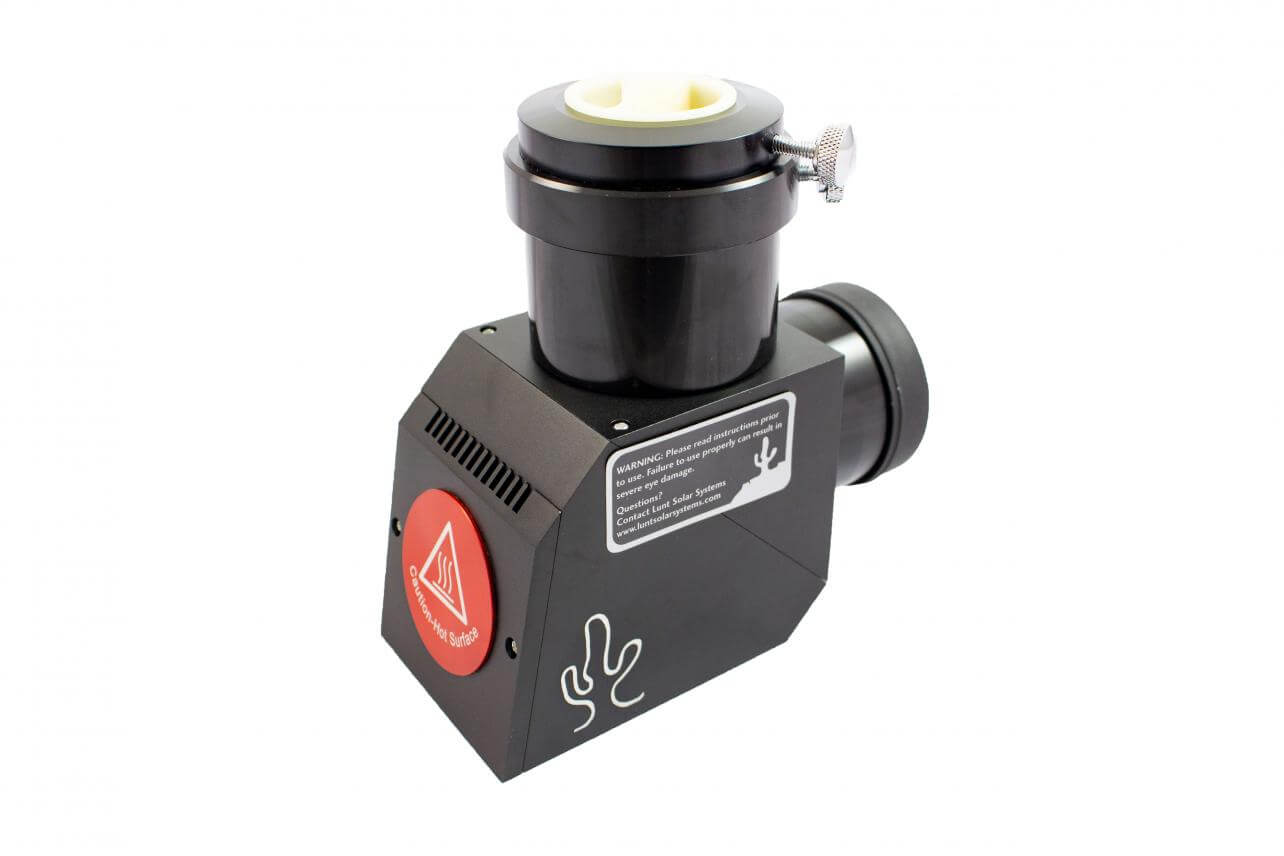

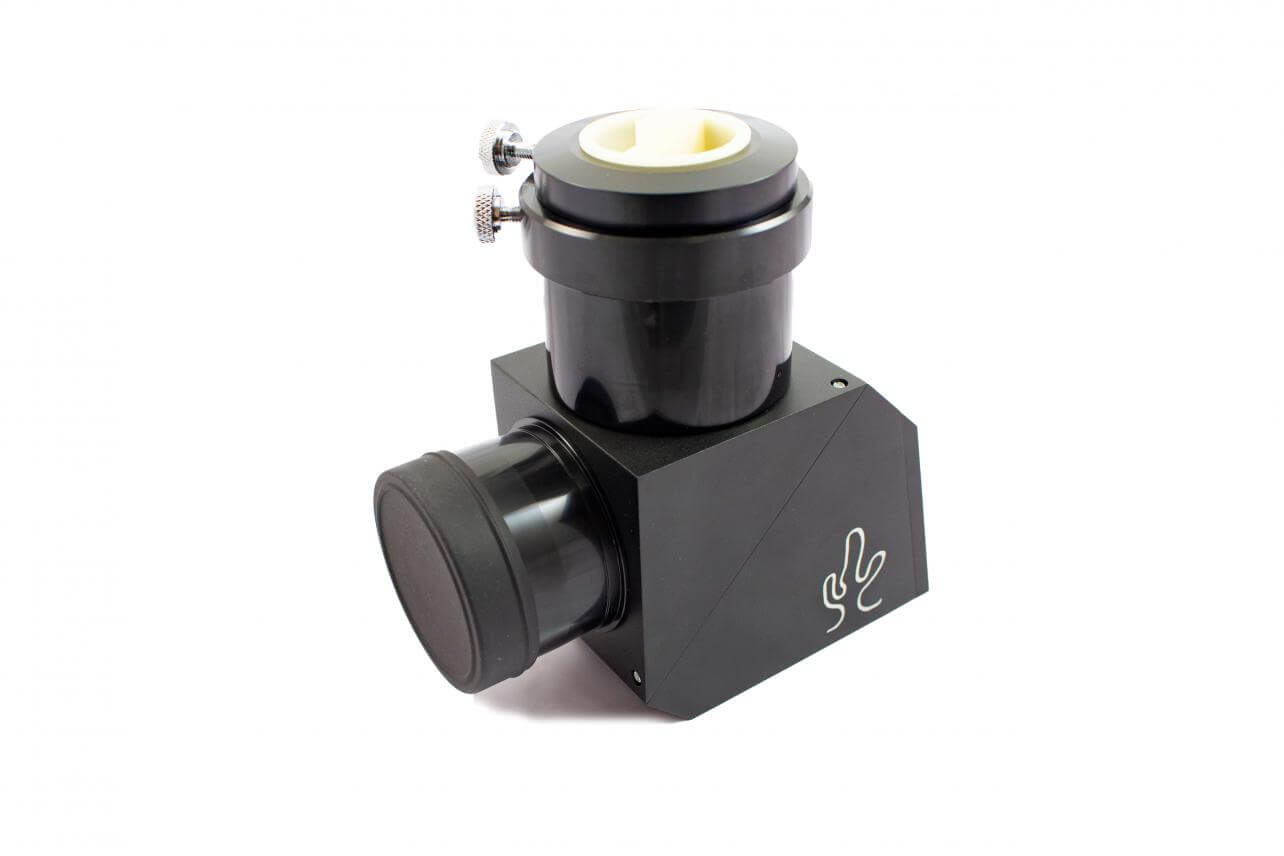

This white light solar wedge from Lunt is a Herschel design that diverts the vast majority of incoming sunlight out the back of the housing, sending only a small, safe fraction to your eyepiece. A built in ND3 filter completes the light reduction, so you get high contrast views of the photosphere, sunspots and granulation.
Use this wedge on refractors only. Never fit it to a catadioptric or reflecting telescope, where trapped heat can damage the instrument and injure you. The 1.25 inch model performs best on refractors up to 4 inches of aperture, and the 2 inch model performs best on refractors of 6 inches or less.
Each wedge ships with the ND3 filter pre installed, a carrying case and die cut foam with room for accessories. If you can reach focus with a standard star diagonal on your night time refractor, you will reach focus here too. Add a Lunt polarizing filter to dim the image further for comfortable visual observing.
Key Features
- Refractors Only - never mount this wedge on a catadioptric or reflecting telescope, as trapped heat can damage optics and cause injury.
- Built In ND3 - the neutral density 3 filter is installed at the factory, giving safe white light imaging and visual observing straight out of the box.
- Two Barrel Sizes - choose a 1.25 inch barrel for refractors up to 4 inches or a 2 inch barrel for refractors of 6 inches or less.
- High Contrast Detail - resolves sunspot umbra and penumbra plus surface granulation across the photosphere.
- Focus Compatible - reaches focus wherever a standard star diagonal does on the same refractor, so existing imaging trains carry over.
- Case Included - a carrying case with die cut foam holds the wedge and leaves room for eyepieces and filters.
| Specifications | |
|---|---|
| Type | Herschel wedge for white light solar observing |
| Model / SKU | LS1.25HW (1.25 inch), LS2HW (2 inch) |
| 1.25 inch model | 1.25 inch barrel and 1.25 inch eyepiece holder, best on refractors up to 4 inch aperture |
| 2 inch model | 2 inch barrel and 2 inch eyepiece holder, best on refractors 6 inch aperture or less |
| Built in filter | ND3 neutral density, pre installed |
| Telescope compatibility | Refractors only, never catadioptric or reflecting telescopes |
| Solar features shown | Photosphere, sunspots, granulation |
| Included in package | Wedge, ND3 filter, carrying case, die cut foam |
| Recommended accessory | Lunt polarizing filter, PF1.25 or PF-2, to dim the image for visual use |
| Focus travel | Matches a standard star diagonal on the same refractor |
| Optical coatings | Not published |
| Shipping weight | 4 lb per unit |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
