Lunt Vixen Style Dovetail Bar
Black Anodized Vixen Bars For Every Scope Length
This Vixen style dovetail bar from Lunt mates your solar telescope to any mount that accepts a Vixen style saddle. Each bar is machined from aluminum and finished in black anodizing, with four mounting holes tapped 1/4-20 so you can position the tube where it balances best on your mount.

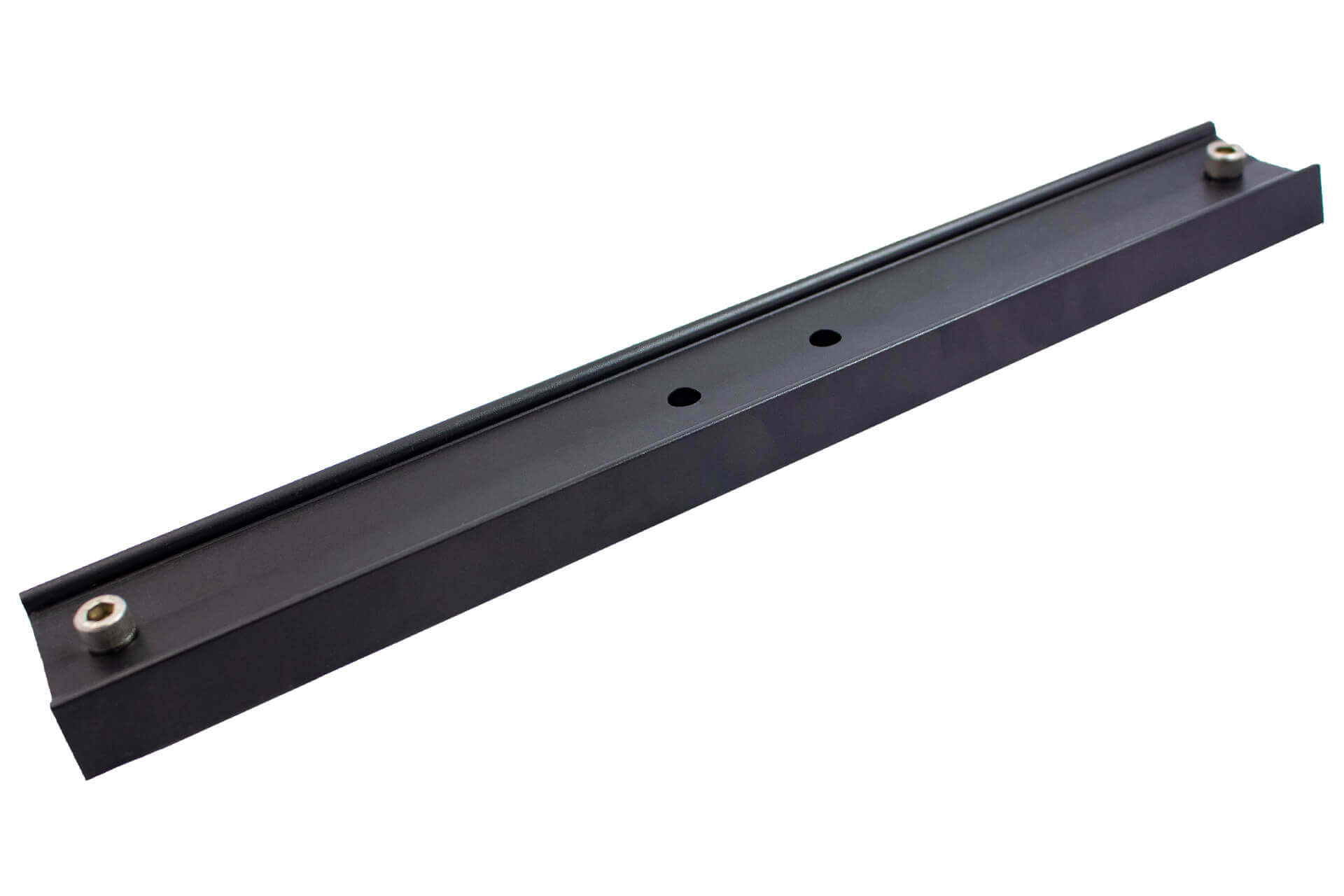

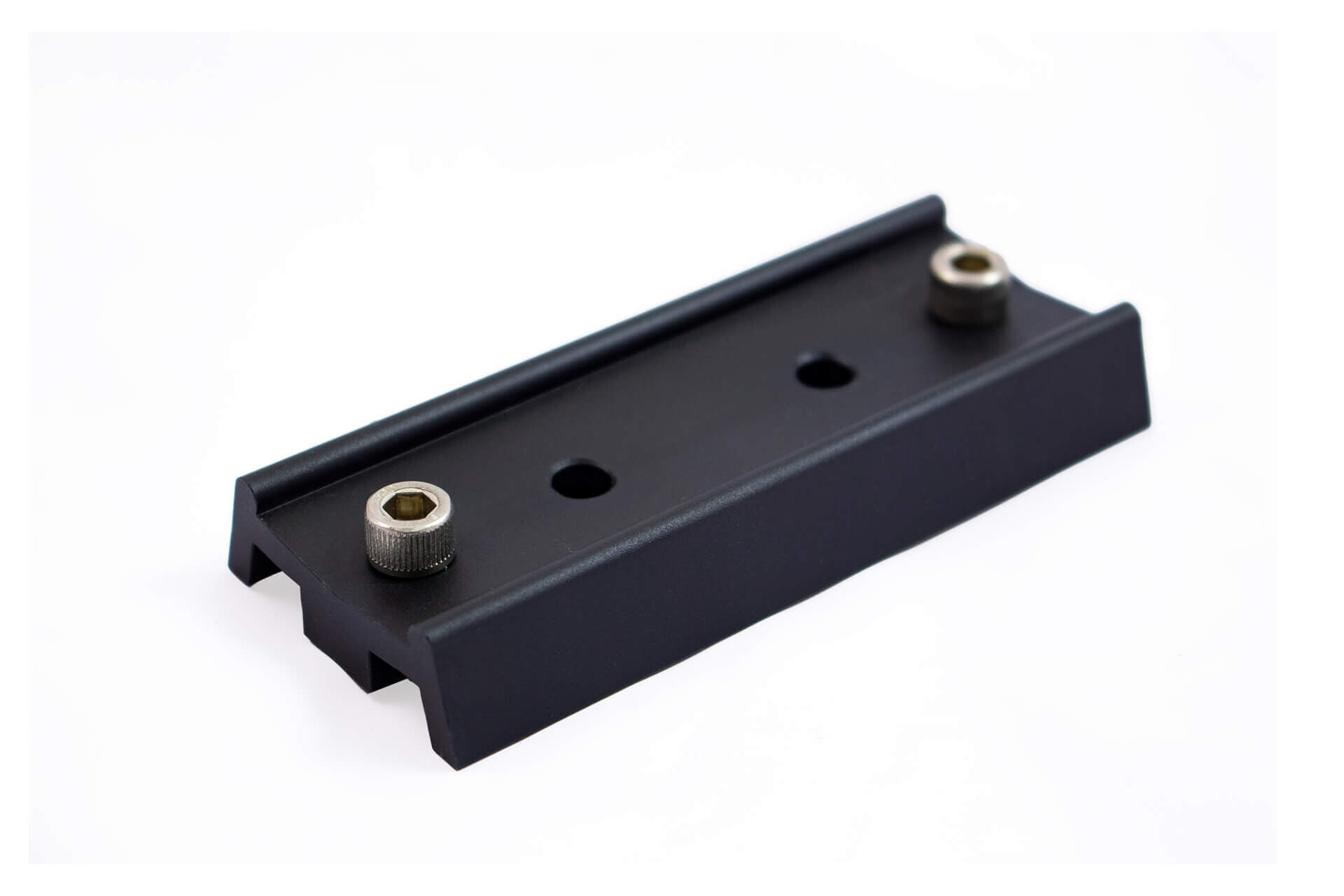

Three lengths are available. The 4 inch bar (LS100PS) measures 100 mm and suits compact tubes, the 6 inch bar (LS150PS) measures 150 mm for mid size scopes, and the 12 inch bar (LS300PS) measures 300 mm to give larger instruments a long sliding range for balance.
Two connecting screws are supplied with every bar. Lunt solar telescopes all use Vixen style mounting, so the bar drops straight onto standard equatorial and alt azimuth saddles. Fit the bar before you set up for the Sun, and keep proper solar filtration installed on the telescope for every observing session.
Key Features
- Three Lengths - 4 inch, 6 inch and 12 inch bars cover compact through large solar telescopes.
- Black Anodized Aluminum - a hard, low glare finish that resists scratching and corrosion in the field.
- Four Mounting Holes - 1/4-20 threads let you shift the tube fore and aft to balance the load.
- Screws Included - two connecting screws ship with every bar, so nothing extra is needed to attach it.
- Universal Vixen Fit - drops into any Vixen style saddle on equatorial or alt azimuth mounts.
- Lunt Compatible - every Lunt solar telescope uses Vixen style mounting, so the bars fit the full range.
| Specifications | |
|---|---|
| Type | Vixen style dovetail mounting bar |
| Model / SKU | LS100PS (4 inch), LS150PS (6 inch), LS300PS (12 inch) |
| LS100PS | 4 inch bar, 100 mm length |
| LS150PS | 6 inch bar, 150 mm length |
| LS300PS | 12 inch bar, 300 mm length |
| Material | Aluminum |
| Finish | Black anodized |
| Mounting holes | Four, tapped 1/4-20 |
| Hardware included | Two connecting screws |
| Saddle compatibility | Vixen style |
| Width and thickness | Not published |
| Shipping weight | 1 lb per bar |
| Manual | Not published |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
