Lunt Telescope Adapter
Connect Eyepieces And Blocking Filters With Confidence
Lunt builds two small machined adapters that solve the most common fit problems on a solar telescope back end. One steps a 2 inch blocking filter or focuser down to 1.25 inch, the other threads onto a T2 blocking filter so you can drop in 2 inch eyepieces. Both are metal bodied and both use a non marring brass compression ring.

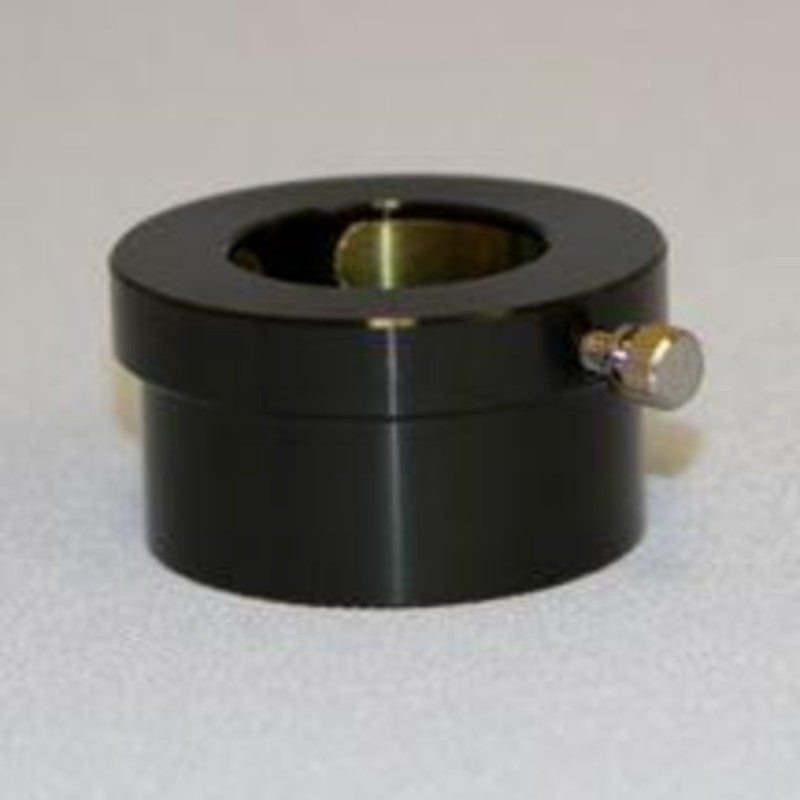

ADP2-1.25 is the part to reach for when you own a 2 inch Lunt blocking filter but want to observe with 1.25 inch eyepieces, and it works equally well as a general reducer inside any 2 inch diagonal or focuser. The brass ring grips the barrel evenly instead of digging a thumbscrew dimple into it.

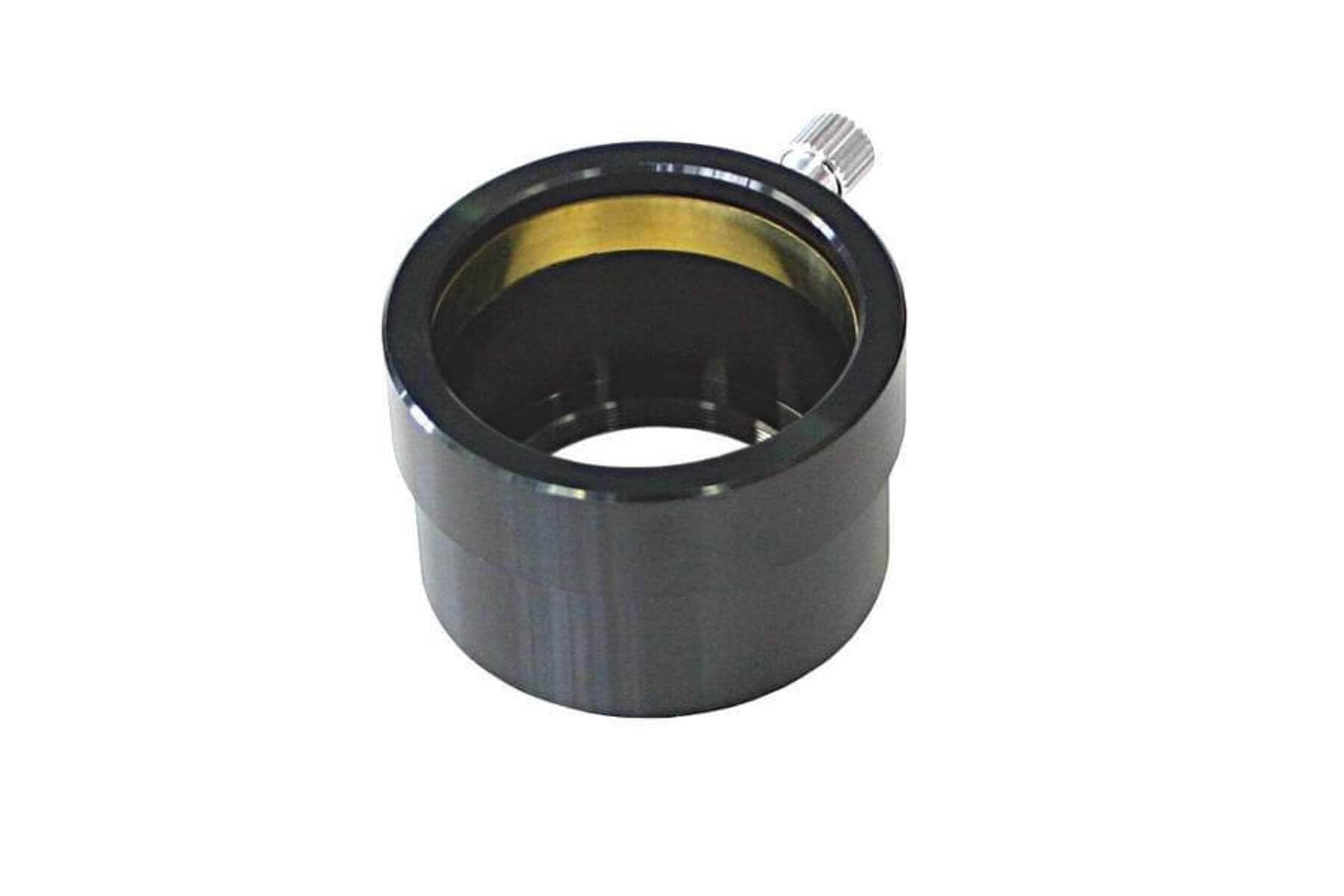

LST2-2 inch goes the other way. Remove the 1.25 inch eyepiece tube from your blocking filter, thread this adapter onto the exposed T2 thread, and you can use 2 inch eyepieces. Lunt lists it for its blocking filters, hydrogen alpha and calcium K telescopes except the LS35THa, and Ca-K modules. Solar viewing still demands the telescope's proper filtration.
Key Features
- Brass Compression Ring - both adapters clamp the barrel evenly so thumbscrews never scar an eyepiece or camera nose.
- Step Down Fit - the ADP2-1.25 takes a 2 inch blocking filter, diagonal or focuser down to standard 1.25 inch accessories.
- T2 To Two Inch - the LST2-2 inch threads straight onto the T2 thread left behind when the 1.25 inch eyepiece tube is removed.
- Wide Field Access - opening a Lunt blocking filter to 2 inch eyepieces lets you use longer focal length wide field designs.
- All Metal Bodies - machined metal construction with no plastic in the load path, so the joint stays square under a heavy eyepiece.
- Broad Compatibility - listed for Lunt blocking filters, hydrogen alpha and Ca-K telescopes other than the LS35THa, and Ca-K modules.
| Specifications | |
|---|---|
| Type | Machined mechanical adapters for Lunt blocking filters, diagonals and focusers |
| Model / SKU | ADP2-1.25, LST2-2 inch |
| ADP2-1.25 function | steps a 2 inch blocking filter, diagonal or focuser down to 1.25 inch |
| LST2-2 inch function | threads onto a T2 blocking filter thread to accept 2 inch eyepieces |
| Retention method | non marring brass compression ring on both adapters |
| Optical elements | none, both parts are purely mechanical |
| Body material | metal; exact alloy and finish Not published |
| LST2-2 inch fit list | Lunt blocking filters, hydrogen alpha and Ca-K telescopes except the LS35THa, and Ca-K modules |
| Optical length added | Not published |
| Thread specification | T2 on the LST2-2 inch; thread detail for ADP2-1.25 Not published |
| Solar safety | use only on a telescope that already carries certified solar filtration; neither adapter filters light |
| Shipping weight | 1.0 lb each |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
