Lunt Tecnosky Horizon Binoviewer
Two Eyed Solar Viewing Without Extra Correctors

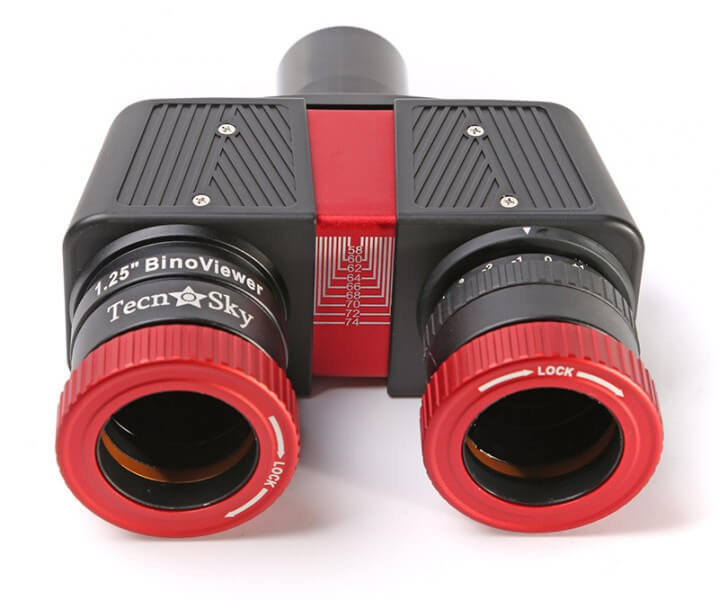

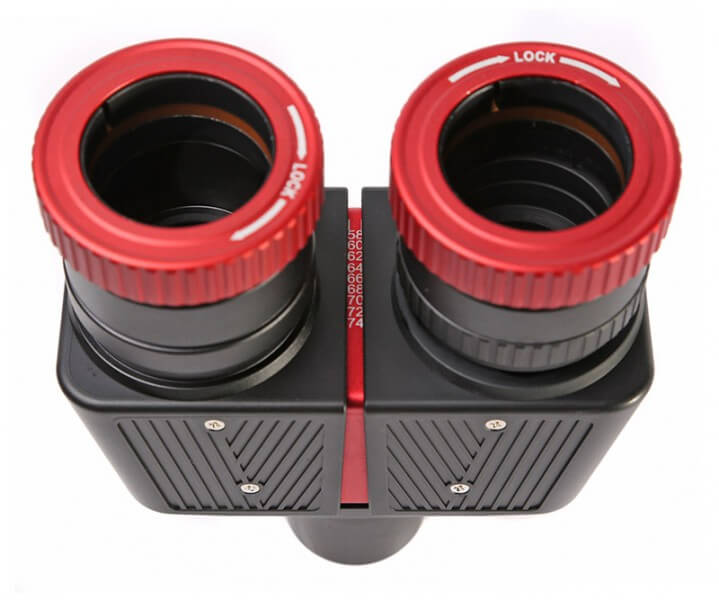

The Tecnosky Horizon binoviewer lets you observe with both eyes through a single telescope. Its head combines prism and mirror elements and carries built in optical correctors, so on a Lunt hydrogen alpha telescope it reaches focus without an optical corrector system lens or a stack of spacers, which is often the obstacle with older binoviewer designs.
Magnification through the head is 1:1, so your eyepieces keep their marked focal lengths. Eyepiece holders are 1.25 inch and Lunt publishes an eye relief range of 58 mm to 74 mm along with a rotatable diopter adjustment for balancing focus between your eyes. Unobstructed clear diameter is 17.3 mm and the head weighs 24.9 ounces.
Overall dimensions are 127 by 106.7 by 50.4 mm. The head is compatible with Lunt solar telescopes and with Newtonian and refractor telescopes generally, and Lunt suggests pairing it with its flat field eyepieces in 8, 12, 16, 19 and 27 mm for solar work behind proper solar filtration. It showed as sold out at the time of writing.
Key Features
- No Corrector Needed - the turret design reaches focus on Lunt hydrogen alpha telescopes without an optical corrector system lens.
- One To One - magnification through the head is 1:1, so eyepieces keep their marked focal lengths.
- Prism And Mirror - the optical path combines both prism and mirror elements with correctors built into the head.
- Diopter Adjustment - rotatable diopter control lets you match focus between your left and right eye.
- Standard Eyepiece Fit - 1.25 inch holders accept Lunt flat field eyepieces in 8, 12, 16, 19 and 27 mm.
- Wide Compatibility - usable on Lunt solar telescopes and on Newtonian and refractor telescopes as well.
| Specifications | |
|---|---|
| Type | 1.25 inch binoviewer with combined prism and mirror optical design |
| Model / SKU | LS-Tec-TObinR |
| Eyepiece adapter | 1.25 inch |
| Magnification | 1:1, no optical corrector system lens or adapter required |
| Built in correctors | yes, optical correctors are integrated into the head |
| Focus adjustment | rotatable diopter adjustment |
| Eye relief as published | 58 mm to 74 mm |
| Unobstructed diameter | 17.3 mm |
| Dimensions | 127 by 106.7 by 50.4 mm |
| Head weight | 24.9 ounces |
| Telescope compatibility | all Lunt solar telescopes plus Newtonian and refractor telescopes |
| Suggested eyepieces | Lunt flat field eyepieces in 8, 12, 16, 19 and 27 mm |
| Availability | showed as sold out on the Lunt storefront |
| Solar safety | for solar use only on a telescope with correct certified solar filtration in place |
| Shipping weight | 1.56 lb |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
