Lunt SunLock Solar Finder
Center The Sun Without Looking Through Anything

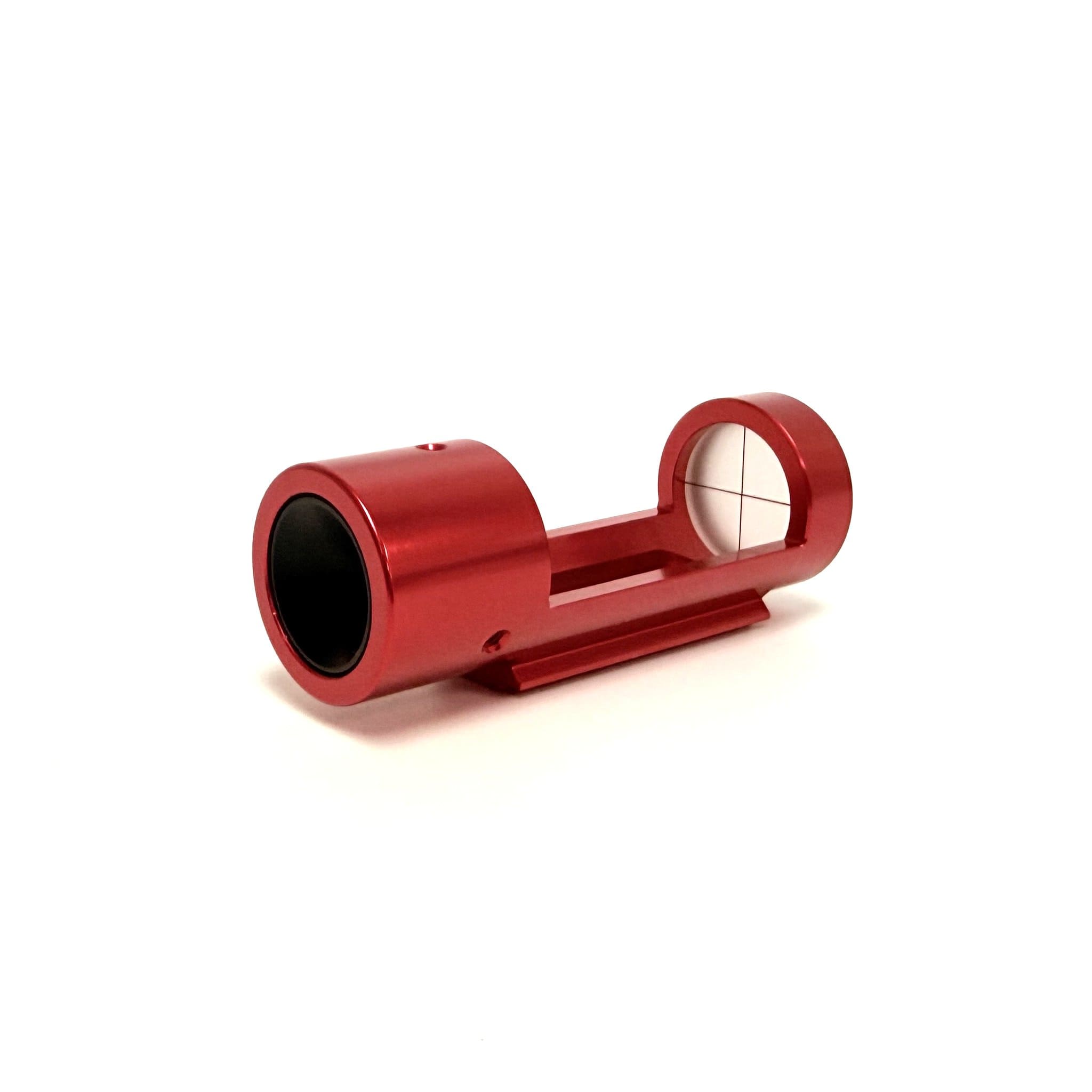

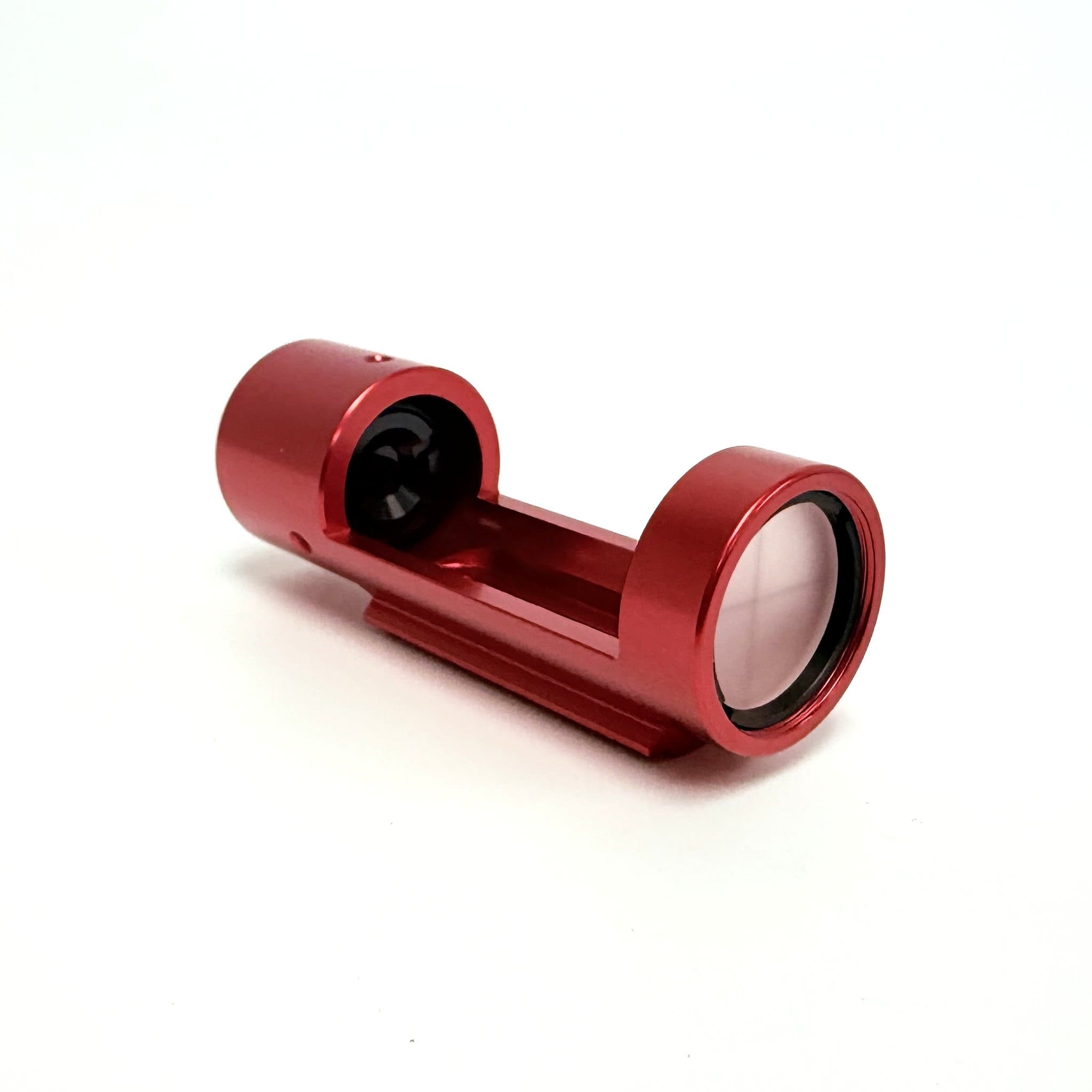

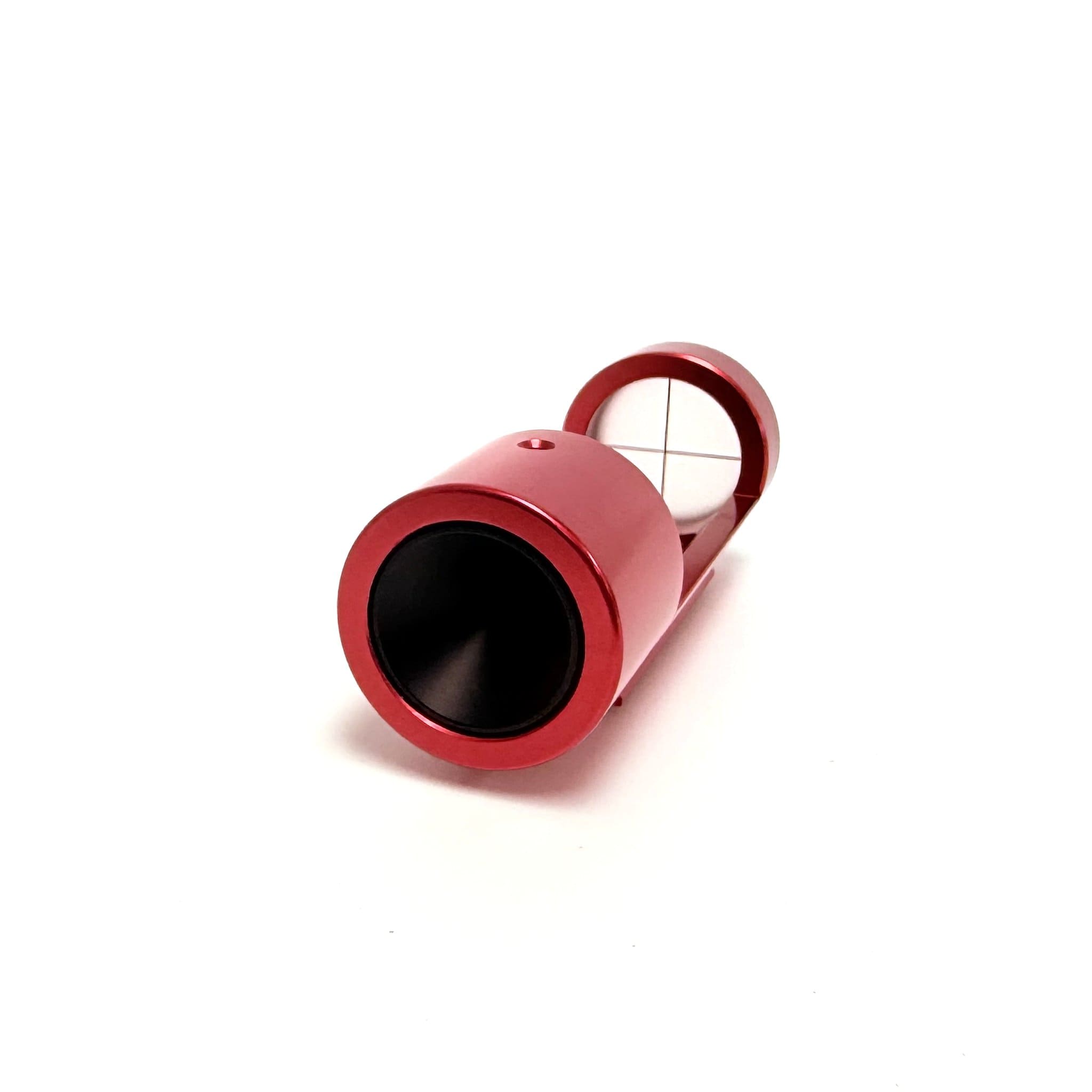

The SunLock finder from Lunt lets you aim your telescope at the Sun without sighting through any optic. It projects a bright alignment spot onto a glass reticle plane that you read from above and forward of the eyepiece, so you simply move the mount until the spot sits on the mark.
Internal set screws handle alignment, so you adjust the projection spot from inside the housing rather than with external thumbscrews that can drift. Once you have set it, the alignment holds through casing the telescope and travelling to a site, which saves you re-aiming at the start of every session.

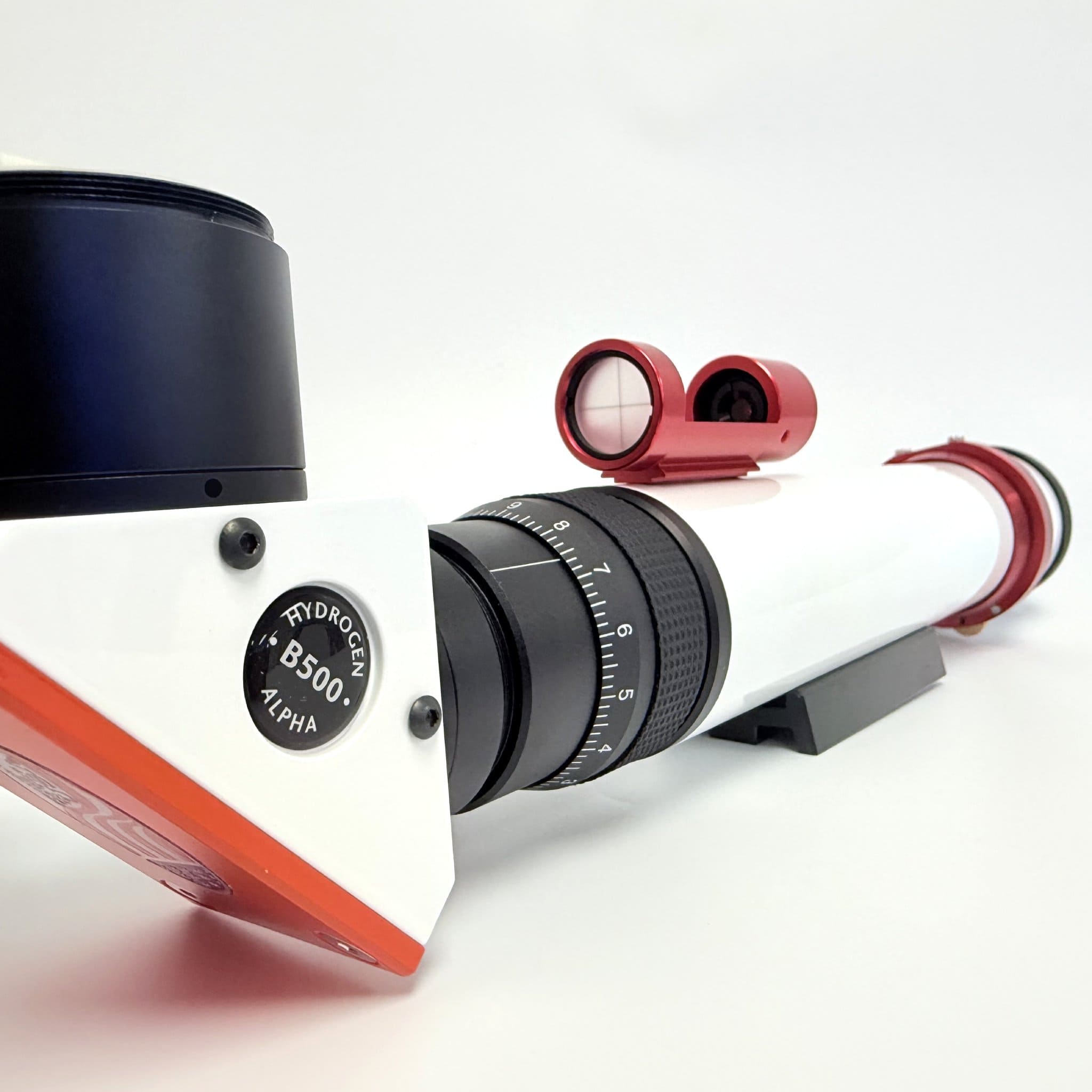

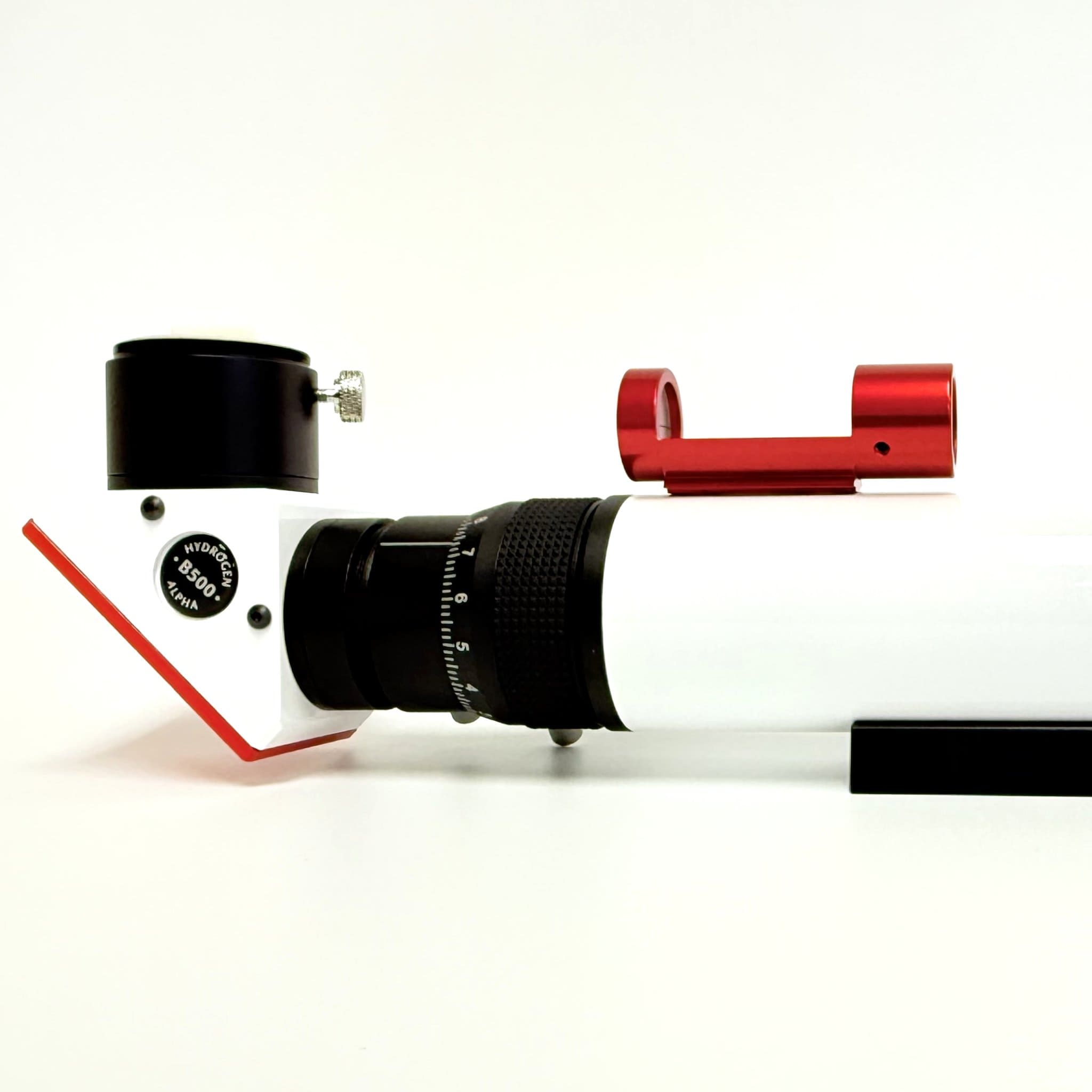

The red anodized body matches Lunt telescopes and mounts directly on the LS40, LS50T, LS60, LS80THa and LS100THa. Larger models and ring style mounts need the ADPSOL adapter. The slot takes 1/4-20 or M6 screws on 1 inch or 25.4 mm spacing, so it also fits Tele Vue slots and many third party solar setups.
Key Features
- No Squinting - you read a projected spot on a reticle plane instead of looking toward the Sun through a finder.
- Locked Alignment - internal set screws hold the projection spot so it does not shift during transport.
- Direct Lunt Fit - mounts straight onto LS40, LS50T, LS60, LS80THa and LS100THa telescopes.
- Adapter Ready - larger models and ring style mounts use the ADPSOL adapter for the same secure fit.
- Flexible Hardware - the slot accepts 1/4-20 or M6 screws on 1 inch or 25.4 mm hole spacing.
- Matched Finish - red anodizing matches Lunt telescope tubes and stands up to outdoor use.
| Specifications | |
|---|---|
| Type | Solar alignment finder |
| Model / SKU | 003-385 |
| Sighting method | Projected alignment spot on a glass reticle plane |
| Viewing position | Read from above and forward of the eyepiece |
| Adjustment | Internal set screws |
| Finish | Red anodized |
| Direct fit telescopes | LS40, LS50T, LS60, LS80THa, LS100THa |
| Adapter for larger models | ADPSOL, also used for ring style mounts |
| Mounting hardware | 1/4-20 or M6 screws |
| Hole spacing | 1 inch or 25.4 mm |
| Third party compatibility | Tele Vue finder slots and many other solar setups |
| Telescope included | No, telescopes shown in product photos are not supplied |
| Shipping weight | 2 oz, about 0.125 lb |
| Manual | Not published |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
