Lunt Solar Telescope Eyepiece
Flat Field Views With Etalon Grade Coatings
Lunt eyepieces for solar viewing use flat field designs with 0.1 percent anti reflective coatings, the same coatings applied to Lunt etalons. Low reflectivity matters on the Sun, where a bright disk in a narrow band can throw ghosts and haze, and the flat field keeps detail sharp from the center to the edge.

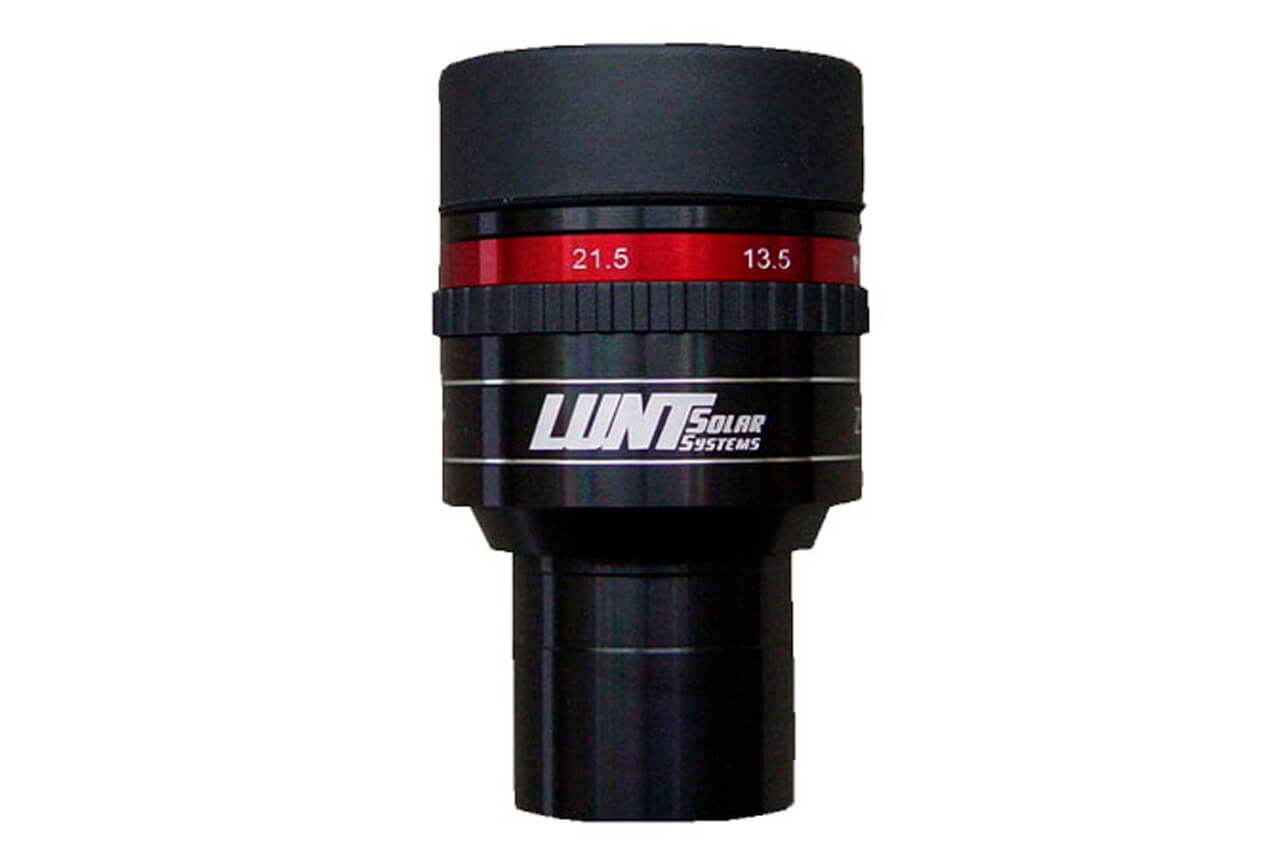

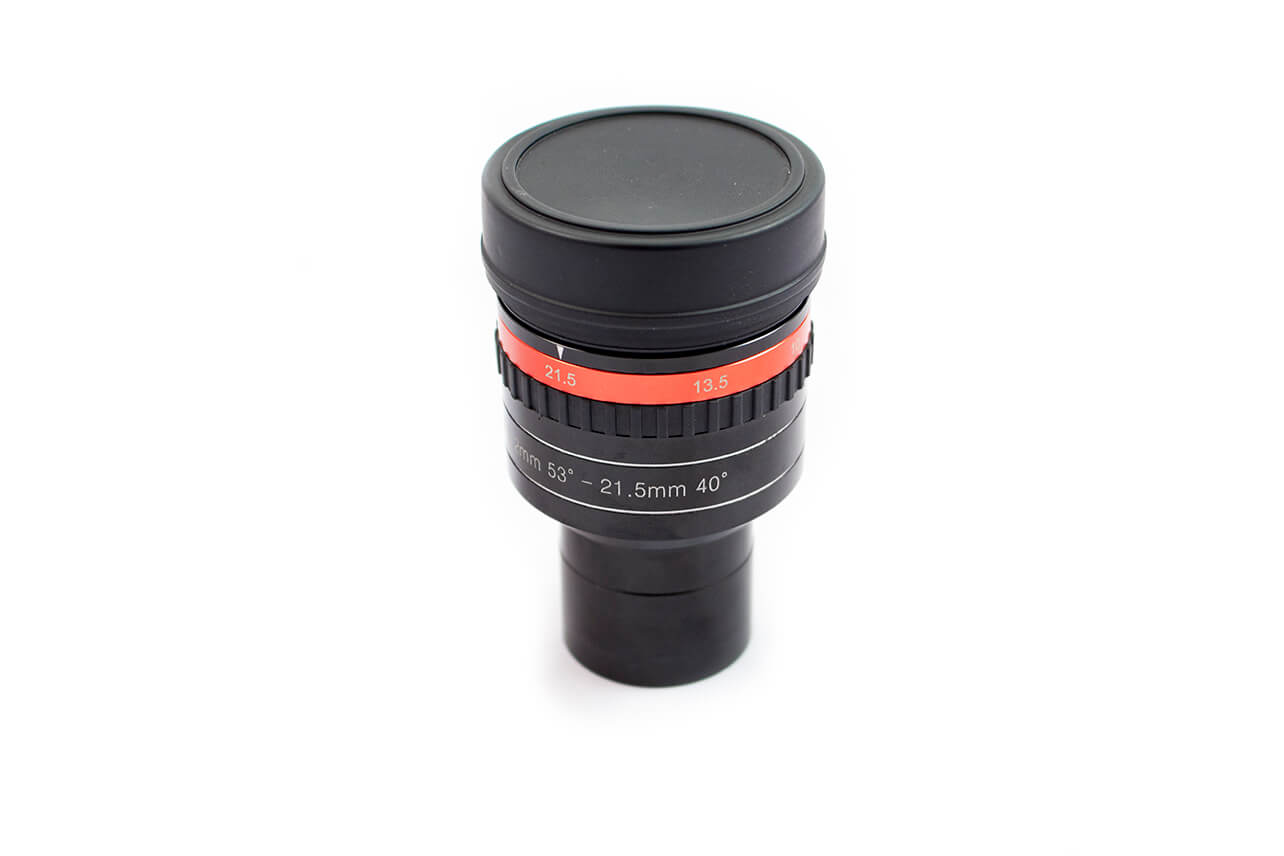

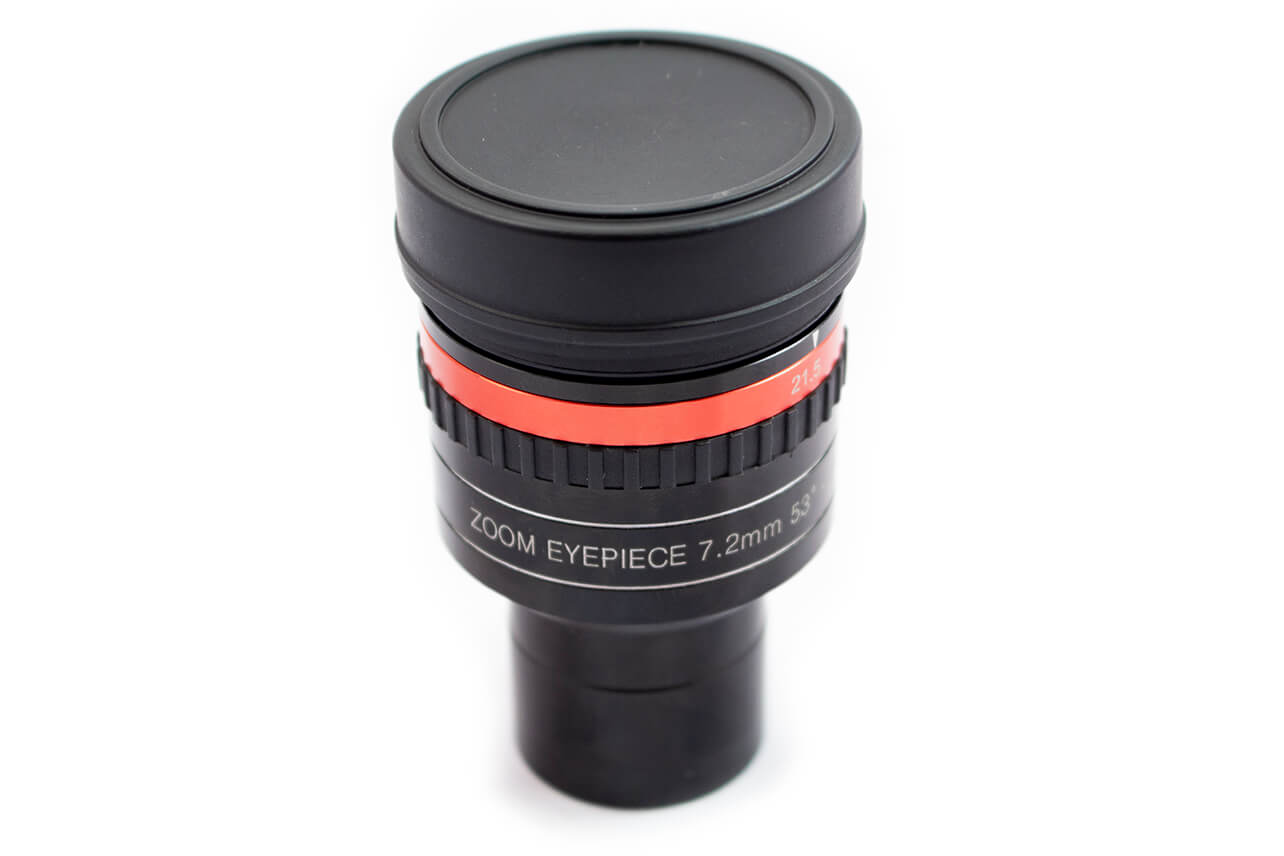

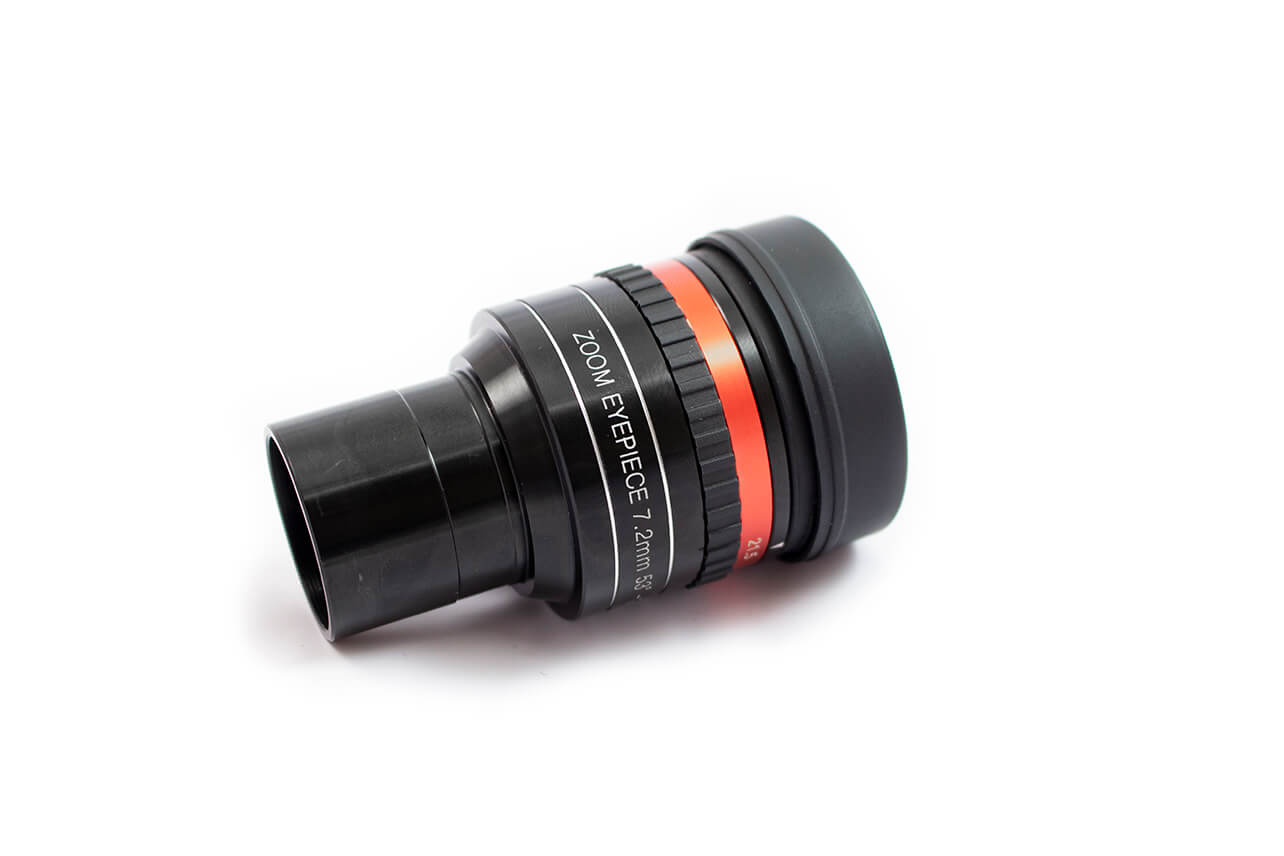

Five fixed focal lengths are offered: 8 mm, 12 mm, 16 mm, 19 mm and 27 mm. A 7.2 mm to 21.5 mm zoom covers that middle range in one barrel, with 15 mm eye relief and a field of view that runs from 53 degrees at the short end to 40 degrees at the long end.
Every eyepiece uses a 1.25 inch barrel, so it drops into Lunt solar telescopes, blocking filter holders and white light wedges, and works at night as well. The LSEPSET bundle gathers five eyepieces in one set. Always observe the Sun through proper solar filtration, since an eyepiece provides none on its own.
Key Features
- Etalon Grade Coatings - 0.1 percent anti reflective coatings, the same specification Lunt applies to its etalons.
- Flat Field Design - holds focus and detail from the center of the view out to the edge.
- Six Focal Choices - 8 mm, 12 mm, 16 mm, 19 mm and 27 mm fixed, plus a 7.2 mm to 21.5 mm zoom.
- Zoom Convenience - one barrel covers the mid range with 15 mm eye relief and a 53 to 40 degree field of view.
- Standard 1.25 Inch - fits Lunt solar telescopes, blocking filter holders, wedges and night time scopes.

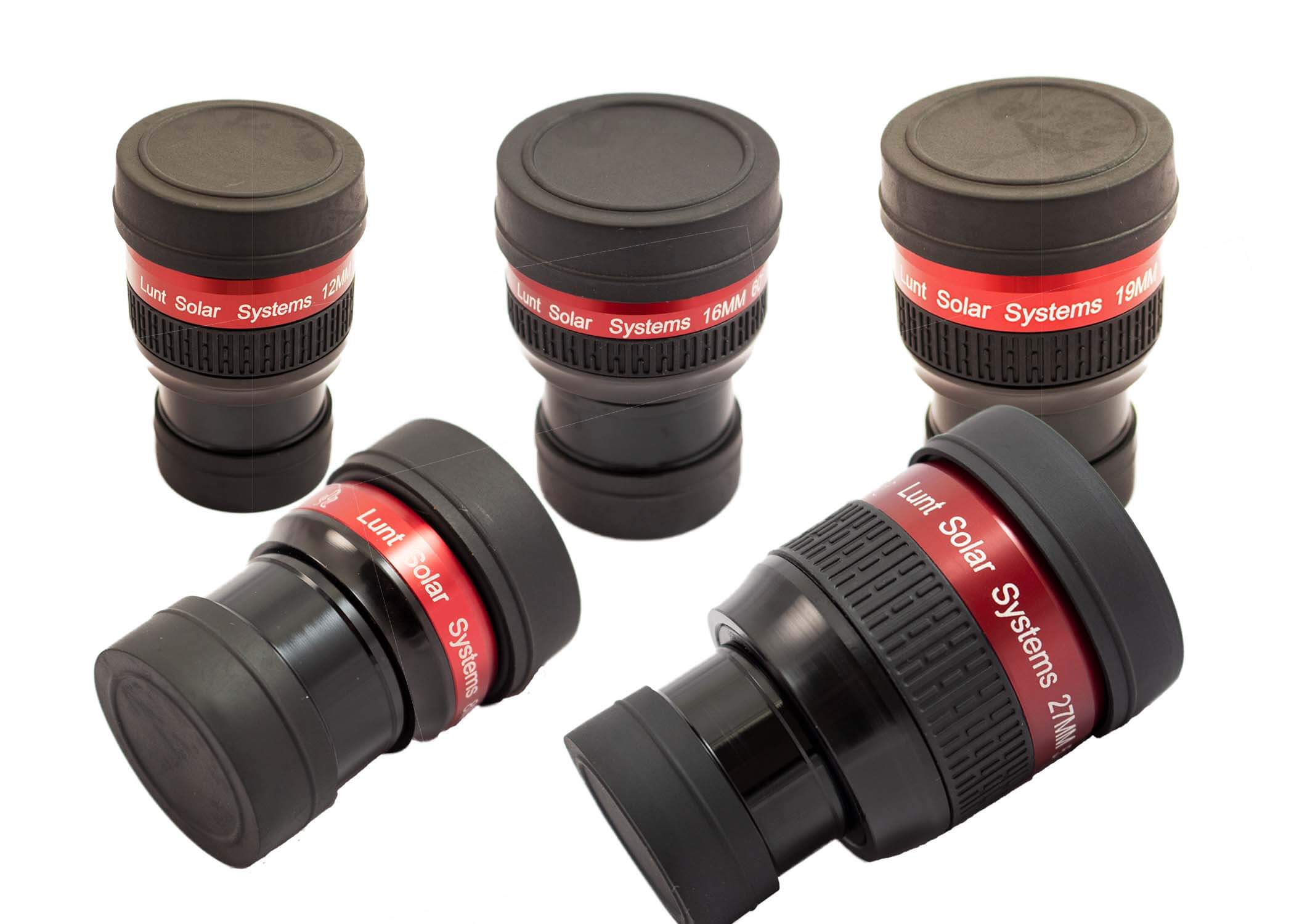

- Five Piece Set - the LSEPSET bundle puts all five fixed focal lengths into a single purchase.
| Specifications | |
|---|---|
| Type | Flat field telescope eyepieces for solar and night time use |
| Model / SKU | LS8E, LS12E, LS16E, LS19E, LS27E, LS7-21ZE, LSEPSET |
| LS8E | 8 mm focal length, 1.25 inch barrel |
| LS12E | 12 mm focal length, 1.25 inch barrel |
| LS16E | 16 mm focal length, 1.25 inch barrel |
| LS19E | 19 mm focal length, 1.25 inch barrel |
| LS27E | 27 mm focal length, 1.25 inch barrel |
| LS7-21ZE | 7.2 mm to 21.5 mm zoom, 1.25 inch barrel |
| LSEPSET | Set of five fixed focal length eyepieces |
| Coatings | 0.1 percent anti reflective, the same coatings used on Lunt etalons |
| Zoom eye relief | 15 mm |
| Zoom field of view | 53 degrees at 7.2 mm, 40 degrees at 21.5 mm |
| Zoom optical layout | 7 lenses in 4 groups |
| Zoom dimensions | 47 mm diameter, 82 mm height |
| Fixed eyepiece eye relief and field of view | Not published |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
