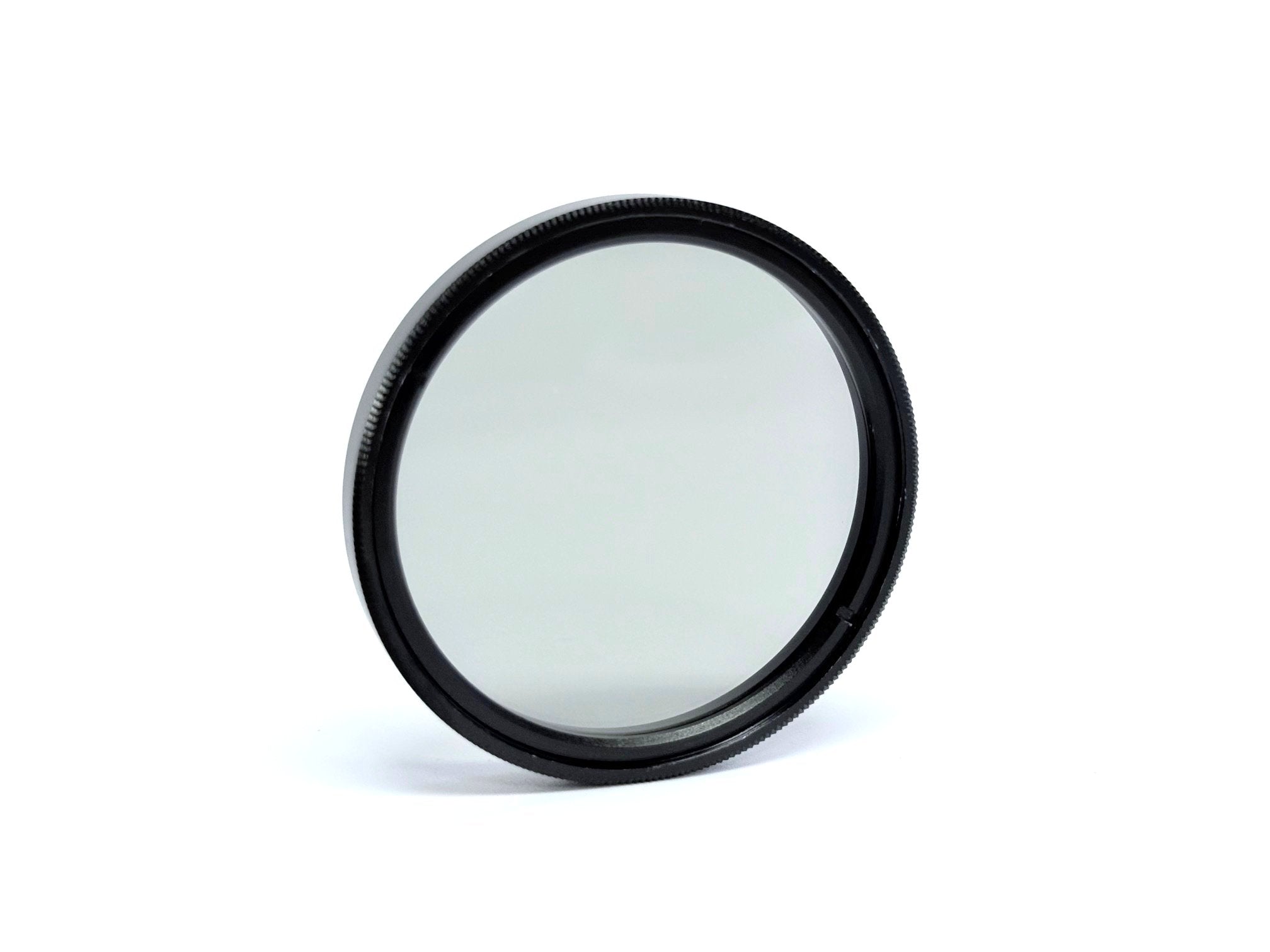

Lunt Polarizing Filter Unit
Dial In Comfortable Brightness For Visual Solar Viewing
This polarizing filter unit from Lunt pairs with a Lunt White Light Solar Wedge to give you control over image brightness. The wedge and its ND3 filter already bring sunlight down to a safe level, and the polarizer then lets you trim the remaining glare so the disk sits at a comfortable level for your eyes.
Installation is simple. Screw the filter onto the barrel of your eyepiece, drop the eyepiece into the wedge, then rotate the eyepiece or the top filter element to vary transmission. Choose the size that matches your wedge barrel, PF1.25 for the 1.25 inch wedge and PF-2 for the 2 inch wedge.
This filter is a brightness control, not a solar filter. It must never be used on its own to look at the Sun. Always observe through properly filtered equipment such as a Herschel wedge on a refractor or a dedicated hydrogen alpha telescope, and add the polarizer only inside that safe optical train.
Key Features
- Variable Brightness - rotate the eyepiece or the top element to smoothly change transmission until the solar disk is comfortable.
- Two Sizes - PF1.25 threads onto 1.25 inch eyepiece barrels and PF-2 threads onto 2 inch barrels.
- Wedge Companion - designed to work with the Lunt White Light Solar Wedge during visual observing sessions.
- Simple Threading - screws directly onto the eyepiece barrel with no adapters or tools required.
- Not A Solar Filter - provides brightness control only and must always sit inside a properly filtered solar setup.
- Compact And Portable - small enough to live in the wedge case foam alongside your eyepieces.
| Specifications | |
|---|---|
| Type | Polarizing brightness control filter |
| Model / SKU | PF1.25 (1.25 inch), PF-2 (2 inch) |
| 1.25 inch model | PF1.25, threads onto 1.25 inch eyepiece barrels |
| 2 inch model | PF-2, threads onto 2 inch eyepiece barrels |
| Function | Variable image dimming by rotation |
| Intended use | Visual observing with a Lunt White Light Solar Wedge |
| Mounting | Screws onto the eyepiece barrel |
| Transmission range | Not published |
| Filter thread size | Not published |
| Safety note | Brightness control only, never a substitute for proper solar filtration |
| Shipping weight | 1 lb per unit |
| Manual | Not published |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
