Lunt LS60MT 60mm Universal Day & Night Solar Telescope
One Tube For Sun, Moon And Stars

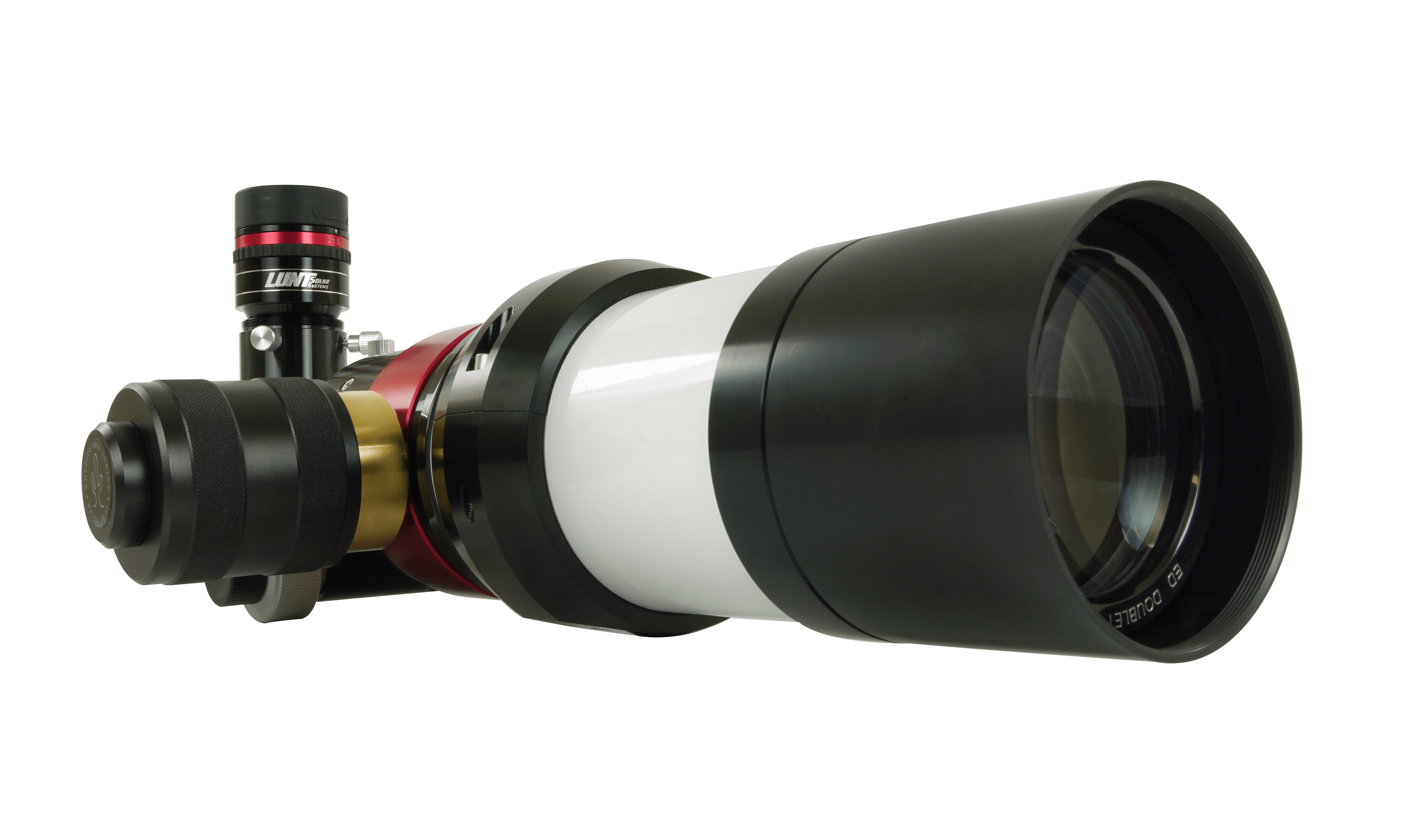

The Lunt LS60MT is a universal day and night telescope built on a professional grade FLP51 ED doublet. In its shipped hydrogen alpha configuration the working aperture is 60 mm behind the etalon module, while the native objective measures 70 mm for night use. Focal length is 420 mm at f/7, giving a short tube that carries easily and settles quickly on a small mount.

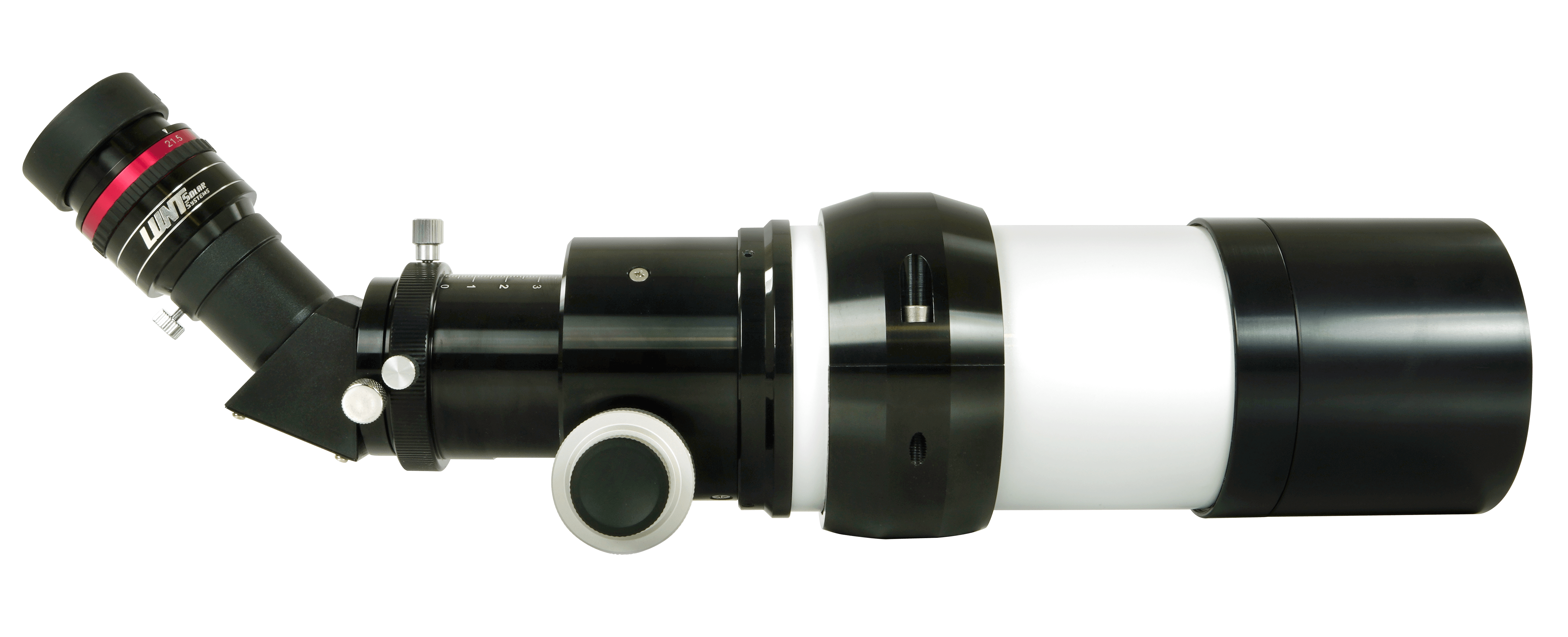

Because the hydrogen alpha module is modular rather than built into the tube, you can lift it off together with the pressure tuner and fit a standard focuser in its place. That turns the same optical tube into a conventional ED refractor for lunar, planetary, deep sky and terrestrial viewing, so a single case covers your daytime and night time sessions.
Solar tuning uses Doppler True barometric pressure tuning, which gives instant doppler shifting and fine control over what the passband reveals. Single stack bandpass is below 0.45 Angstrom and double stacking brings it below 0.40 Angstrom. Blocking filters are offered at 6 mm, 12 mm and 18 mm in diagonal and straight through form, all with a 6 Angstrom bandpass.
Key Features
- Universal Design - works as a hydrogen alpha solar scope by day and a conventional ED refractor after dark.
- ED Doublet - a professional grade FLP51 doublet with ion assist broadband AR coating and 70 mm native aperture.
- Pressure Tuning - Doppler True barometric pressure tuning delivers instant doppler shifting across the solar disk.
- Modular Etalon - the hydrogen alpha module and pressure tuner detach so a standard focuser can take their place.
- Focuser Choice - dual speed Lunt Crayford, dual speed rack and pinion or dual speed Feather Touch options.
- Hard Case Included - an aluminum finished hard case with fitted foam ships with the clamshell and optical tube.
| Specifications | |
|---|---|
| Model / SKU | LS60MT/R&P, LS60MT/B600R&P, LS60MT/B1200R&P |
| Optical Design | Universal day and night refractor, professional grade FLP51 ED doublet, modular H-alpha |
| Aperture | 70 mm native, 60 mm in H-alpha configuration |
| Focal Length | 420 mm |
| Focal Ratio | f/7 |
| Bandwidth | Less than 0.45 Angstrom single stack, less than 0.40 Angstrom double stack |
| Blocking Filter | 6 mm, 12 mm, 18 mm, diagonal and straight through, 6 Angstrom bandpass |
| Focuser | Dual speed Lunt Crayford, dual speed rack and pinion, or dual speed Feather Touch |
| Tuning | Lunt Pressure Tuner, Doppler True barometric pressure tuning, instant doppler shifting |
| Etalon Type | Modular hydrogen alpha, removable for night use |
| Etalon Wavelength | 656.28 nm |
| Etalon Material | UV grade fused silica |
| Objective Coating | Ion assist broadband AR |
| Capabilities | H-alpha, CaK, white light, lunar, planetary, deep space, terrestrial (some optional) |
| Mounting | CNC clamshell mount and Vixen style dovetail |
| Max Magnification | 100x theoretical |
| Weight | Approximately 7 lb telescope weight, 8.0 lb shipping weight |

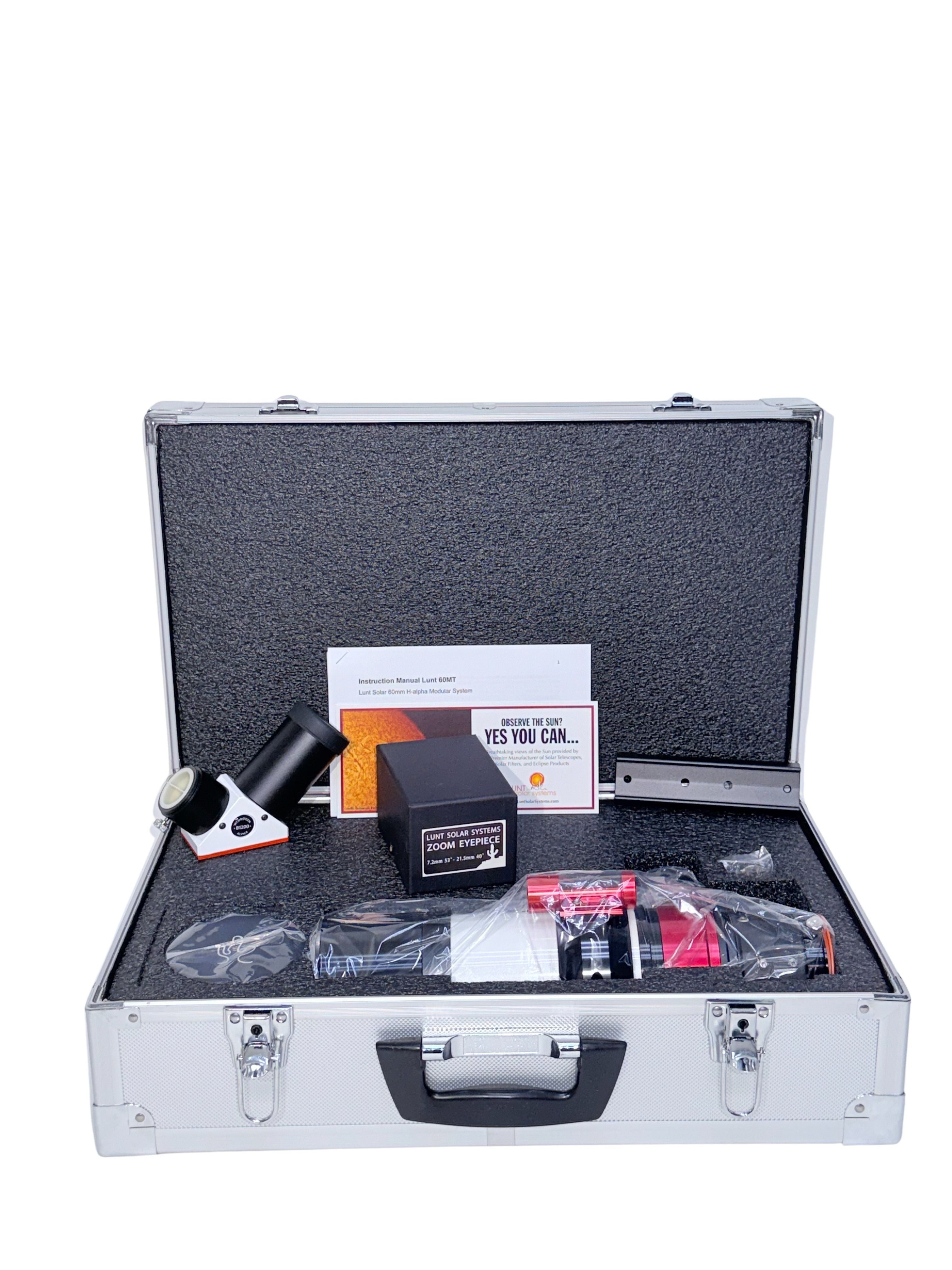

| What's Included | Lunt 60 mm universal day and night OTA, clamshell, aluminum finished hard case with custom foam insert |
| Warranty | 5 years against manufacturing and workmanship defects |
Manuals
Product Manual (PDF)Talk to a Specialist
