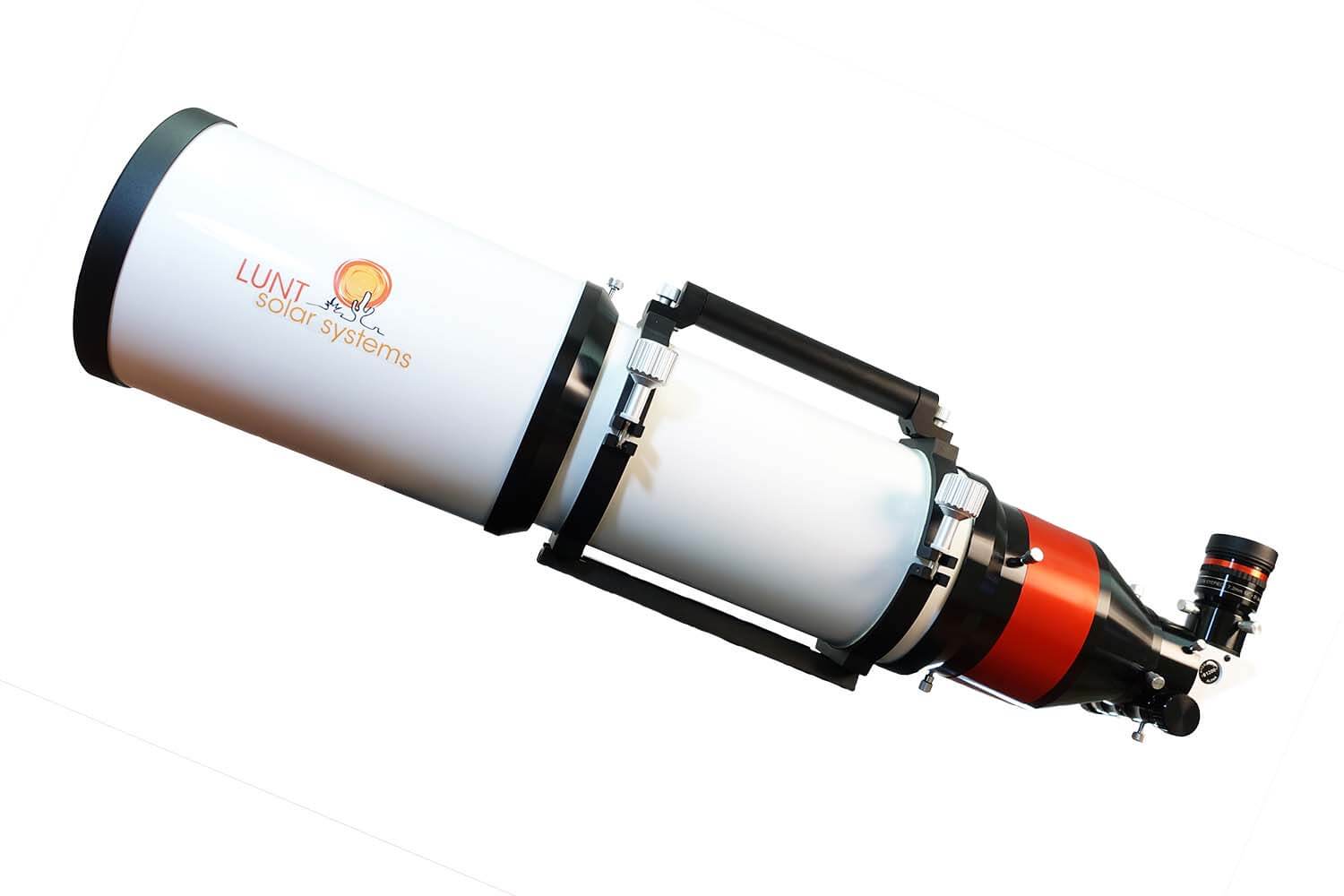

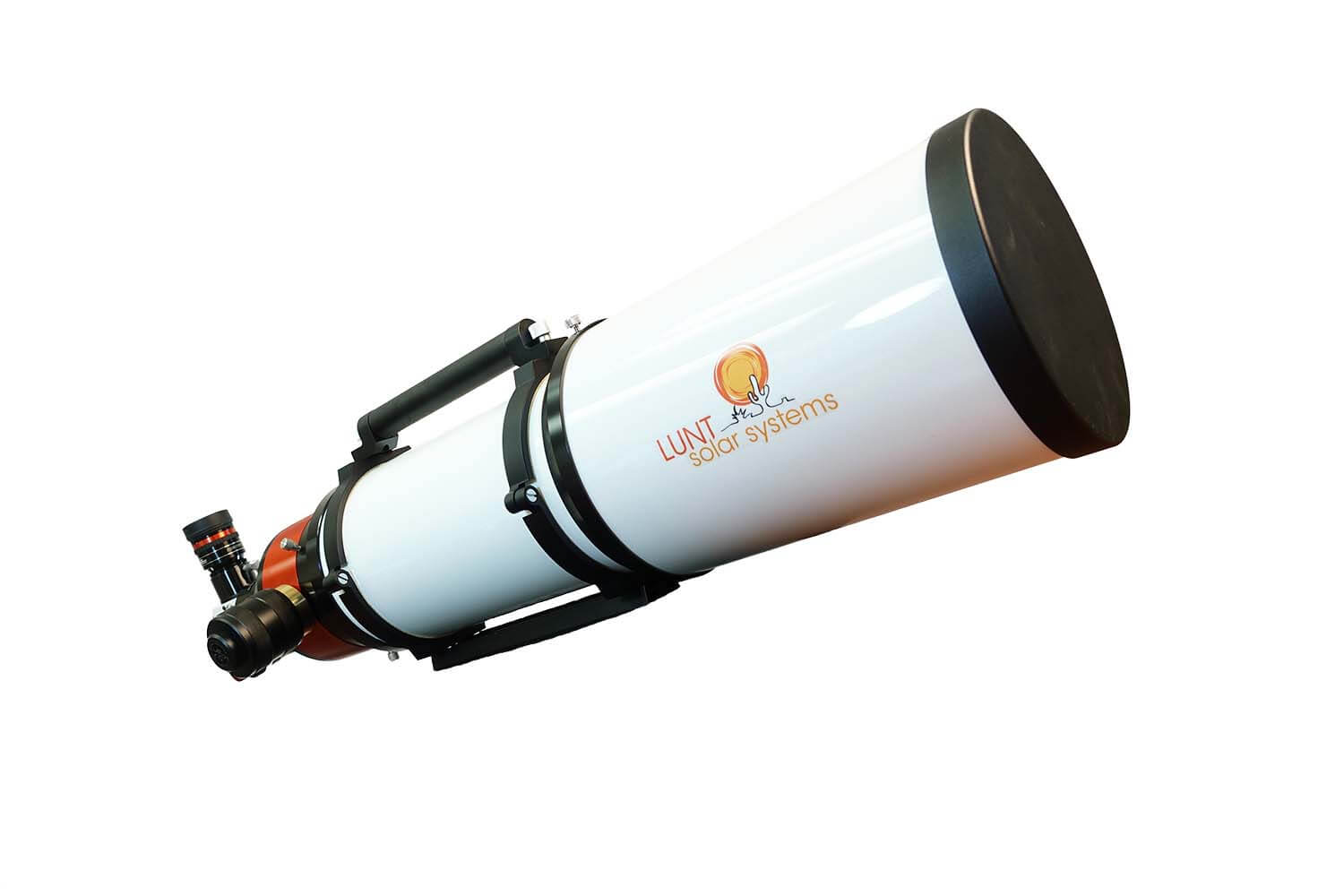

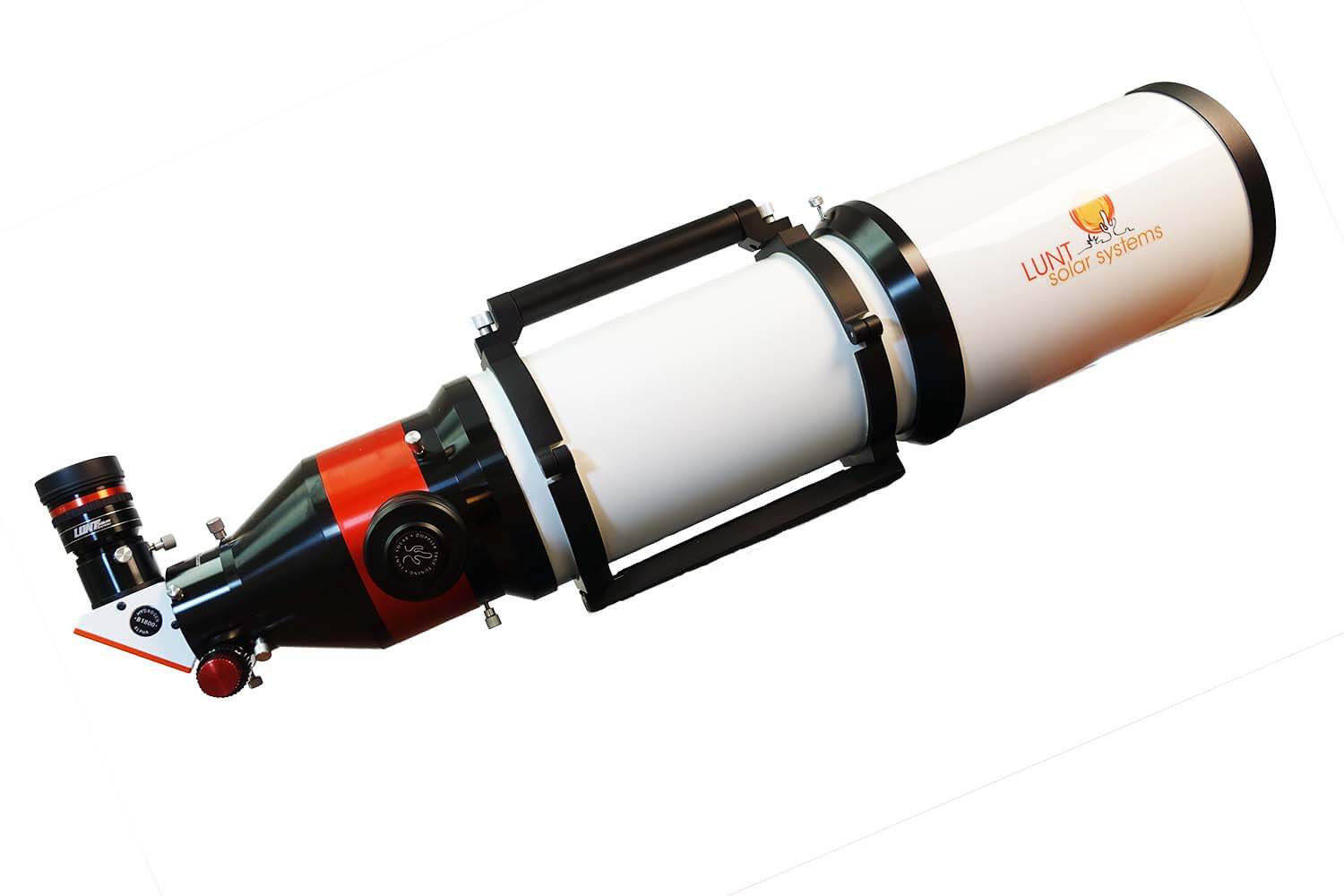

Lunt LS152THa 152mm H-Alpha Solar Telescope
Chromospheric Detail From a 152mm Unobstructed Refractor
The Lunt LS152THa is a dedicated hydrogen alpha instrument built around a 152 mm unobstructed refractor and a single interference HD etalon. Nothing sits in the light path to soften contrast, so the system performs at both low and high magnification. High contrast coatings run through the optical train to keep scatter down across the full solar disk.
Doppler True pressure tuning is the reason this telescope behaves differently from tilt tuned designs. The internal etalon holds a bandpass below 0.45 Angstrom at 656 nm, and the pressure tuner shifts it toward and away from you. Follow a filament from base to tip and watch its structure move through the line, adding depth to what you see.
At 900 mm and f/6 the LS152THa suits visual observers and imagers alike. Choose a B1200 diagonal for visual work, a B1800 diagonal for a wider field, or a B3400 straight through unit for large sensors, and step up to a 2.5 inch Feather Touch focuser in the top configuration. An optional Ca-K module opens a second wavelength.
Key Features
- 152mm Unobstructed - aperture with no central obstruction, so the system holds contrast at both low and high magnification.
- HD Etalon - is a single internal interference unit rated below 0.45 Angstrom at 656 nm for high surface and edge detail.
- Doppler True Tuning - shifts the passband toward and away from you, adding a three dimensional quality to filaments and active regions.
- Blocking Filter Range - covers the B1200 diagonal for visual use, the B1800 diagonal for wider fields, and the B3400 straight through for large sensors.
- Feather Touch Option - replaces the standard 2 inch rack and pinion with a 2.5 inch dual speed unit in the top configuration.
- Ca-K and Night Use - are available through an interchangeable calcium K module and a separate backing plate and focuser kit.
| Specifications | |
|---|---|
| Model / SKU | LS152THa/R&P, LS152THa/B1200RP, LS152THa/B1800RP, LS152THa/B3400FT |
| Optical Design | Dedicated hydrogen alpha refractor, 100 percent unobstructed, single interference HD etalon |
| Aperture | 152 mm |
| Focal Length | 900 mm |
| Focal Ratio | f/6 |
| Bandwidth | Less than 0.45 Angstrom at 656 nm, single stack |
| Etalon | Internal single interference HD etalon, UV grade fused silica |
| Blocking Filter | B1200 diagonal, B1800 diagonal, or B3400 straight through |
| Focuser | 2 inch rack and pinion standard; 2.5 inch Feather Touch in the top configuration |

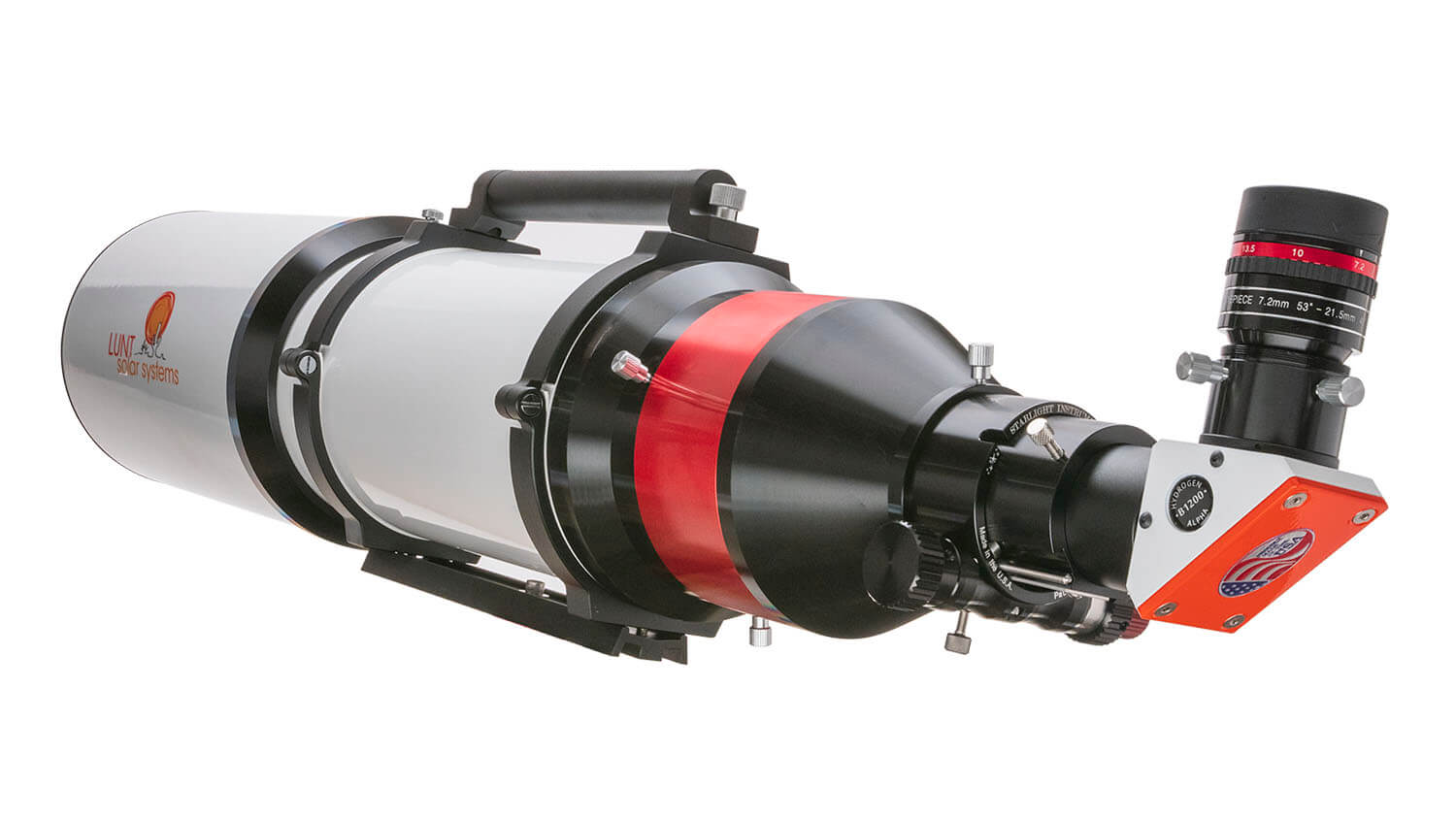

| Tuning | Lunt Pressure Tuner, internal Doppler True pressure tuning |

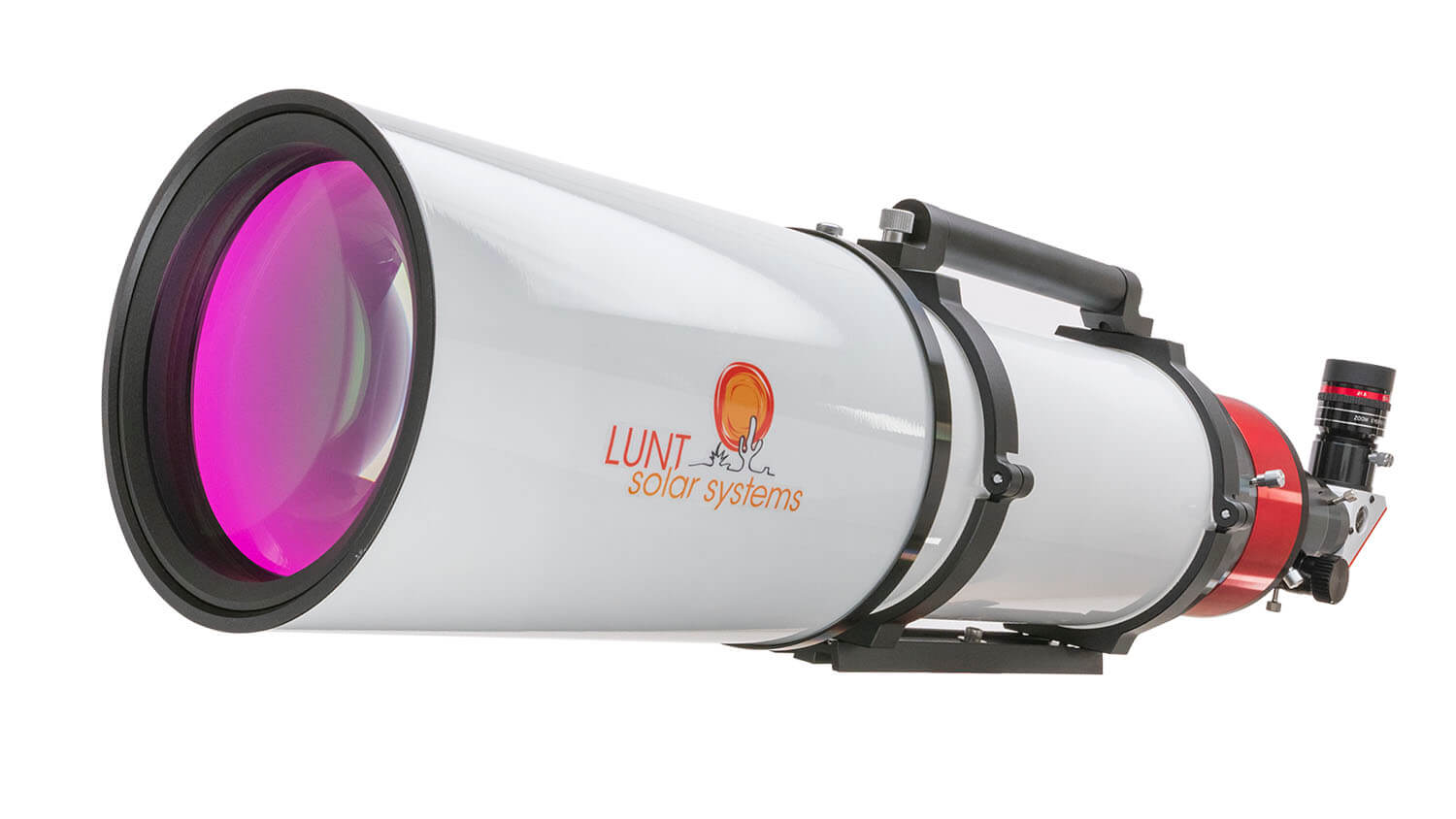

| Color | Pearl white with black and red accents |
| Storage | Aluminum finished hard case with fitted foam |
| Optional Modules | Interchangeable Ca-K module; night time backing plate and focuser kit |
| Weight | 30 lb published telescope weight; 77 lb shipping weight |
| What's Included | Optical tube assembly, mounting rings and dovetail, dust caps, aluminum reinforced case |
| Warranty | 5 years from date of purchase, original purchaser only |
