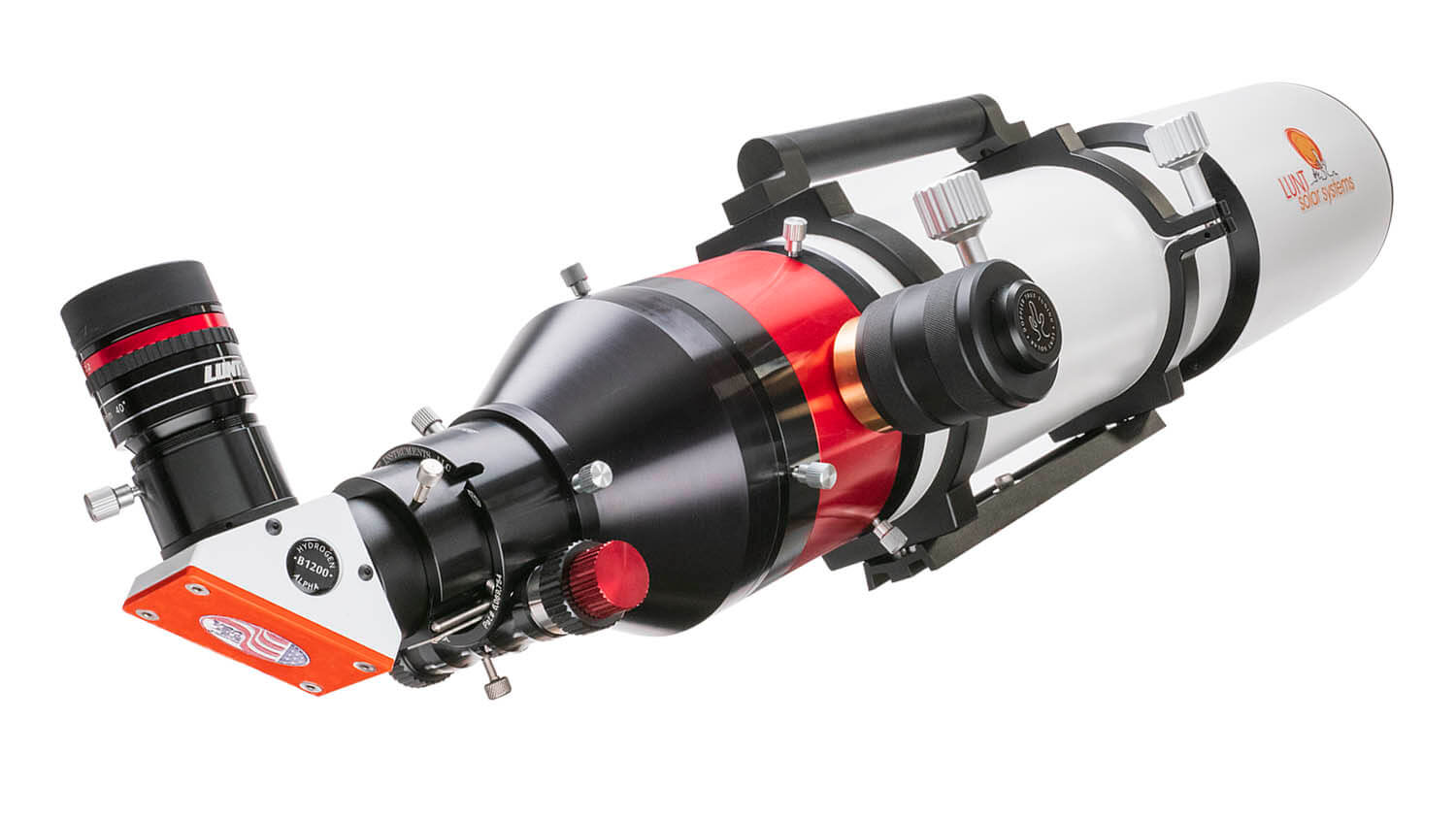

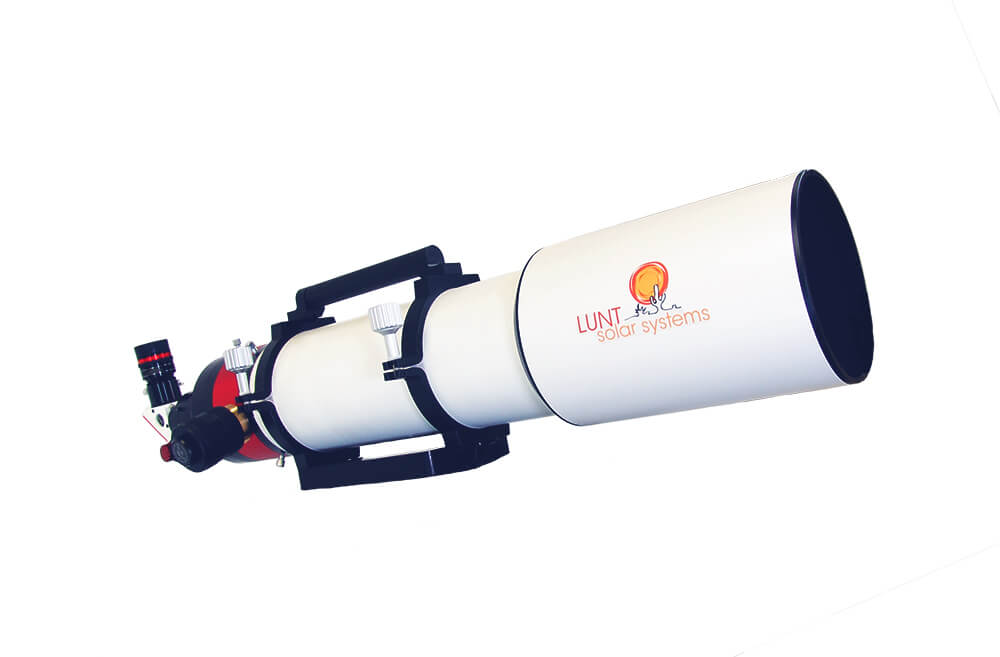

Lunt LS130MT 130mm Universal Day and Night Telescope
Sun and Stars Through One 130mm Lens
The Lunt LS130MT puts a 130 mm precision aligned APO triplet in front of you, built from FLP51 extra low dispersion glass with ion assist broadband coatings. Fit the modular hydrogen alpha module for solar work, then remove it and change the backing plate when you want the same aperture pointed at the night sky.
Solar performance rests on the internal etalon and the Lunt Pressure Tuner. Single stack gives you under 0.65 Angstrom at 656.28 nm, and adding a double stack module brings that under 0.45 Angstrom. Barometric pressure tuning shifts the passband instantly, so filaments, plage and prominences can each be brought to peak contrast without touching the tilt of any optic.
With 910 mm of focal length at f/7, the LS130MT reaches a theoretical maximum magnification of 225x and produces a solar disk large enough to fill a modern sensor. The standard package pairs a 12 mm blocking filter with a 2 inch Feather Touch focuser, and 18 mm or 34 mm filters are available where a wider field is needed.
Key Features
- 130mm APO Triplet - in FLP51 extra low dispersion glass, precision aligned and coated with ion assist broadband anti-reflection layers.

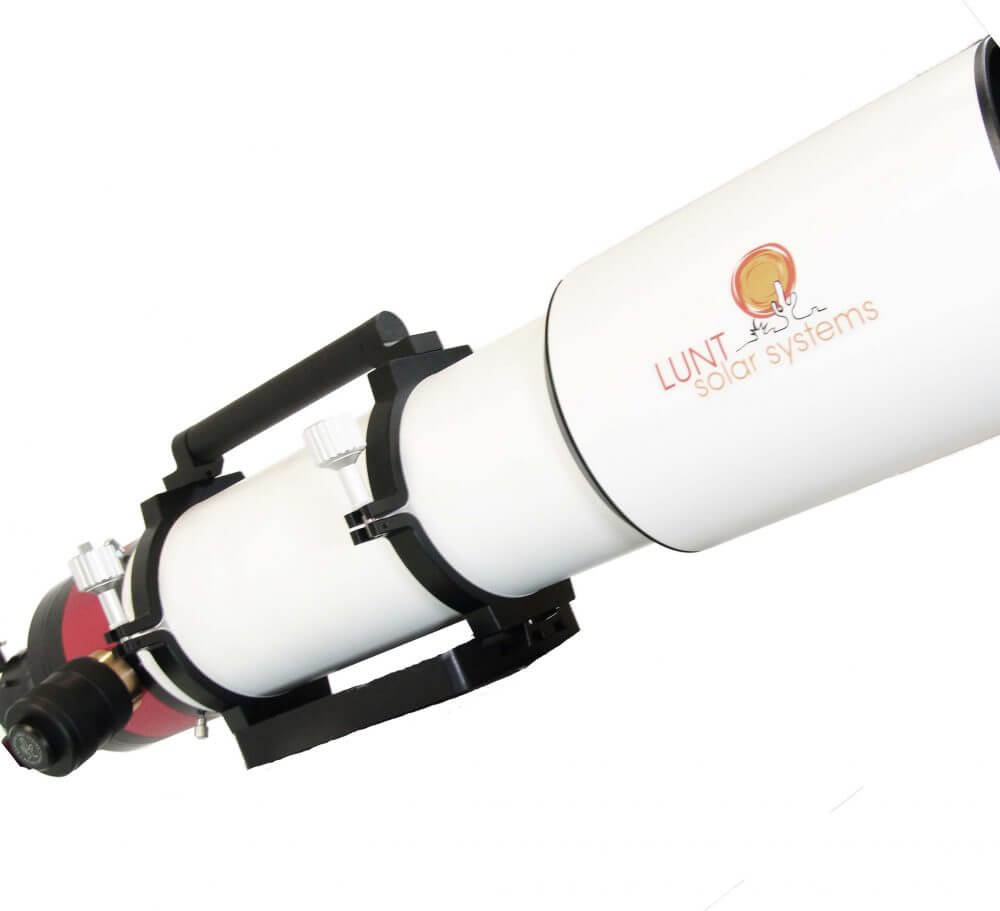

- Day and Night - operation comes from the modular design: the hydrogen alpha module and focuser lift off for full night time refractor use.
- Doppler True Tuning - through the Lunt Pressure Tuner shifts the passband across 656.28 nm instantly, with no tilt and no sweet spot.
- Double Stack Ready - drops the bandpass from under 0.65 Angstrom to under 0.45 Angstrom for higher surface contrast.
- Feather Touch Focus - is included in the standard package as a 2 inch dual speed unit, with Crayford and rack and pinion alternatives offered.
- Field Ready Package - adds CNC tube rings, a Vixen style dovetail, a red dot sun finder handle and an aluminum finished hard case.
| Specifications | |
|---|---|
| Model / SKU | LS130MT/R&P, LS130MT/B1200RP, LS130MT/B1800RP, LS130MT/B3400RP |
| Optical Design | Professional grade APO triplet refractor, FLP51 extra low dispersion glass, ion assist broadband AR coatings |
| Aperture | 130 mm, fully unobstructed |
| Focal Length | 910 mm |
| Focal Ratio | f/7 |
| Bandwidth | Less than 0.65 Angstrom single stack, less than 0.45 Angstrom double stack, at 656.28 nm |
| Etalon | Modular internal etalon, UV grade fused silica |
| Blocking Filter | 12 mm, 18 mm or 34 mm, diagonal or straight through, 6 Angstrom blocking filter bandpass |
| Focuser | Dual speed Lunt Crayford, dual speed rack and pinion, or dual speed Feather Touch |
| Tuning | Lunt Pressure Tuner, Doppler True barometric pressure tuning |
| Theoretical Max Magnification | 225x |
| Mounting | CNC mounting rings and Vixen style dovetail |
| Sun Finder | Red dot sun finder handle |
| Weight | 25 lb published telescope weight; 66.1 lb shipping weight |
| What's Included | Optical tube assembly with 12 mm blocking filter and 2 inch Feather Touch focuser, mounting rings and dovetail, red dot sun finder handle, aluminum finished hard case with fitted foam |
| Warranty | 5 years from date of purchase, original purchaser only |
