Lunt LS100MT 100mm Universal Day and Night Telescope
Solar by Day, Deep Sky by Night
The Lunt LS100MT gives you two telescopes in one tube. A 100 mm professional grade APO triplet with FPL53 glass and ion assist broadband coatings handles the night sky, while a modular hydrogen alpha etalon drops into the same optical path for full disk solar viewing. Swap the module and focuser, and the instrument changes role in minutes.
On the Sun, the internal etalon delivers a bandpass below 0.65 Angstrom in single stack form and below 0.45 Angstrom when double stacked. Doppler True barometric pressure tuning lets you shift across the hydrogen alpha line at 656.28 nm, so prominences, filaments, active regions and surface granulation each come into their best contrast as you tune.
At 714 mm focal length and f/7, the LS100MT reaches a theoretical maximum magnification of 175x and pairs well with a wide range of eyepieces and cameras. Choose a 12 mm, 18 mm or 34 mm blocking filter to match visual work or large sensor imaging, then pick a dual speed Crayford, rack and pinion, or Feather Touch focuser.
Key Features
- Two Telescopes - in one tube: remove the hydrogen alpha module and focuser, fit the night backing plate, and the same optics serve the stars.
- APO Triplet Optics - in FPL53 extra low dispersion glass, precision aligned and finished with ion assist broadband anti-reflection coatings.
- Pressure Tuning - uses the Lunt Pressure Tuner for Doppler True barometric control across the 656.28 nm line, with no tilt induced sweet spot.
- Blocking Filter Choice - spans 12 mm, 18 mm and 34 mm units in diagonal or straight through form, so visual and large sensor imaging are both covered.
- Focuser Options - include dual speed Lunt Crayford, dual speed rack and pinion and dual speed Feather Touch, each with fine focus control.

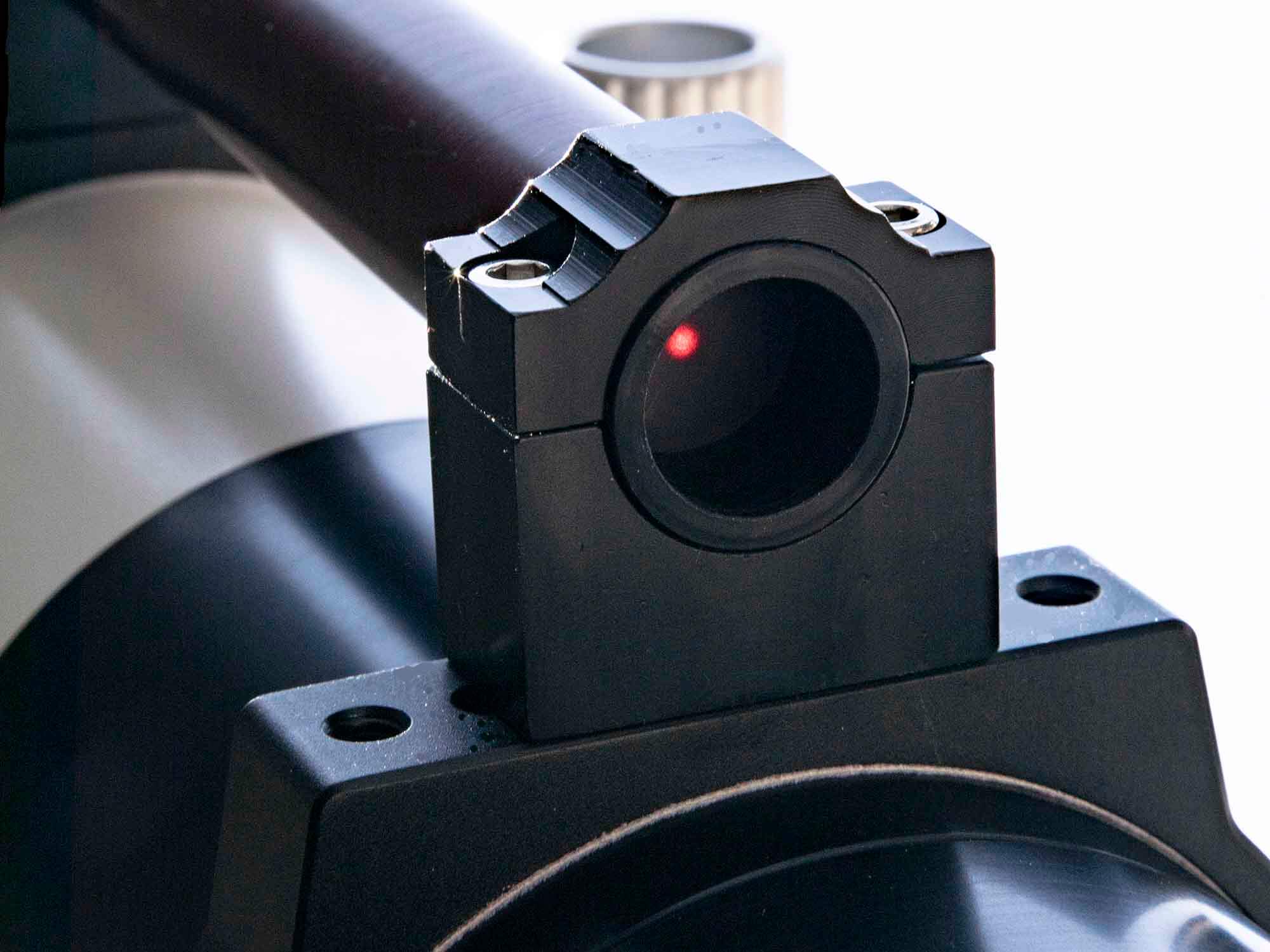

- Ready to Mount - with CNC machined tube rings, a Vixen style dovetail, a red dot sun finder handle and an aluminum finished hard case.
| Specifications | |
|---|---|
| Model / SKU | LS100MT/R&P, LS100MT/B1200RP, LS100MT/B1800R&P, LS100MT/B3400RP |
| Optical Design | Professional grade APO triplet refractor, FPL53 extra low dispersion glass, ion assist broadband AR coatings |
| Aperture | 100 mm, fully unobstructed |
| Focal Length | 714 mm |
| Focal Ratio | f/7 |
| Bandwidth | Less than 0.65 Angstrom single stack, less than 0.45 Angstrom double stack, at 656.28 nm |
| Etalon | Modular internal etalon, UV grade fused silica |
| Blocking Filter | 12 mm, 18 mm or 34 mm, diagonal or straight through, 6 Angstrom blocking filter bandpass |
| Focuser | Dual speed Lunt Crayford, dual speed rack and pinion, or dual speed Feather Touch |
| Tuning | Lunt Pressure Tuner, Doppler True barometric pressure tuning |
| Theoretical Max Magnification | 175x |
| Mounting | CNC mounting rings and Vixen style dovetail |
| Sun Finder | Red dot sun finder handle |
| Weight | Not published; shipping weight 25 lb |

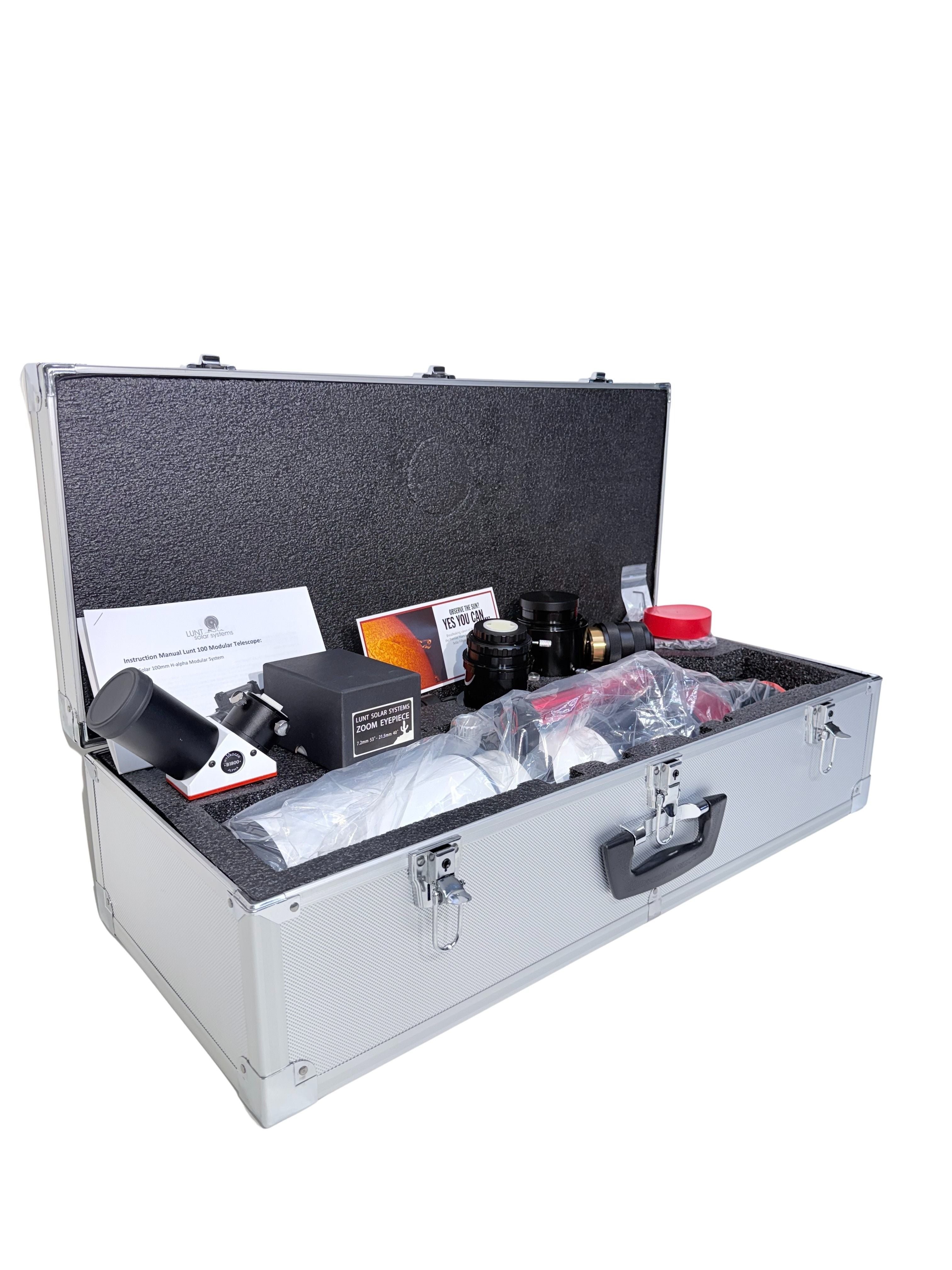

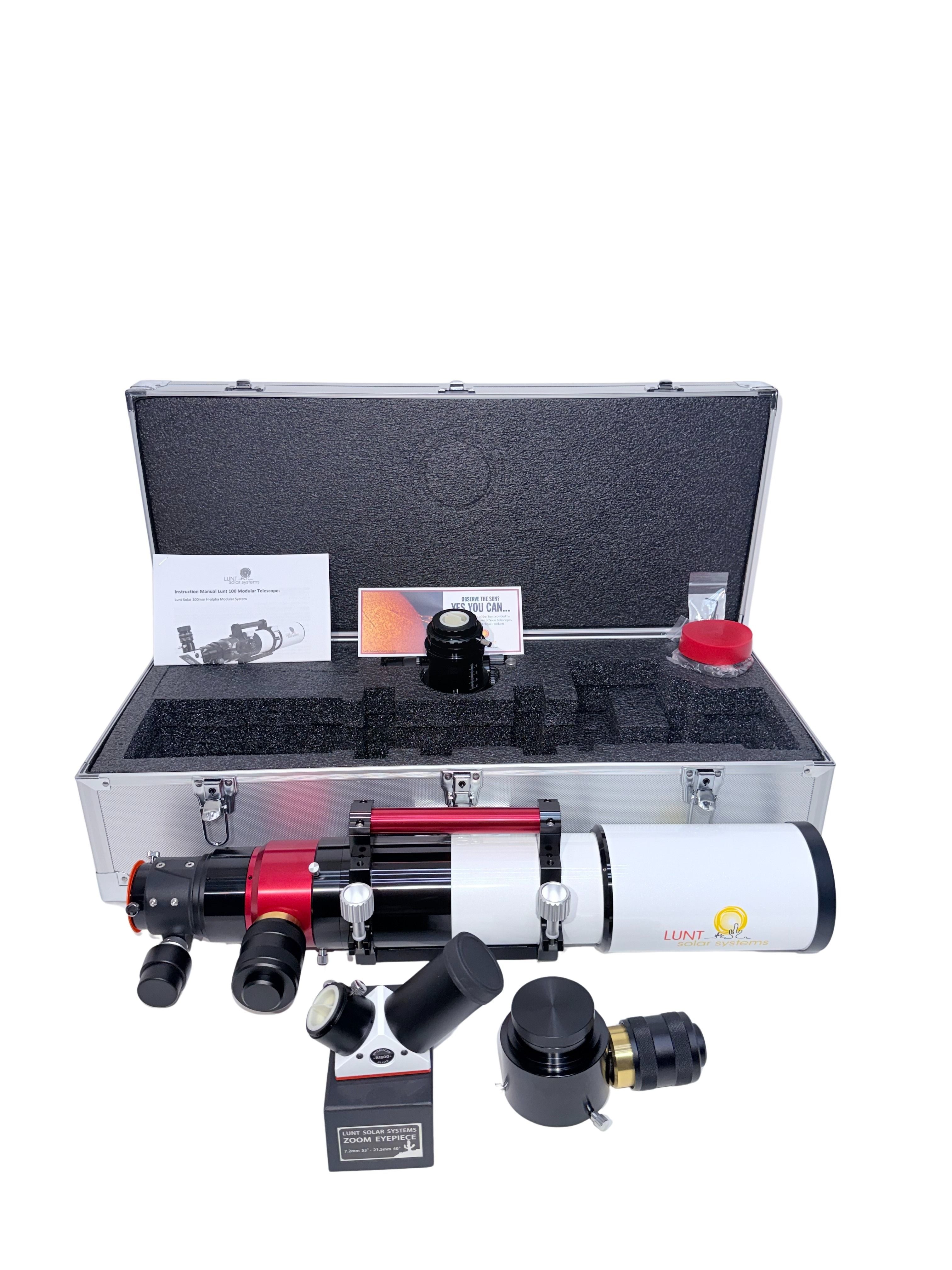

| What's Included | Optical tube assembly, mounting rings and dovetail, red dot sun finder handle, and aluminum finished hard case with fitted foam |
| Warranty | 5 years from date of purchase, original purchaser only |
Manuals
Product Manual (PDF)Talk to a Specialist
