Lunt High Resolution Glass Upgrade
Cut Background Glow In Double Stack Systems

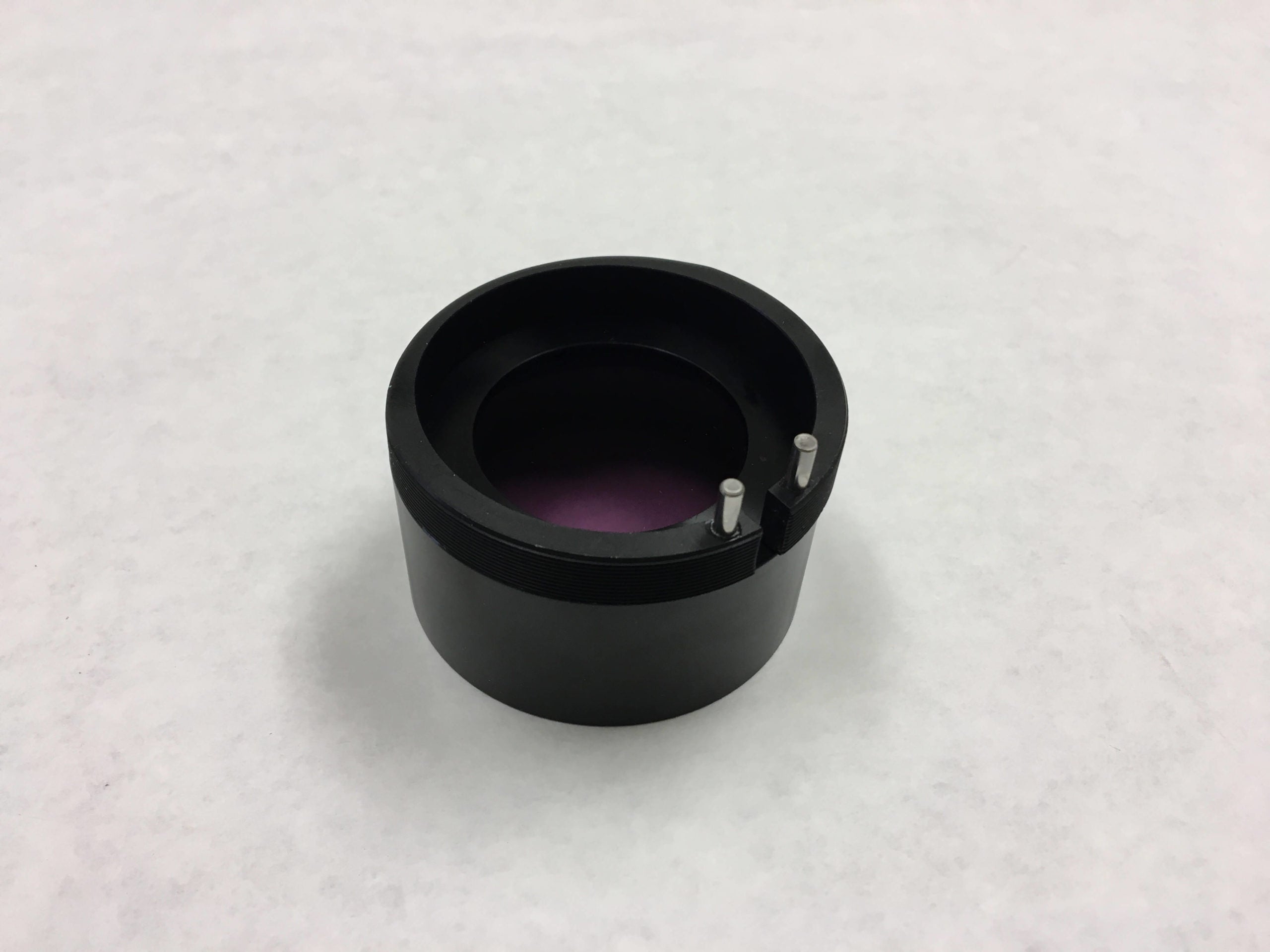

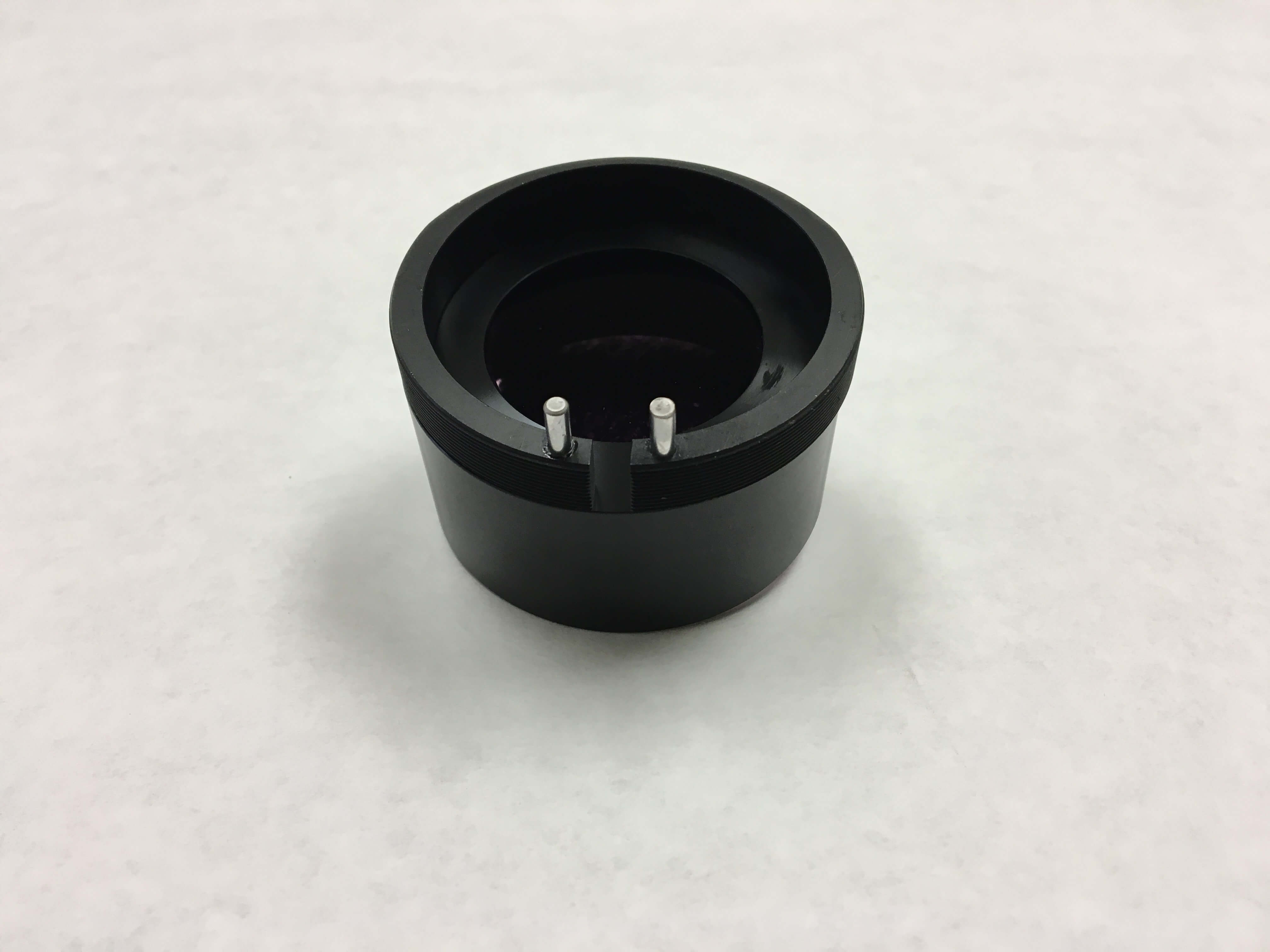

The High Resolution Glass upgrade is an optional element for a Lunt internal double stack system. It targets the faint background glow that internal double stack modules produce, and it does that without changing how the double stack tunes or how narrow the passband becomes. You keep the 0.5 Angstrom or better bandwidth and gain a cleaner background.
Three versions match three double stack systems. The HRG/80 fits the double stack filter on an 80THa. The HRG/100 fits the double stack filter on a 100THa. The HRG/SFPT fits the internal SFPT module used on the 80MT and 100MT universal telescopes. Choose the one that matches the module already on your telescope.
Imagers benefit most. With less scattered light in the field, prominences at the limb separate from the sky background and edge detail holds together at higher stretch. Visual observers see a darker field around the disk as well. Each unit ships at about one pound, so it adds no meaningful load to your mount or your balance.
Key Features
- Lower Background Glow - cuts the faint background glow that is innate to internal double stack systems.
- Built For Imaging - helps prominence and limb detail stand clear of scattered light when you stretch a solar image.
- Three Fitments - arrives as HRG/80 for the 80THa double stack, HRG/100 for the 100THa double stack and HRG/SFPT for the SFPT module.
- Bandwidth Unchanged - leaves the double stack passband intact, so the system still delivers 0.5 Angstrom or better.
- Light Addition - weighs about one pound, so balance and mount load stay effectively the same.
- Optional Upgrade - can be added to a double stack system you already own rather than specified at the time of telescope purchase.
| Specifications | |
|---|---|
| Model / SKU | HRG/80, HRG/100, HRG/SFPT, listed by Lunt as HRG/80DS, HRG/100DS and HRG/SFPT |
| Type | high resolution glass upgrade element for Lunt internal double stack systems |
| HRG/80 | fits the double stack filter on the LS80THa |
| HRG/100 | fits the double stack filter on the LS100THa |
| HRG/SFPT | fits the SFPT internal double stack module on the LS80MT and LS100MT |
| Purpose | reduces the faint background glow inherent to internal double stack systems |
| Bandwidth | unchanged, the host double stack system still delivers 0.5 Angstrom or better |
| Tuning | none, the upgrade carries no tuning control of its own |
| Clear Aperture | Not published |
| Best Suited To | imaging prominence and limb detail, and visual observers who want a darker background |
| Mounting | installs into the existing double stack module or filter |
| Weight | 1 lb shipping weight for each of the three versions |
| What's Included | Not published |
| Warranty | 5 years from date of purchase against manufacturing and workmanship defects |
