Lunt Double Stack Filter for Dedicated Telescopes
Higher Contrast For Dedicated Lunt Solar Telescopes
A dedicated Lunt hydrogen alpha telescope already reaches 0.7 Angstrom or better in single stack. Adding a double stack filter places a second etalon in series and pulls the combined bandwidth to 0.5 Angstrom or better. Lunt publishes tighter figures still on the current 40mm and 152mm systems. The Sun's surface gains contrast immediately.

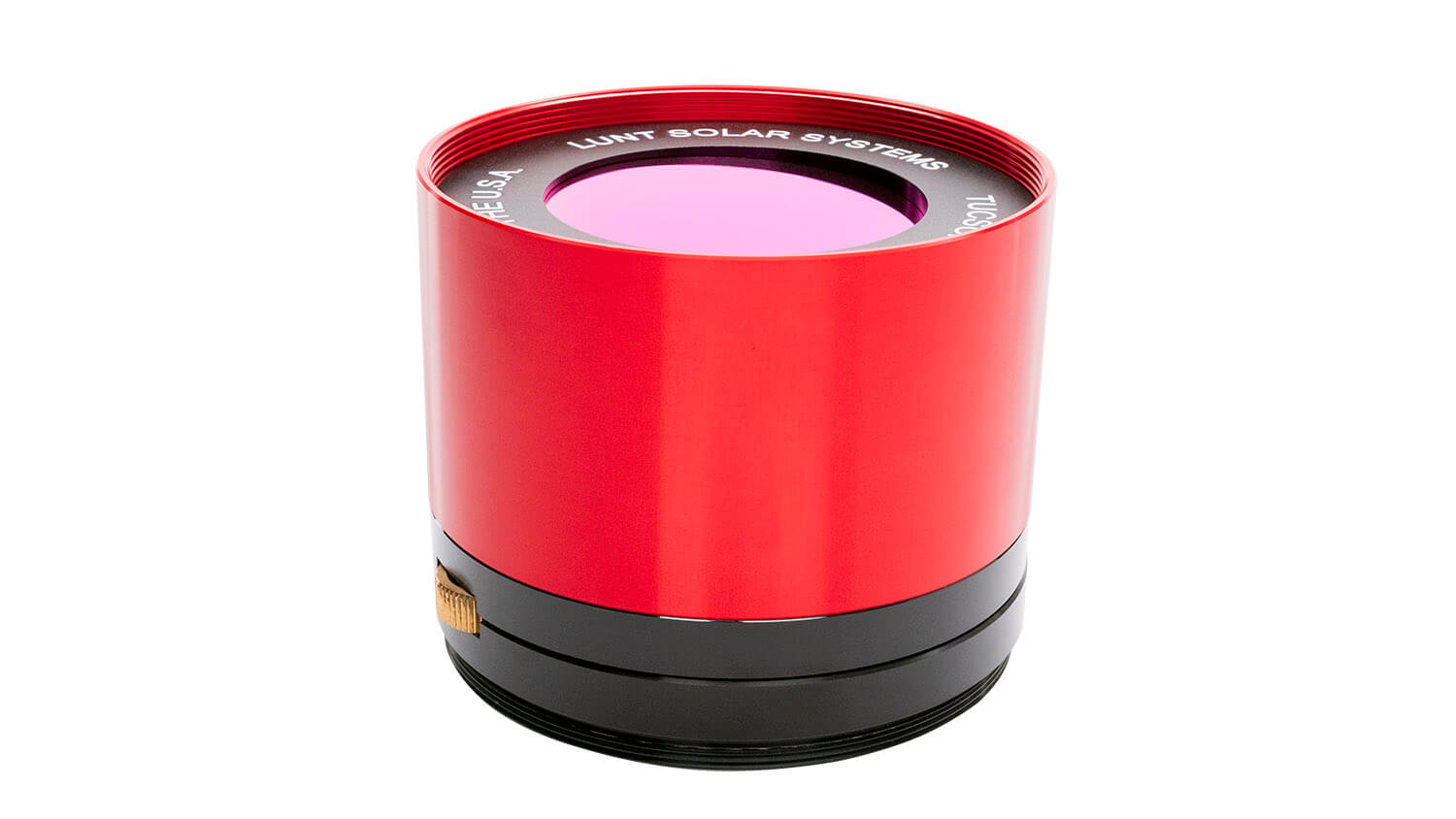

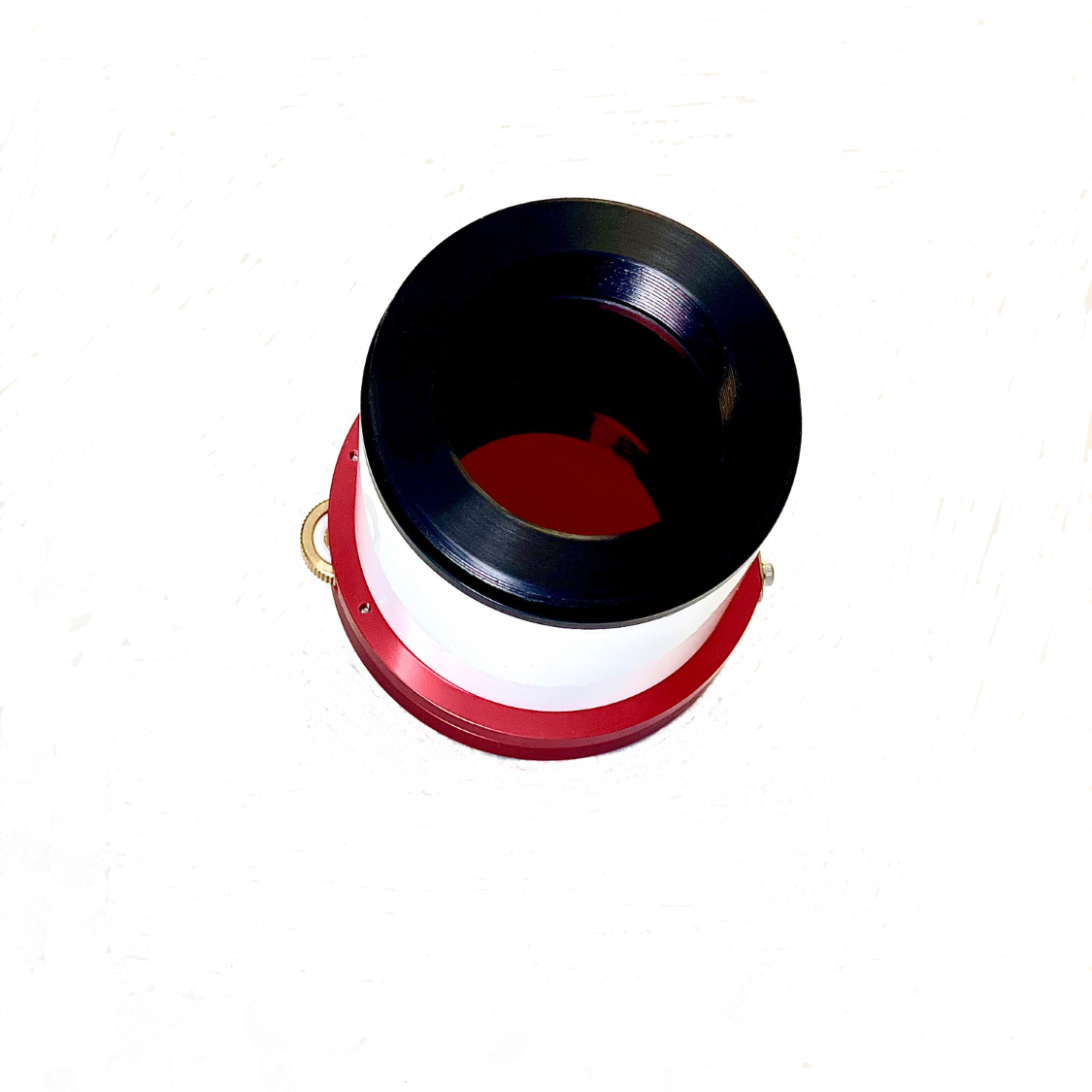

Three versions cover the dedicated range. The LS40FHaP is a 40mm front mounted tilt tuned etalon for the LS40THa, and Lunt lists the pair at under 0.29 Angstrom combined. The LS50CP is a compact 50mm filter that threads onto the front of an LS50THa in seconds. The DSII/LS152T is an internal module for the LS152THa.
Expect filaments to break into dark cores and multiple strands, prominences to show internal threading from base to tip, and plage to separate cleanly from the background chromosphere. A Lunt blocking filter is required at all times, since the double stack filter is not a standalone safety device. Installation needs no tools and no factory return.
Key Features
- Tighter Bandwidth - drops the combined system to 0.5 Angstrom or better, with Lunt publishing under 0.29 Angstrom on the 40mm pairing.
- Model Matched Fit - comes in a version for each dedicated telescope, so the filter mates directly to the LS40THa, LS50THa or LS152THa.
- Tilt Tuned Etalons - uses tilt tuned front mounted etalons on the 40mm and 50mm versions and a pressure tuned internal module on the 152mm.
- Grab And Go Friendly - keeps the compact 50mm system light enough to stay on a photo tripod or a small Vixen compatible mount.
- Tool Free Installation - threads or clamps into place without a factory visit, so the upgrade can wait until you want it.
- Case Included - stores in an aluminium hard case with fitted foam on the front mounted versions.
| Specifications | |
|---|---|
| Model / SKU | LS40FHaP, LS50CP, DSII/LS152T |
| Type | double stack hydrogen alpha etalon filter for dedicated Lunt solar telescopes |
| LS40FHaP 40mm | front mounted 40mm tilt tuned etalon, fits the LS40THa series |
| LS50CP 50mm Compact | compact front mounted 50mm tilt tuned etalon, threads onto the LS50THa front cell |
| DSII/LS152T Internal | internal double stack module, fits the LS152THa |
| Clear Aperture | 40mm or 50mm on the front mounted versions, no central obstruction |
| Bandwidth | 0.5 Angstrom or better combined, with Lunt publishing under 0.29 Angstrom on the LS40THa pairing, about 0.35 Angstrom on current LS50THa telescopes and under 0.28 Angstrom on the LS152 module, and Lunt's own listing for the DSII/LS152T module quoting below 0.5 Angstrom pressure tuned |
| Single Etalon Bandpass | 0.45 Angstrom on the LS40FHa, 0.4 Angstrom on the LS50C and on the LS152 internal module |
| Tuning | tilt tuned on the 40mm and 50mm versions, Doppler True pressure tuning on the internal 152mm module |
| Blocking Filter | required at all times and sold separately, with B500 or B600 suggested for the 40mm and B600 for the 50mm |
| Mounting | threads or clamps onto the telescope front cell, or installs inside the optical path on the 152mm module |
| Installation | customer installed, no tools and no factory return required |
| Weight | LS40FHa 2 lb shipping, LS50C 3 lb shipping, LS152 internal module 7 lb shipping |
| Dimensions | DSII/LS152T internal module 16 x 16 x 12 in shipping, not published for the front mounted versions |
| What's Included | etalon filter assembly and aluminium hard case with fitted foam on the front mounted versions |
| Warranty | 5 years from date of purchase against manufacturing and workmanship defects |
