Lunt Clamshell Mounting Ring
A Heavy Duty Ring For LS60 And LS80 Tubes

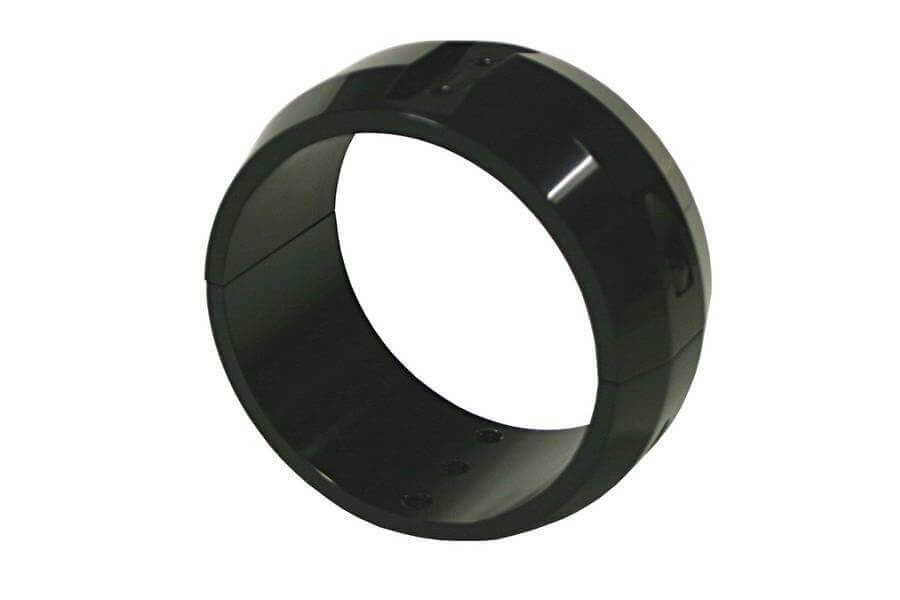

This clamshell mounting ring from Lunt wraps the tube of an LS60THa or LS80THa solar telescope and gives you a solid, adjustable grip for mounting. The black anodized body is built heavy duty, so it holds the scope securely while you slide it fore and aft to balance the load on your mount.
A slot on the top of the ring accepts the Tele Vue Sol-Searcher Sun Finder, so you can add a sighting aid without drilling the tube. The base is tapped 1/4-20, which lets you attach the ring to a dovetail bar, a photo head or any fitting that uses the same thread.
Most LS60THa and LS80THa packages already include this clamshell, so treat it as a spare, a second ring for a two point mounting setup or a replacement. It changes only how the telescope is held. Keep the hydrogen alpha filtration in place, and never aim an unfiltered instrument at the Sun.
Key Features
- Heavy Duty Build - a substantial ring that holds LS60THa and LS80THa tubes without flexing.
- Black Anodized - a durable, low glare finish that matches the rest of the Lunt telescope hardware.
- Sol-Searcher Slot - the top slot accepts the Tele Vue Sol-Searcher Sun Finder with no drilling required.
- 1/4-20 Tapped Base - attaches to dovetail bars, photo heads and other fittings that use the same thread.
- Balance Adjustment - slide the ring along the tube to set balance before you tighten it down.
- Spare Or Replacement - most LS60THa and LS80THa packages ship with this ring, so buy this as a second or replacement.
| Specifications | |
|---|---|
| Type | Clamshell tube mounting ring |
| Model / SKU | CLAM |
| Fits | Lunt LS60THa and LS80THa solar telescopes |
| Material and finish | Black anodized |
| Base thread | 1/4-20 tapped |
| Top slot | Accepts the Tele Vue Sol-Searcher Sun Finder |
| Adjustment | Slides along the tube for balance |
| Inner diameter | Not published |
| Overall dimensions | Not published |
| Included with telescopes | Most LS60THa and LS80THa packages include this ring as standard |
| Hardware included | Not published |
| Shipping weight | 2 lb |
| Manual | Not published |
| Warranty | 5 years from date of purchase, original purchaser, manufacturing and workmanship defects |
