Lunt 80mm Solar Ready Telescope Kit
Eighty Millimeters Of Serious Chromosphere Resolution
The Lunt 80mm Solar Ready Kit is built on the LS80MT, an 80mm ED doublet at 560mm f/7 with an internal pressure tuned etalon rated at a verified 0.65 angstrom bandpass. Doppler True barometric tuning shifts the passband smoothly across the full aperture, so you can move between limb prominences and surface detail without touching the optics.

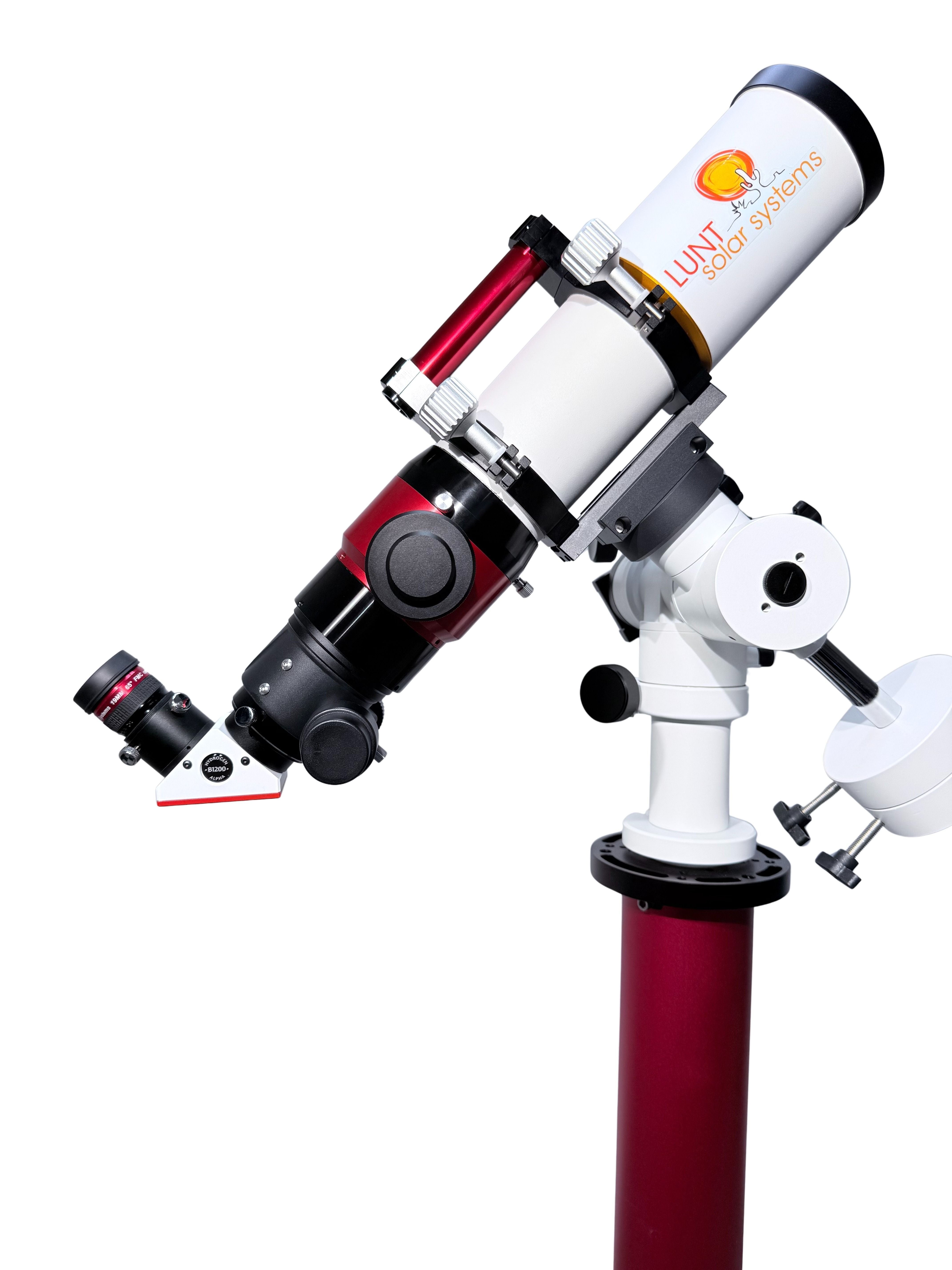

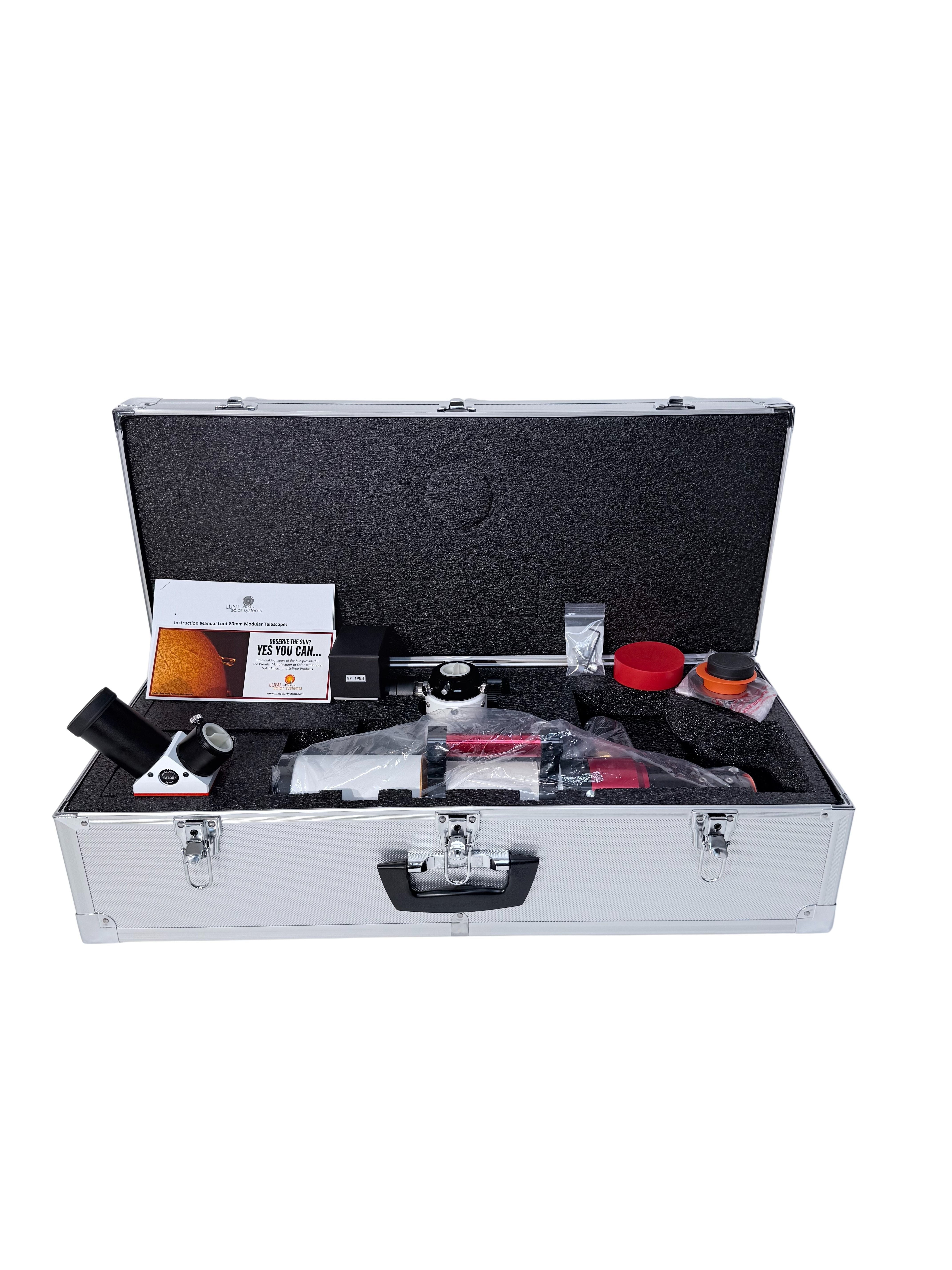

Every trim ships with mounting rings built into a solar handle that carries a permanently aligned red dot sun finder, a 5.5 inch Vixen dovetail, a 2 inch dual speed focuser with 10:1 fine focus and ZWO EAF support, and an aluminium hard case with fitted foam. The Standard trim uses a B1200 filter and a 19mm eyepiece.

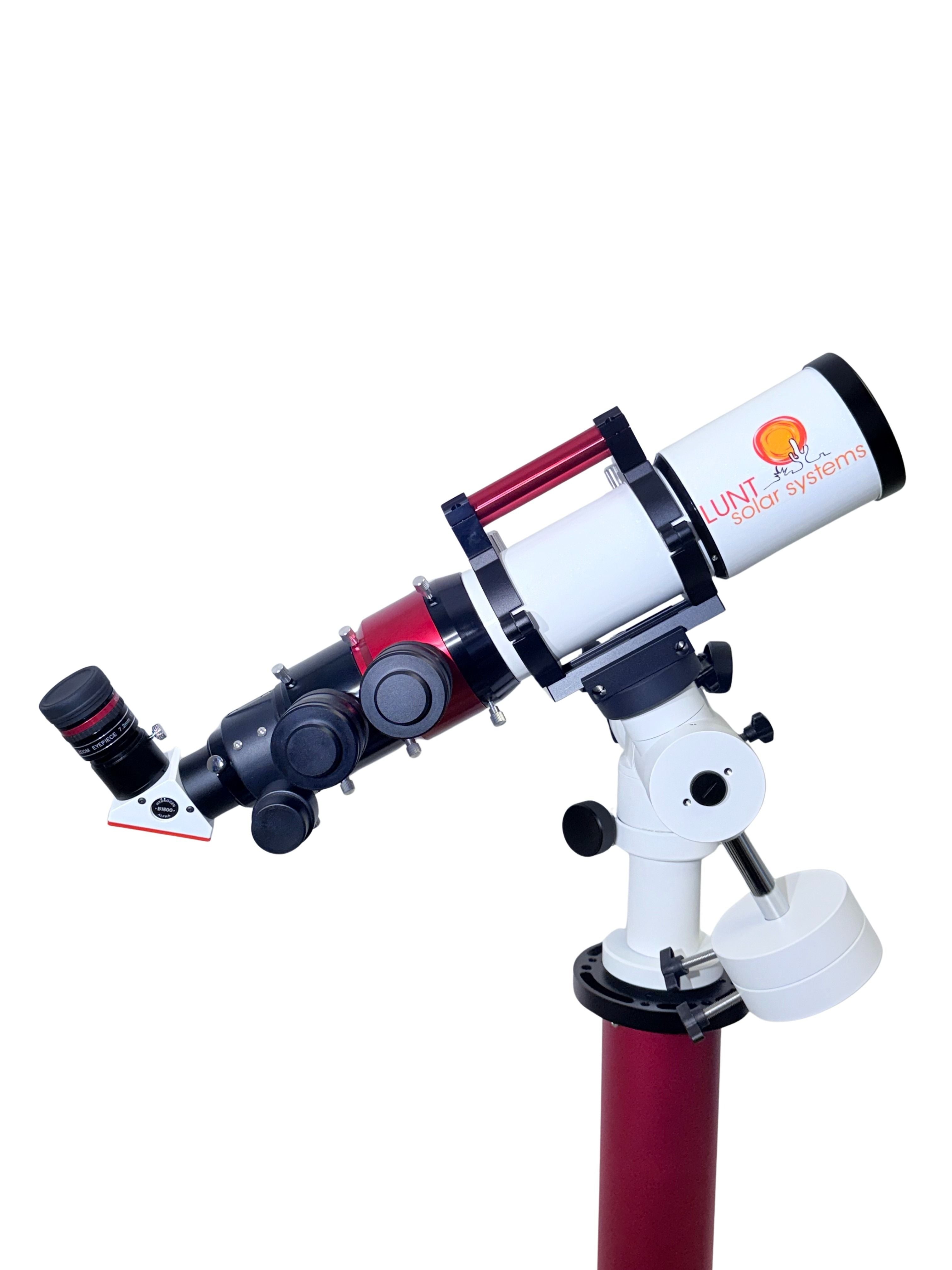

Enhanced upgrades to the B1800 blocking filter with 18mm of clear aperture for full frame sensor coverage, and adds 8mm, 12mm, 16mm and 19mm flat field eyepieces. Premium Plus keeps the B1800 and includes the SFPT internal double stack module, which places two pressure tuned etalons in series for combined bandpass under 0.45 angstroms.
Key Features
- Light Grasp - 80mm of aperture collects roughly four times the light of a 40mm instrument, which shows in prominence and filament structure.
- Internal Double Stack - the SFPT module in Premium Plus keeps both etalons pressure tuned, so alignment holds across the whole adjustment range.
- Full Frame Blocking - the B1800 on Enhanced and Premium Plus gives 18mm of clear aperture for unvignetted full frame sensor coverage.
- Solar Handle - the integrated tube ring assembly carries a permanently aligned red dot finder and doubles as a carry point.
- Motorised Focus - the 2 inch dual speed rack and pinion accepts a ZWO EAF, which matters during long imaging runs.
- Night Conversion - removing the solar module leaves an 80mm f/7 refractor, an FPL53 ED doublet in the Premium Plus configuration.
| Specifications | |
|---|---|
| Optical Design | Universal day and night modular refractor, 80mm ED doublet, removable H-alpha module |
| Aperture | 80mm |
| Focal Length | 560mm |
| Focal Ratio | f/7 |
| Bandwidth | 0.65 angstroms single stack, below 0.45 angstroms double stacked |
| Tuning | Internal pressure tuned, Doppler True barometric, dual independent tuners on Premium Plus |
| Focuser | 2 inch rack and pinion, dual speed 10:1, ZWO EAF compatible, all trims |
| Standard Kit Includes | 80mm ED doublet universal telescope, B1200 blocking filter, rack and pinion focuser, mounting rings, red dot sun finder, 5.5 inch dovetail, 19mm eyepiece, hard case |
| Enhanced Kit Includes | 80mm ED doublet universal telescope, B1800 blocking filter, rack and pinion focuser, mounting rings, red dot sun finder, 5.5 inch dovetail, 8mm plus 12mm plus 16mm plus 19mm eyepieces, hard case |
| Premium Plus Kit Includes | 80mm ED doublet universal telescope, B1800 blocking filter, rack and pinion focuser, SFPT internal double stack filter, mounting rings, red dot sun finder, 5.5 inch dovetail, 7.2 to 21.5mm zoom eyepiece, hard case |
| Objective Glass | f/7 doublet on Standard and Enhanced, FPL53 ED doublet with ion assisted broadband AR coatings on Premium Plus |
| Eyepiece Magnification | 29x to 70x with the flat field set, 26x to 78x with the zoom |
| Night Use | Yes, remove the solar module for an 80mm f/7 refractor |
| Shipping Weight | 35 lb Standard and Enhanced, 42 lb Premium Plus |
| Model / SKU | LS80-STD, LS80-ENH, LS80-PREM |
| Warranty | 5 years from date of purchase, original purchaser |
Manuals
Product Manual (PDF)Talk to a Specialist
