Lunt 50mm Solar Ready Telescope Kit
Pressure Tuned Solar Detail In A Portable 50mm

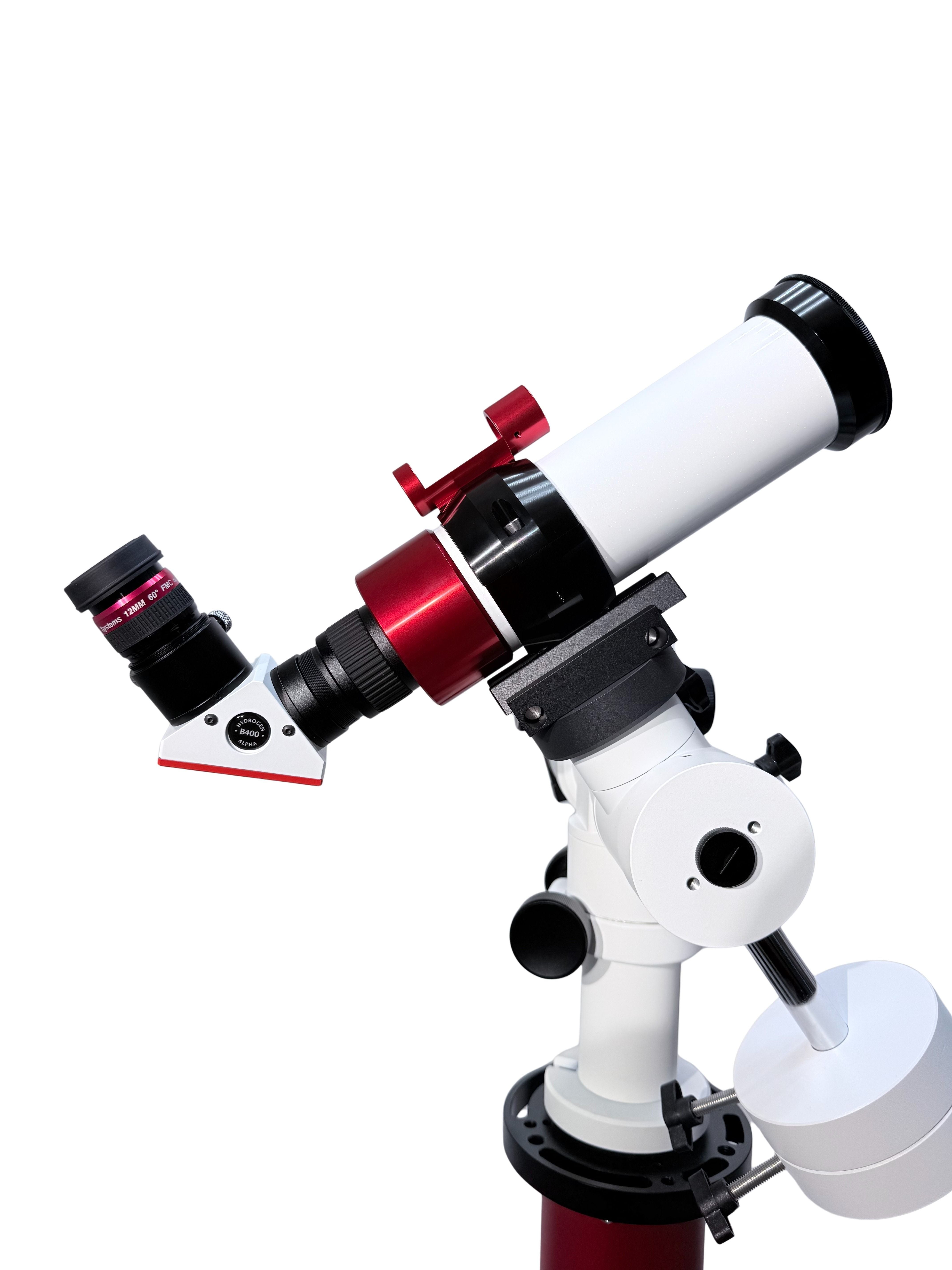

The Lunt 50mm Solar Ready Kit is built on the LS50THa, a 350mm f/7 dedicated hydrogen-alpha telescope with an internal pressure tuned etalon. Lunt rates the bandpass at 0.6 angstroms and the Doppler True barometric tuner lets you shift the passband across the whole aperture, so you can scan the chromosphere at different depths.
An integrated clamshell base carries the SunLock red dot sun finder and the Vixen dovetail, so the tube drops onto a photo tripod or a small equatorial mount without extra hardware. The Standard trim uses a helical focuser and a single 12mm eyepiece. The Enhanced trim adds a rack and pinion focuser and three eyepieces.

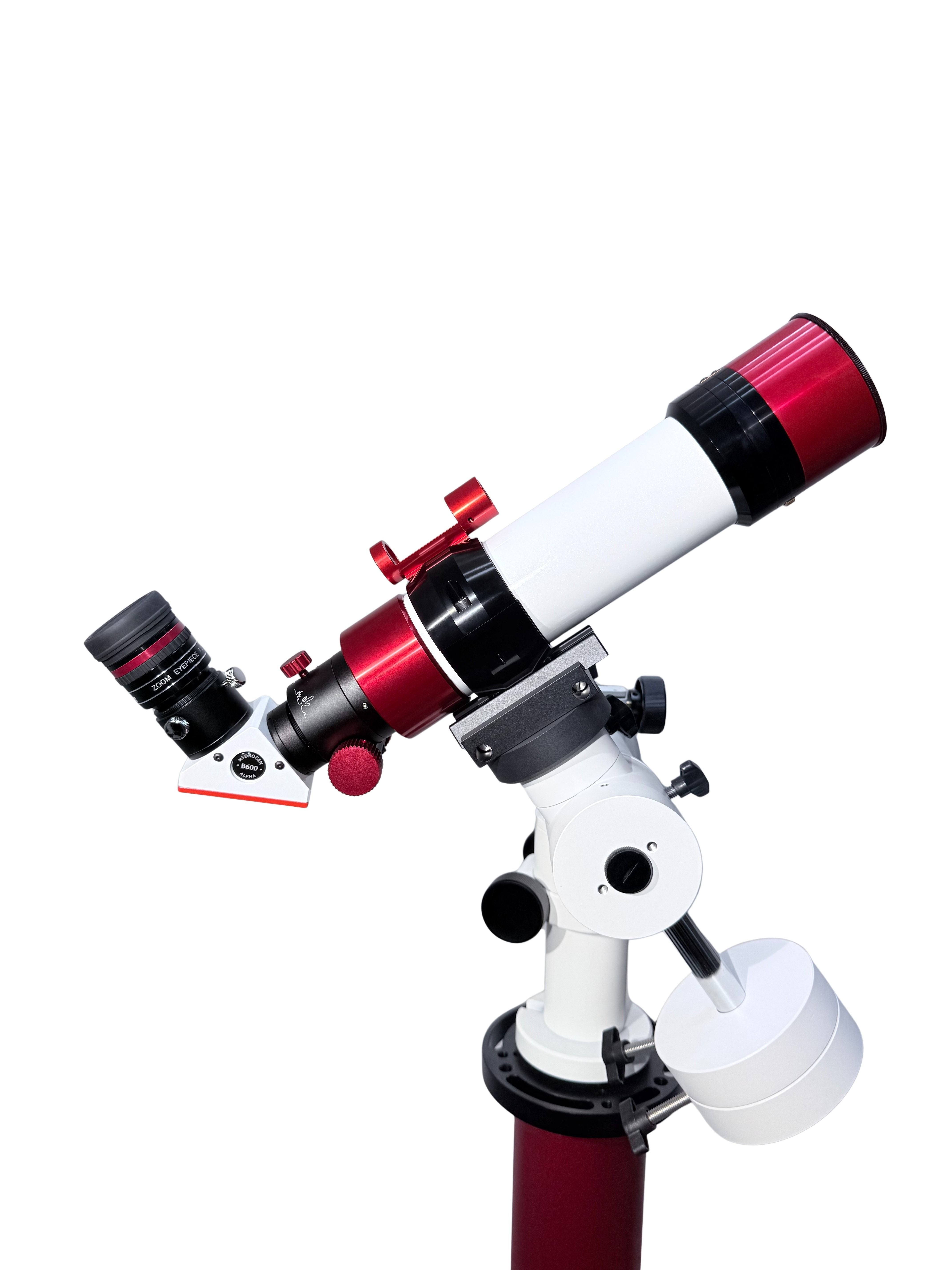

Premium Plus includes the LS50C compact double stack filter, which threads onto the front of the tube without tools and drops combined system bandpass to roughly 0.35 angstroms. You also get a 6 inch dovetail for balance with the filter fitted and a 7.2 to 21.5mm zoom eyepiece in place of fixed focal lengths.
Key Features
- Pressure Tuning - Doppler True barometric tuning shifts the passband evenly over the full aperture with no tilt induced sweet spot.
- Unobstructed 50mm - the clear aperture is fully open, so prominences and filaments hold contrast right to the limb.
- Clamshell Mounting - the integrated base takes the dovetail and the sun finder together, which shortens setup to a couple of minutes.
- Eyepiece Coverage - Enhanced ships 8mm, 12mm and 16mm flat fields for 44x, 29x and 22x, while Premium Plus uses a zoom.
- Double Stack Path - the LS50C threads on in seconds and takes combined bandpass to about 0.35 angstroms, included with Premium Plus.

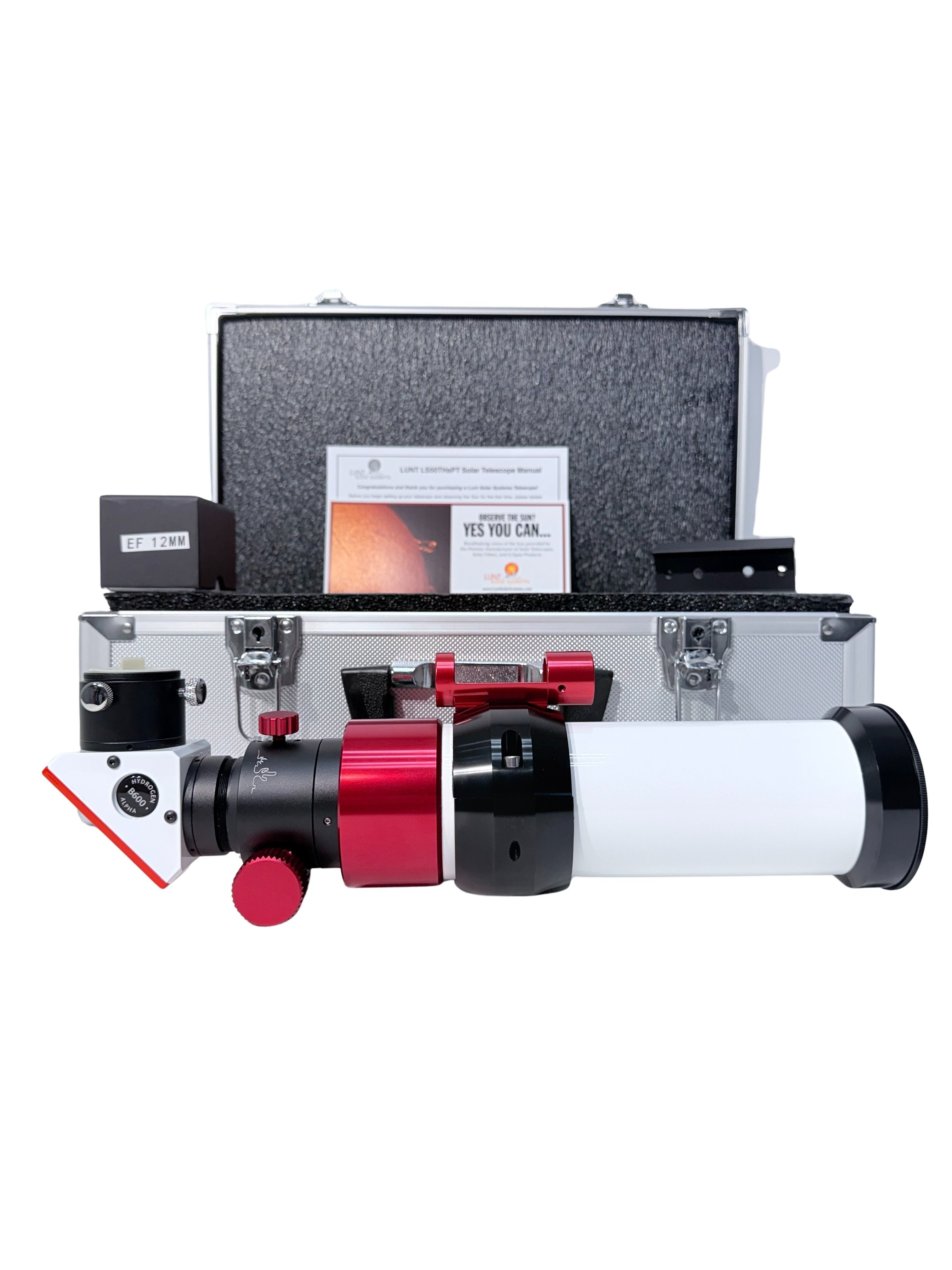

- Travel Protection - a hard case with custom fitted foam is supplied with all three trims for transport and storage.
| Specifications | |
|---|---|
| Optical Design | Dedicated hydrogen-alpha solar refractor with internal pressure tuned etalon |
| Aperture | 50mm, unobstructed |
| Focal Length | 350mm |
| Focal Ratio | f/7 |
| Bandwidth | 0.6 angstroms single stack, approximately 0.35 angstroms double stacked |
| Tuning | Internal pressure tuned, Doppler True barometric |
| Blocking Filter | B600, 6mm clear aperture, all trims |
| Standard Kit Includes | 50mm Ha telescope, B600 blocking filter, helical focuser, SunLock sun finder, 4 inch dovetail, 12mm eyepiece, hard case |
| Enhanced Kit Includes | 50mm Ha telescope, B600 blocking filter, 1:1 rack and pinion focuser, SunLock sun finder, 4 inch dovetail, 8mm plus 12mm plus 16mm eyepieces, hard case |
| Premium Plus Kit Includes | 50mm Ha telescope, B600 blocking filter, 1:1 rack and pinion focuser, LS50C double stack filter, SunLock sun finder, 6 inch dovetail, 7.2 to 21.5mm zoom eyepiece, hard case |
| Focuser | Helical on Standard, 1.25 inch CNC rack and pinion 1:1 with brake on Enhanced and Premium Plus |
| Eyepiece Magnification | 22x to 44x with the flat field set, 16x to 49x with the zoom |
| Day Or Night Use | Daytime solar use only, dedicated hydrogen-alpha instrument |
| Shipping Weight | 16 lb Standard and Enhanced, 18 lb Premium Plus |
| Model / SKU | LS50-STD, LS50-ENH, LS50-PREM |
| Warranty | 5 years from date of purchase, original purchaser |
