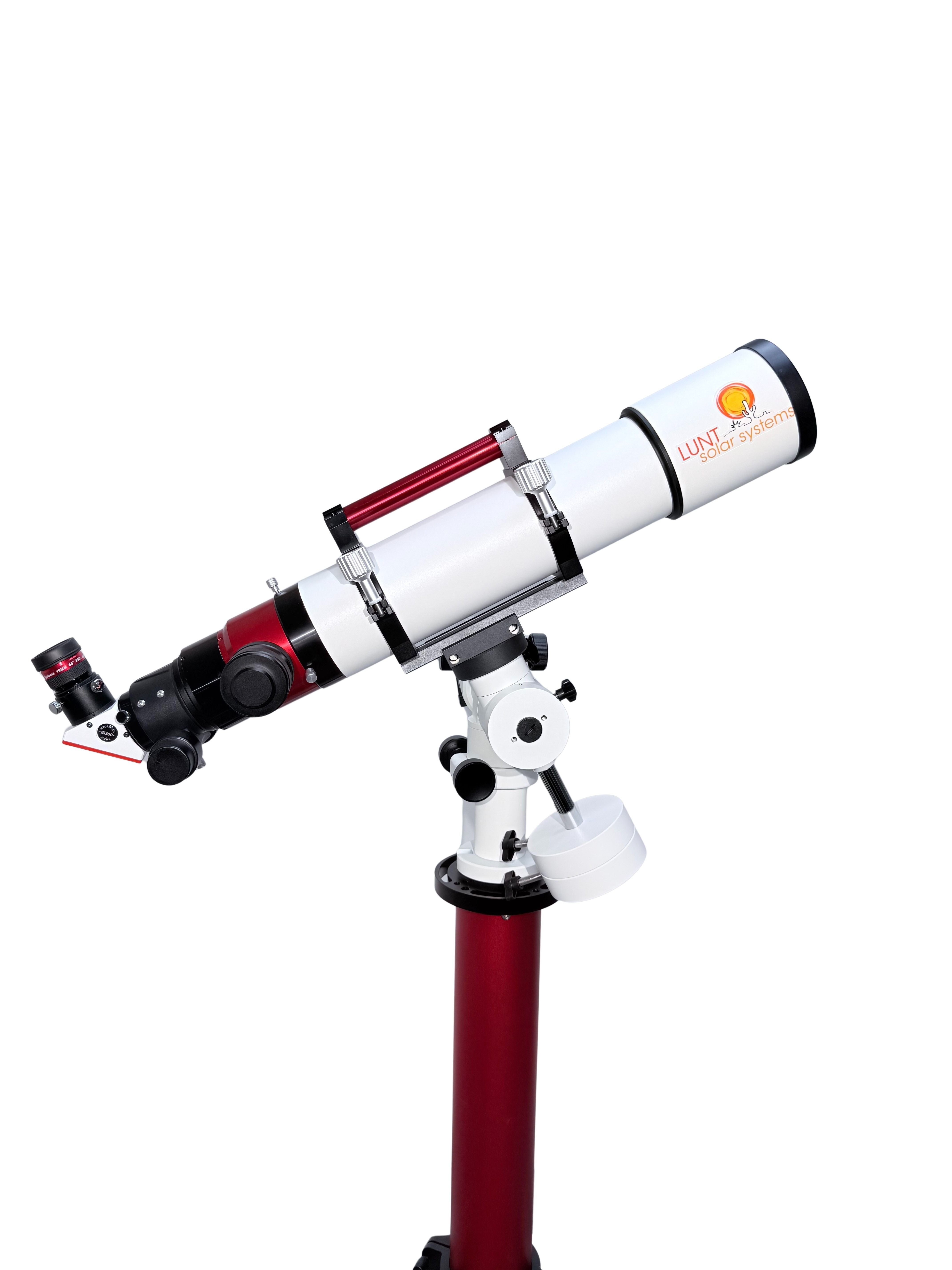

Lunt 100mm Solar Ready Telescope Kit
Observatory Class Aperture You Can Still Carry
The Lunt 100mm Solar Ready Kit brings observatory class aperture to a tube you can still carry. Lunt lists the Standard trim as a 102mm f/6.5 doublet at 663mm focal length, while the Enhanced and Premium Plus trims are listed as the LS100MT with an FPL53 ED triplet at f/7. All three use an internal pressure tuned etalon.
The etalon is rated at a verified 0.45 angstrom bandpass with Doppler True barometric tuning, so you can shift the passband across the whole aperture while observing. Shared hardware across the range includes mounting rings with a solar handle and red dot sun finder, an 8 inch Vixen dovetail, a 2 inch 10:1 focuser and a hard case.
Standard pairs a B1200 blocking filter with a single 19mm flat field eyepiece. Enhanced moves to the B1800 with 18mm of clear aperture and adds 8mm, 12mm, 16mm and 19mm eyepieces. Premium Plus keeps the B1800 and includes the SFPT internal double stack module for a combined system bandpass below 0.28 angstroms, plus a zoom eyepiece.
Key Features
- Aperture Advantage - 100mm collects over six times the light of a 40mm instrument, so structure reads as detail rather than texture.
- Premium Triplet Glass - the LS100MT trims use an FPL53 ED triplet with ion assisted broadband AR coatings for colour correction day and night.

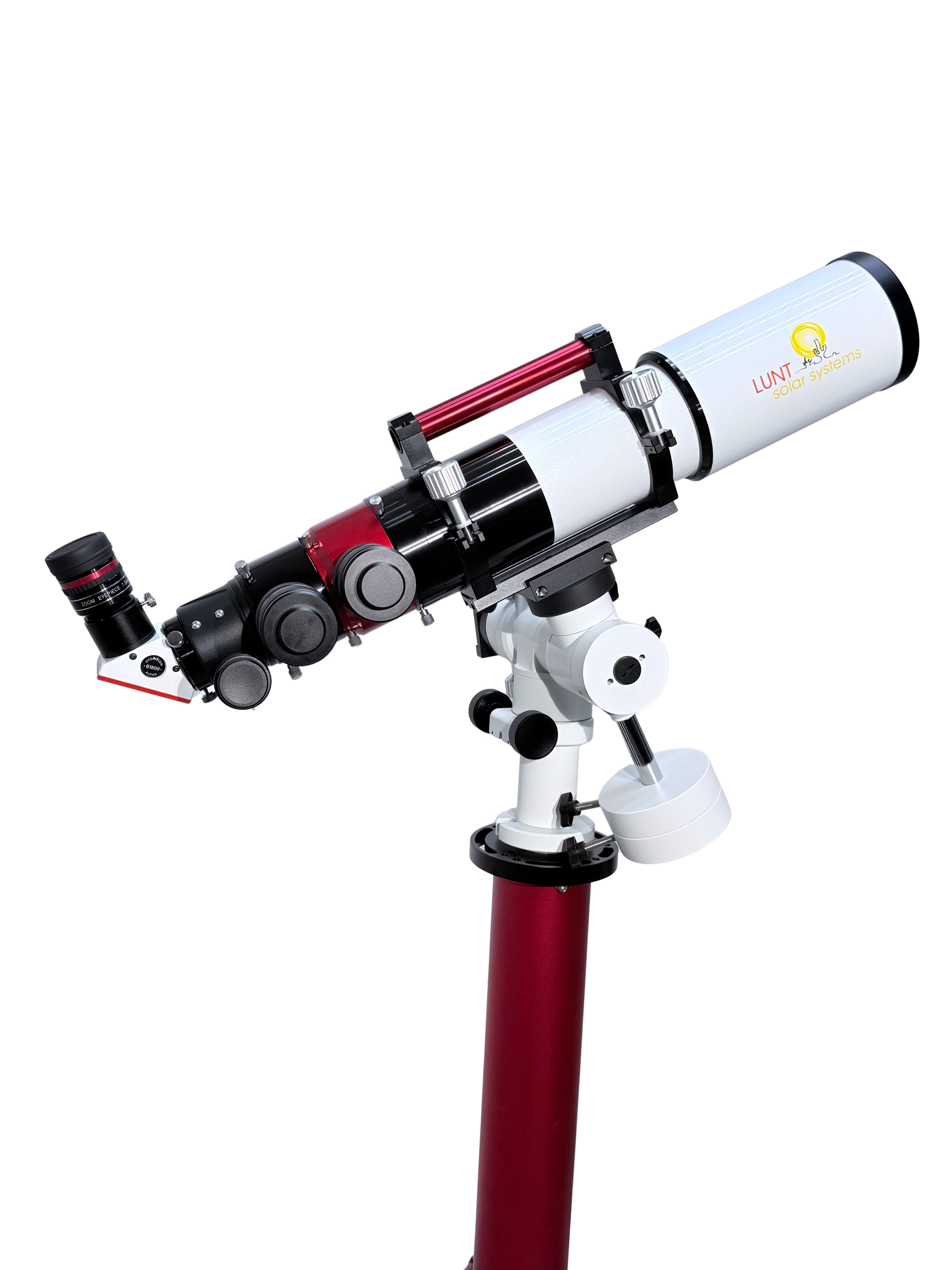

- Internal Double Stack - the SFPT module in Premium Plus runs two independently pressure tuned etalons in series, below 0.28 angstroms combined.
- Full Frame Imaging - the B1800 blocking filter on Enhanced and Premium Plus illuminates full frame sensors without vignetting.
- Balanced Mounting - an 8 inch Vixen dovetail gives the rail length this aperture needs on equatorial and alt-az mounts.
- Night Time Refractor - lift out the H-alpha module and the same tube becomes a 100mm f/7 refractor for lunar, planetary and deep sky use.
| Specifications | |
|---|---|
| Optical Design | Universal day and night modular refractor with removable H-alpha module |
| Aperture | 102mm on Standard, 100mm on Enhanced and Premium Plus |
| Focal Length | 663mm on Standard, 714mm on Enhanced and Premium Plus |
| Focal Ratio | f/6.5 on Standard, f/7 on Enhanced and Premium Plus |
| Bandwidth | 0.45 angstroms single stack, below 0.28 angstroms double stacked |
| Tuning | Internal pressure tuned, Doppler True barometric, dual independent tuners on Premium Plus |
| Objective Glass | f/6.5 doublet on Standard, FPL53 ED triplet with ion assisted broadband AR coatings on Enhanced and Premium Plus |
| Focuser | 2 inch rack and pinion, dual speed 10:1, ZWO EAF compatible, all trims |
| Standard Kit Includes | 100mm ED doublet universal telescope, B1200 blocking filter, rack and pinion focuser, mounting rings, red dot sun finder, 8 inch dovetail, 19mm eyepiece, hard case |
| Enhanced Kit Includes | 100mm universal telescope, B1800 blocking filter, rack and pinion focuser, mounting rings, red dot sun finder, 8 inch dovetail, 8mm plus 12mm plus 16mm plus 19mm eyepieces, hard case |
| Premium Plus Kit Includes | 100mm universal telescope, B1800 blocking filter, rack and pinion focuser, SFPT internal double stack filter, mounting rings, red dot sun finder, 8 inch dovetail, 7.2 to 21.5mm zoom eyepiece, hard case |
| Eyepiece Magnification | Approximately 37x to 87x with the flat field set, approximately 35x with the 19mm on the Standard trim |
| Night Use | Yes, remove the solar module for a 100mm refractor |
| Shipping Weight | 40 lb Standard and Enhanced, 48 lb Premium Plus |
| Model / SKU | LS100-STD, LS100MT-ENH, LS100MT-PREM |
| Warranty | 5 years from date of purchase, original purchaser |
