Explore Scientific ED80 FCD100 Series 80mm apochromatic triplet refractor telescope with field flattener

ED80-FCD100 Series Air-Spaced Triplet Refractor Telescope and Field Flattener f/5 to f/7

by Explore Scientific
$799.99

Notify me when back in stock

An 80mm FCD100 Triplet Bundled with a Dedicated Field Flattener

This fast f/6 refractor pairs genuine HOYA FCD100 extra-low dispersion glass with an air-spaced triplet lens system and fully multi-coated optics for superior color correction and sharpness in a compact 80mm package.

Designed for both astrophotography and visual observation, the tube comes bundled with a dedicated field flattener optimized for f/5 to f/7 focal ratios, correcting field curvature and reducing coma for cleaner stars across the frame.

The 2.5-inch hexagonal focuser supports up to 10 lbs of imaging gear, and the kit includes two extension tubes and a dew shield so you can start imaging right out of the box.

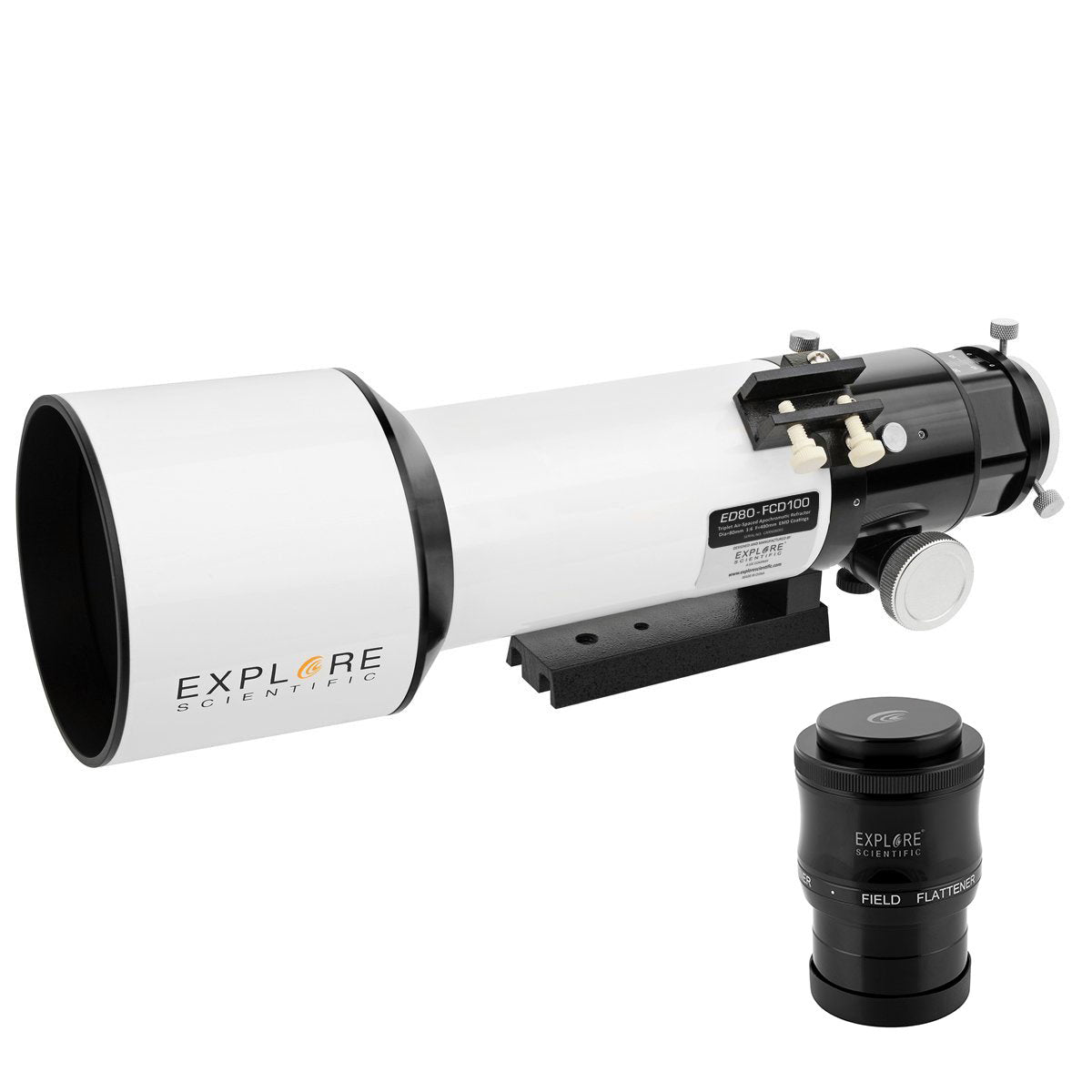

Explore Scientific ED80 FCD100 Series 80mm apochromatic triplet refractor telescope with field flattener

Key Features

  • 80mm Air-Spaced Triplet - genuine HOYA FCD100 extra-low dispersion glass for superior color correction
  • Fast f/6 Focal Ratio - 480mm focal length for wide-field imaging and visual use
  • Dedicated Field Flattener - optimized for f/5 to f/7, corrects field curvature and coma
  • 2.5-Inch Hexagonal Focuser - supports up to 10 lbs of imaging equipment
  • Fully Multi-Coated Optics - enhanced light transmission for bright, high-contrast views
  • Includes Extension Tubes and Dew Shield - ready for imaging out of the box

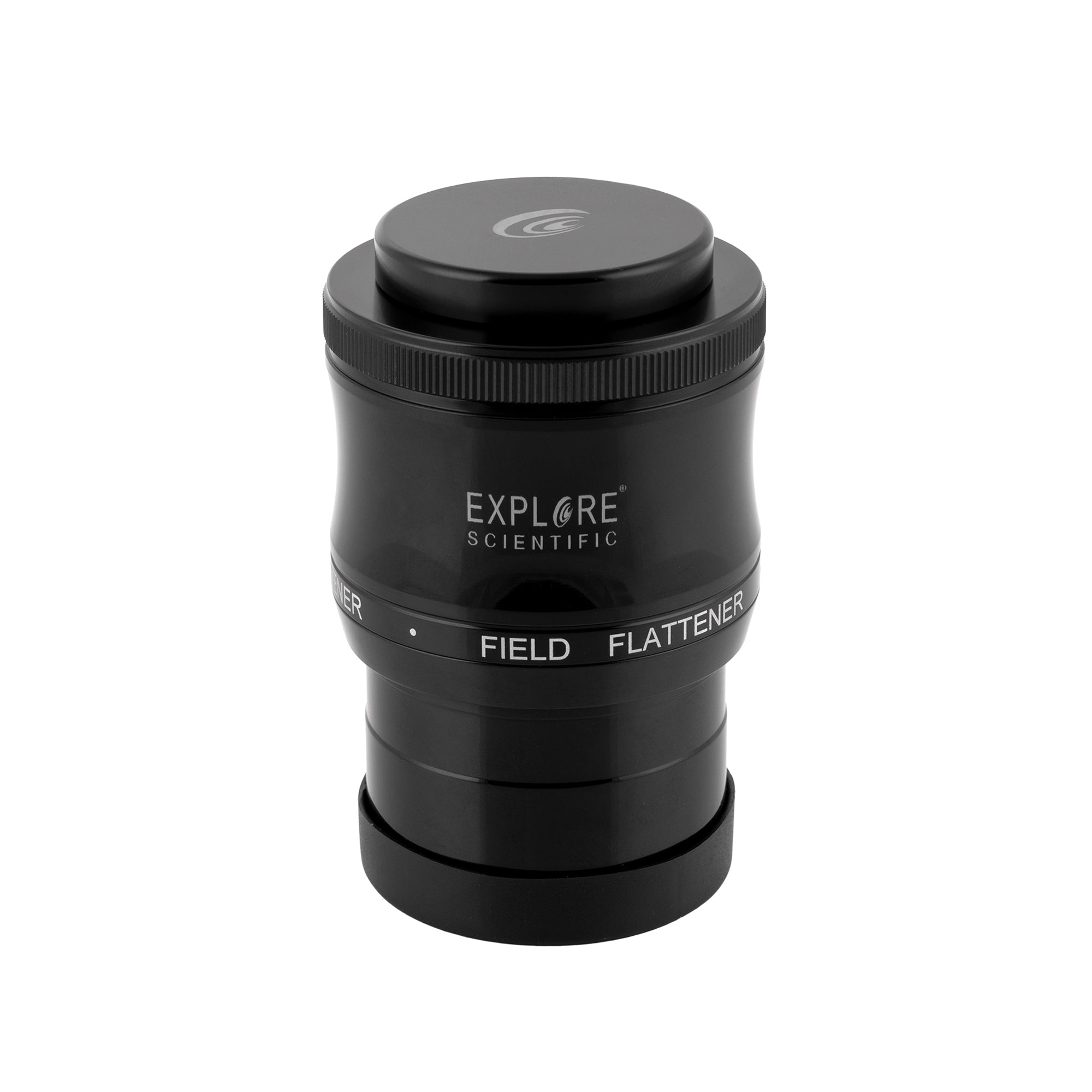

Explore Scientific ED80 FCD100 field flattener f/5 to f/7
Specifications
Optical Design Air-Spaced Triplet (FCD100 ED Glass, Apochromatic Refractor)
Aperture 80mm
Focal Length 480mm
Focal Ratio f/6
Limiting Magnitude 12
Resolution 1.45 arcsec
Tube Diameter 85mm
Tube Length (with dew shield) 18.5 in / 475mm
Tube Length (without dew shield) 15 in / 381mm
Focuser 2.5-Inch Hexagonal (Supports up to 10 lbs)
Mount Type Vixen-Style Dovetail (OTA Only)
Field Flattener ES-FF2 (f/5 to f/7), Requires 55mm +/-2mm Sensor Spacing
Included Accessories Field Flattener, Two Extension Tubes, Dew Shield
Model / SKU ES-FCD100-0806-FF
Weight 7.5 lbs
Warranty Limited warranty, activated with registration within 60 days of purchase
