Lunt 40mm Solar Ready Telescope Kit
Grab And Go Hydrogen Alpha In Three Trims

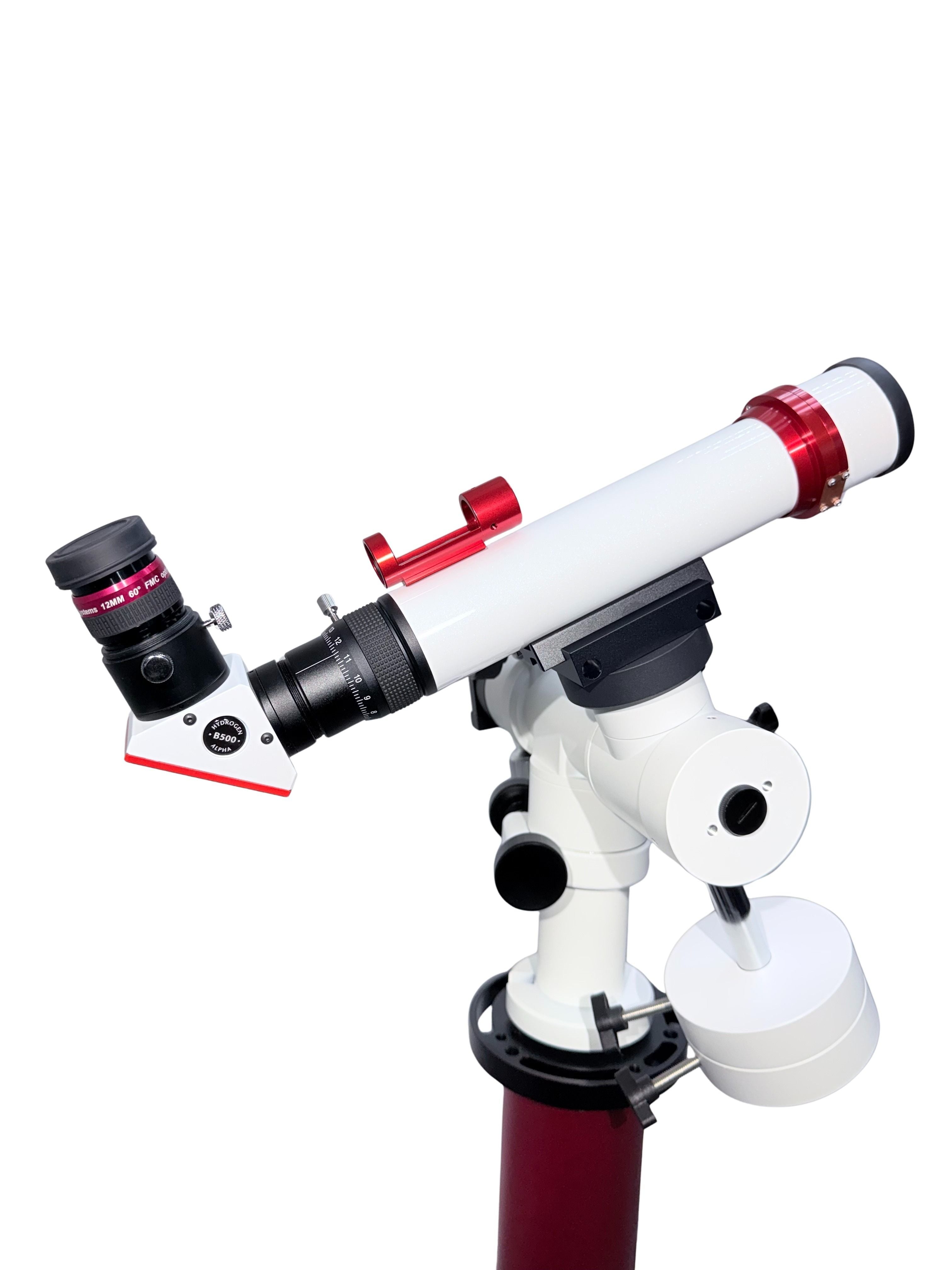

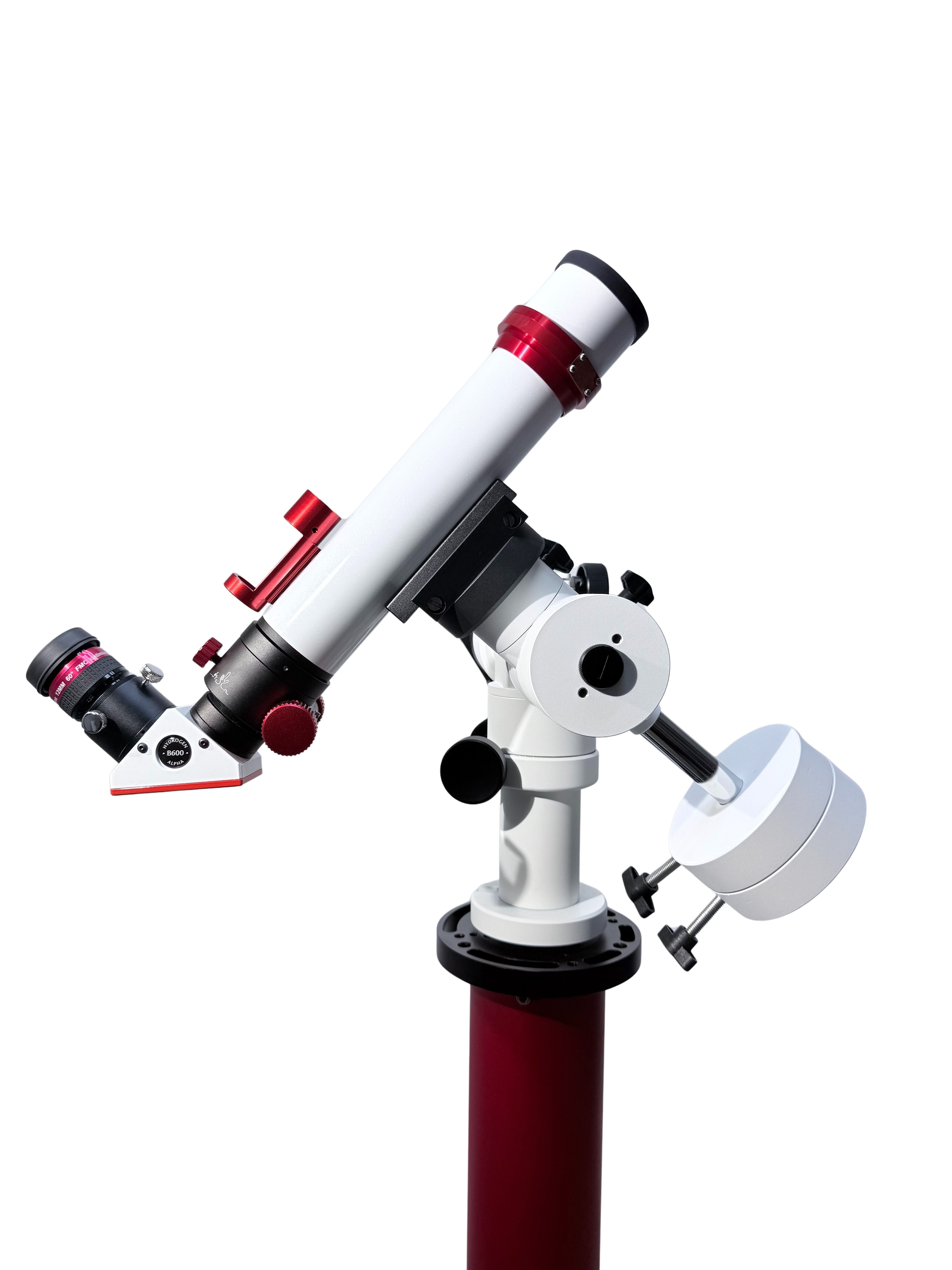

The Lunt 40mm Solar Ready Kit builds every trim around the LS40THa optical tube, a 400mm f/10 dedicated hydrogen-alpha telescope with a front mounted tilt tuned etalon. Lunt publishes a verified 0.45 angstrom bandpass measured on metrology equipment rather than estimated, and the full 40mm aperture stays unobstructed so contrast holds right across the solar disk.
Choose the trim that matches how you observe. The Standard configuration pairs a B600 blocking filter with a mini helical focuser, a 4 inch dovetail and a 12mm eyepiece. The Enhanced trim swaps in a 1:1 rack and pinion focuser for smoother travel and a positive brake. Every trim ships in a fitted hard case.

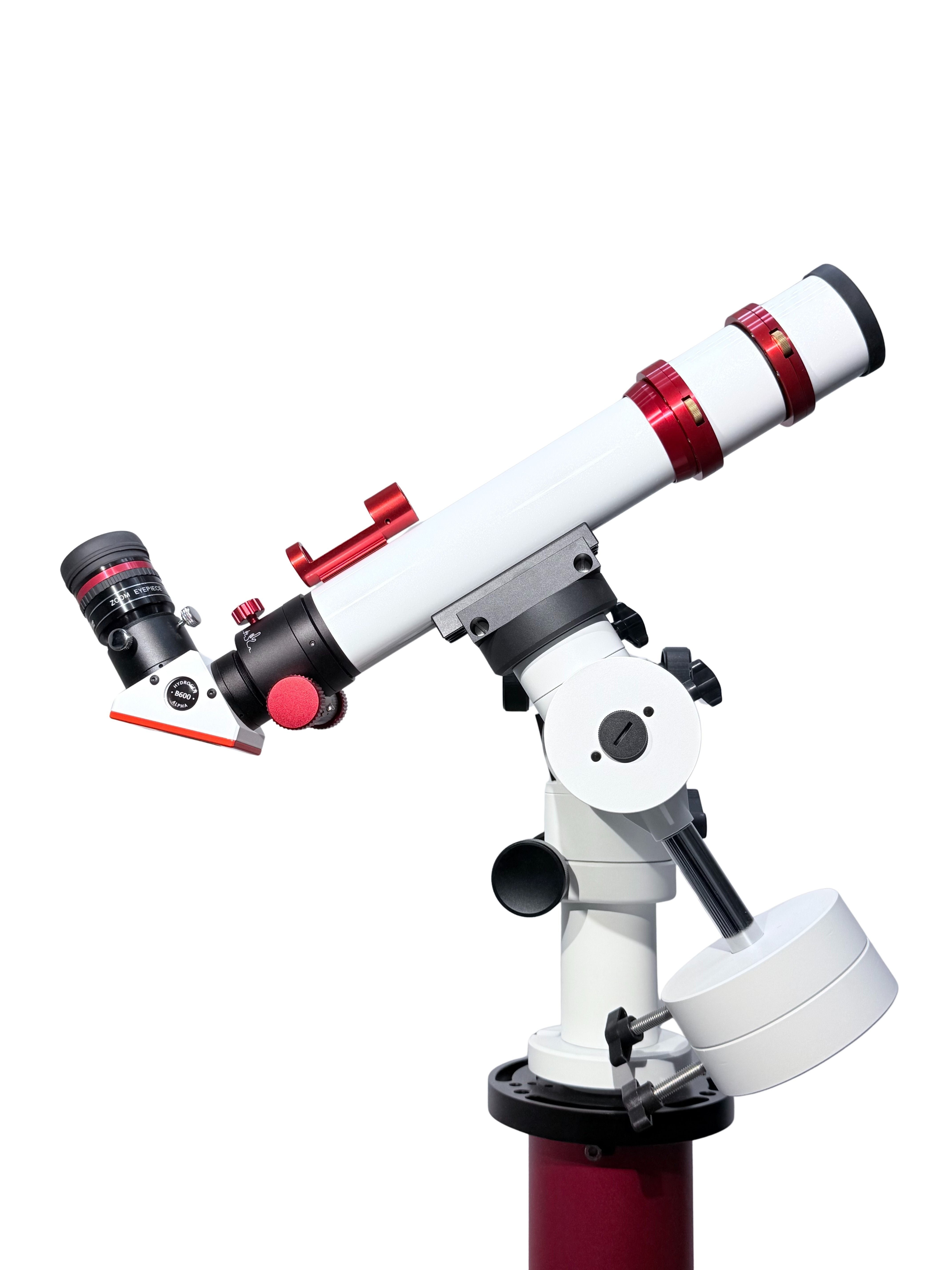

Step up to Premium Plus and you add the LS40FHa double stack filter, which places a second etalon in series and brings combined system bandpass below 0.29 angstroms. That trim also carries a 6 inch dovetail for balance with the filter fitted, plus a 7.2 to 21.5mm zoom eyepiece covering roughly 19x to 56x.
Key Features
- Verified Bandpass - each etalon is measured on Lunt metrology equipment, so the 0.45 angstrom figure is tested rather than estimated.
- Unobstructed Aperture - the full 40mm clear aperture works with no central obstruction sitting in the light path.
- Genuinely Portable - the optical tube weighs about 2.6 pounds, so a light photo tripod or small alt-az mount carries it easily.
- Focuser Choice - helical on the Standard trim, or a 1:1 rack and pinion with integrated brake on Enhanced and Premium Plus.
- Double Stack Ready - adding the LS40FHa brings combined bandpass under 0.29 angstroms, and that filter is included with Premium Plus.

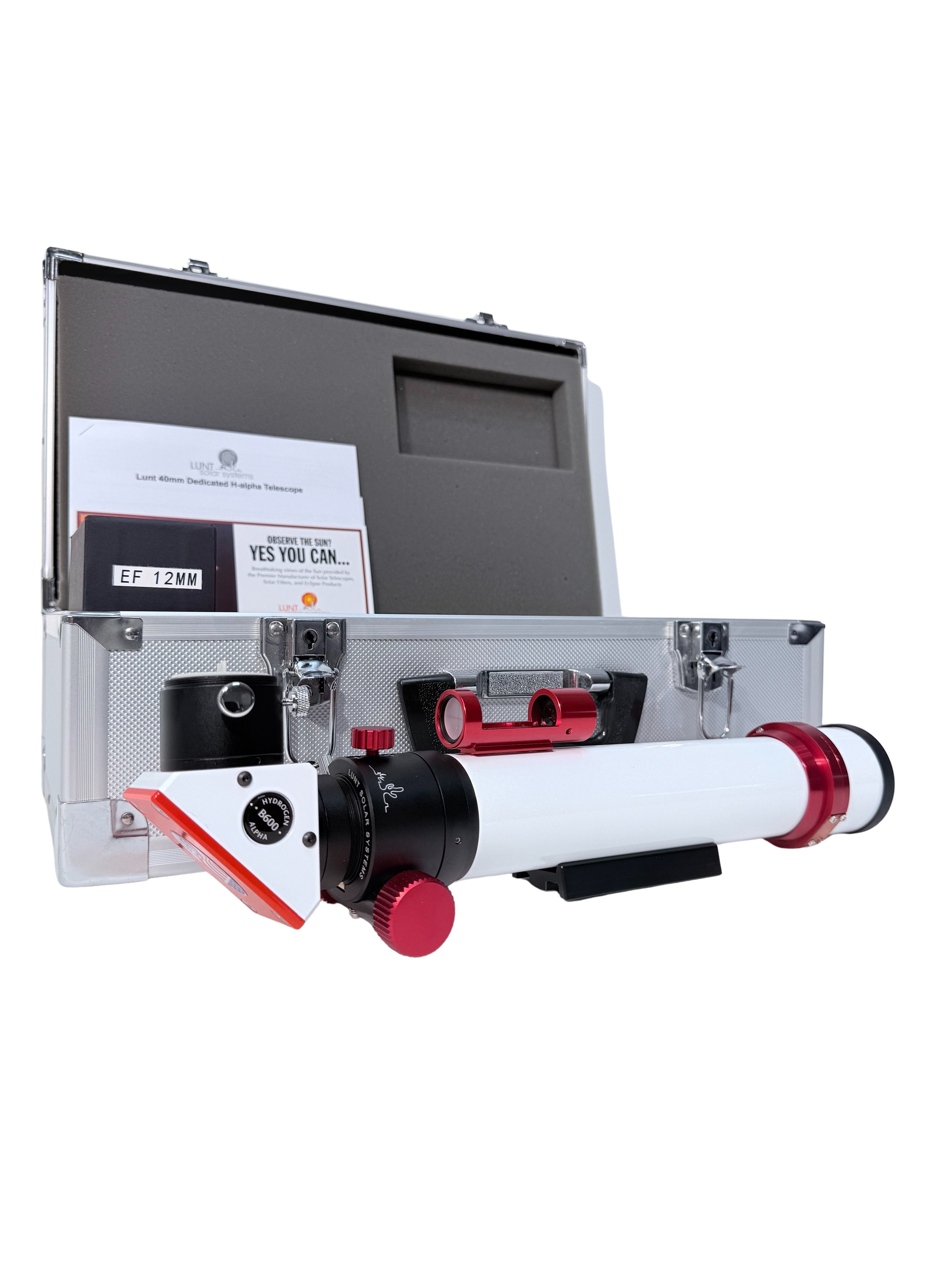

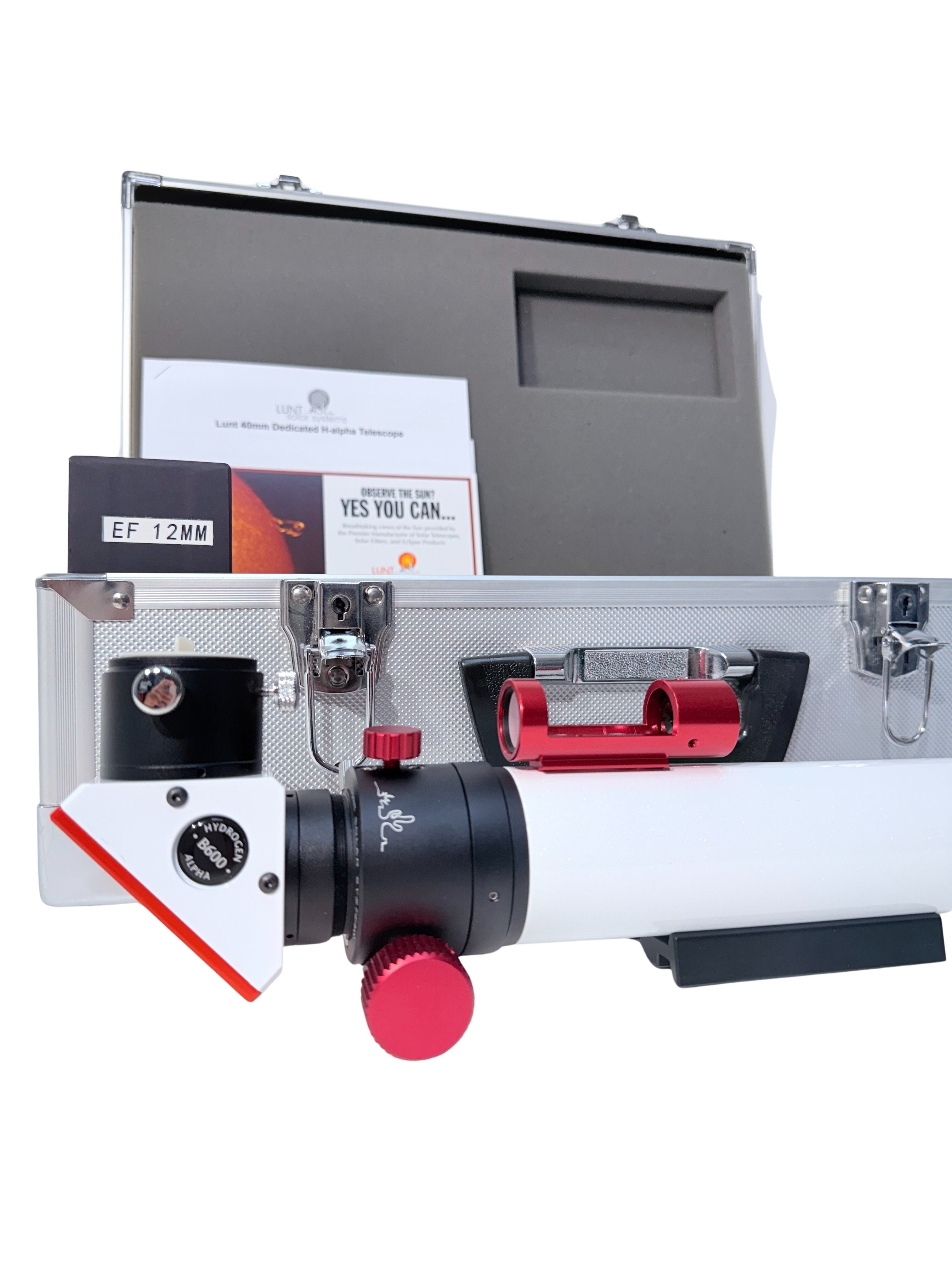

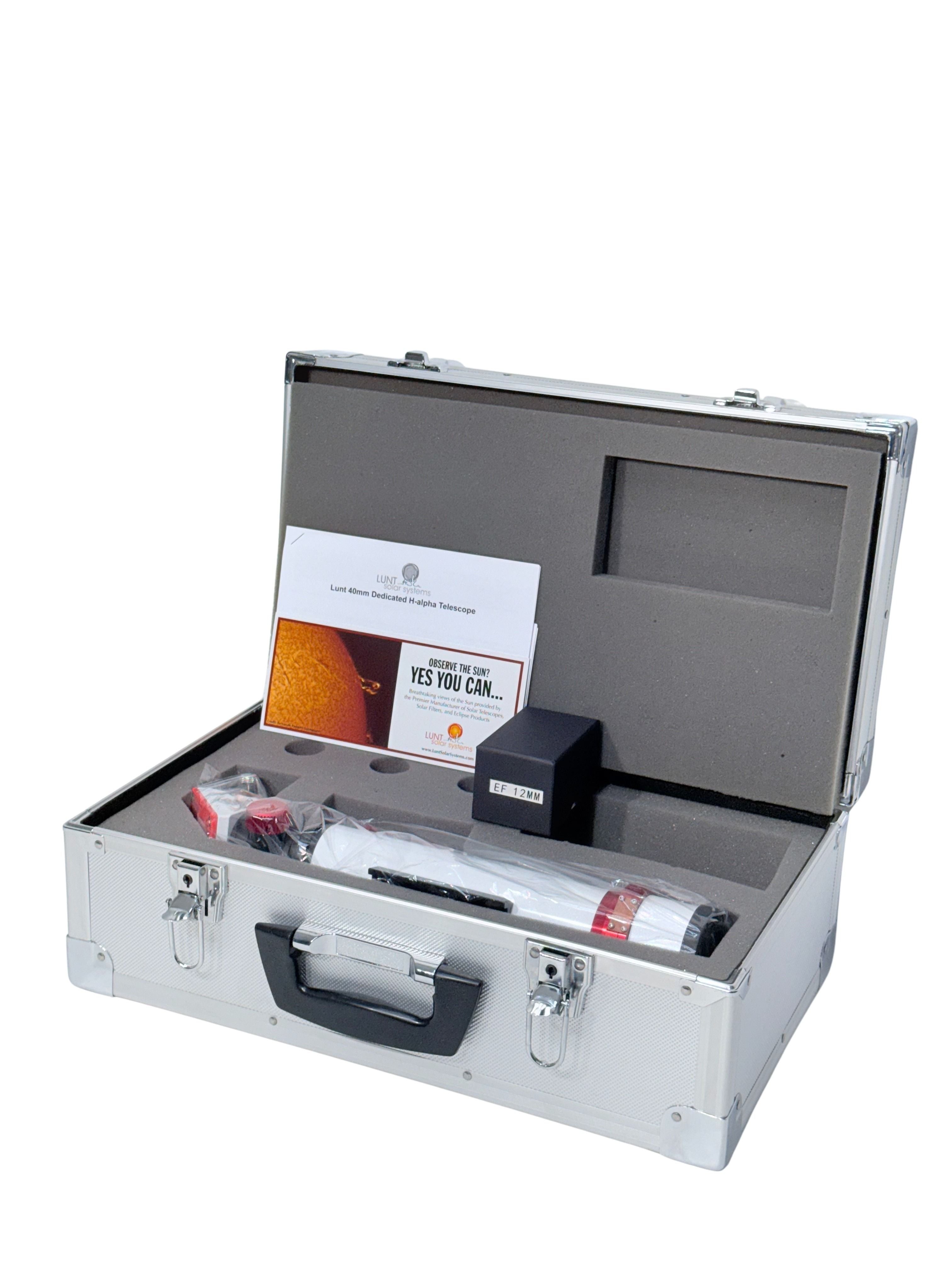

- Hard Case Included - an 18.5 by 10.5 by 7 inch aluminium case with custom fitted foam holds every component for transport.
| Specifications | |
|---|---|
| Optical Design | Dedicated hydrogen-alpha solar refractor, front mounted tilt tuned etalon |
| Aperture | 40mm, full unobstructed |
| Focal Length | 400mm |
| Focal Ratio | f/10 |
| Bandwidth | 0.45 angstroms single stack, below 0.29 angstroms double stacked |
| Tuning | Tilt tuned front mounted etalon |
| Blocking Filter | B600, 6mm clear aperture, all trims |
| Standard Kit Includes | 40mm Ha telescope, B600 blocking filter, mini helical focuser, SunLock sun finder, 4 inch dovetail, 12mm eyepiece, hard case |
| Enhanced Kit Includes | 40mm Ha telescope, B600 blocking filter, 1:1 rack and pinion focuser, SunLock sun finder, 4 inch dovetail, 12mm eyepiece, hard case |
| Premium Plus Kit Includes | 40mm Ha telescope, B600 blocking filter, 1:1 rack and pinion focuser, LS40FHa double stack filter, SunLock sun finder, 6 inch dovetail, 7.2 to 21.5mm zoom eyepiece, hard case |
| Eyepiece Magnification | 33x with the 12mm flat field, 19x to 56x with the zoom |
| Day Or Night Use | Daytime solar use only, dedicated hydrogen-alpha instrument |
| Shipping Weight | 8 lb Standard and Enhanced, 10 lb Premium Plus |
| Model / SKU | LS40-STD, LS40-ENH, LS40-PREM |
| Warranty | 5 years from date of purchase, original purchaser |
